L28D1EHN1 Series
Manufacturer: Carling Technologies
Beta
⌘K

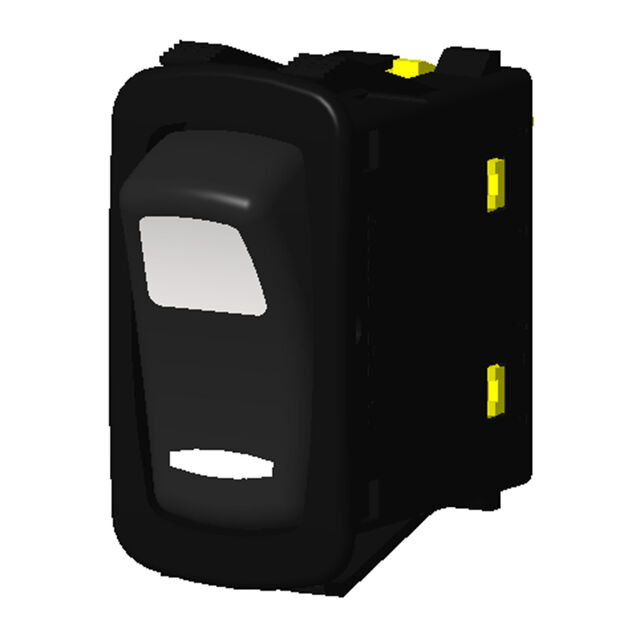

SWITCH ROCKER DPDT 20A 12V
| Part | Electrical Life | Mechanical Life | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Color - Actuator/Cap | Actuator Marking | Actuator Type | Termination Style | Ingress Protection | Mounting Type | Circuit | Illumination Voltage (Nominal) | Voltage Rating - DC | Current Rating (Amps) | Switch Function | Illumination Type, Color | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Carling Technologies | 50000 Cycles | 50000 Cycles | 44.04 mm | 22.02 mm | Black | No Marking | Concave (Curved) - Illuminated | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight Waterproof | Panel Mount Snap-In | DPDT | 12 VDC | 12 V | 20 A | Mom-Off-Mom | Amber Green LED | 85 °C | -40 C |
