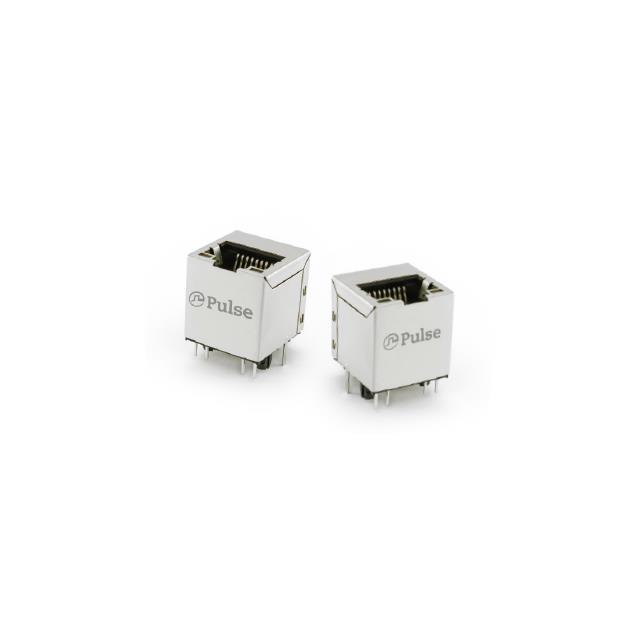

JXD2 Series
Modular Connectors / Ethernet Connectors CONN RJ45 1X1 100D NO LED TY
Manufacturer: Pulse Electronics
Catalog
Modular Connectors / Ethernet Connectors CONN RJ45 1X1 100D NO LED TY
Beta
⌘K
Modular Connectors / Ethernet Connectors CONN RJ45 1X1 100D NO LED TY
Modular Connectors / Ethernet Connectors CONN RJ45 1X1 100D NO LED TY
Modular Connectors / Ethernet Connectors CONN RJ45 1X1 100D NO LED TY
| Part | Housing Material | Shield Material | Contact Finish Thickness | Contact Finish Thickness | Shielding | Tab Direction | Applications | Number of Rows | Termination | Height Above Board | Height Above Board | Number of Ports | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Orientation | LED Color | Contact Finish | Connector Type | Features | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pulse Electronics | Thermoplastic | Brass | 30 Áin | 0.76 Ám | Shielded | User Selectable | 10/100 Base-TX AutoMDIX | 1 | Solder | 0.667 in | 16.94 mm | 1 | 85 °C | -40 C | Through Hole | Vertical | Does Not Contain LED | Gold | RJ45 | Board Guide | Phosphor Bronze |
