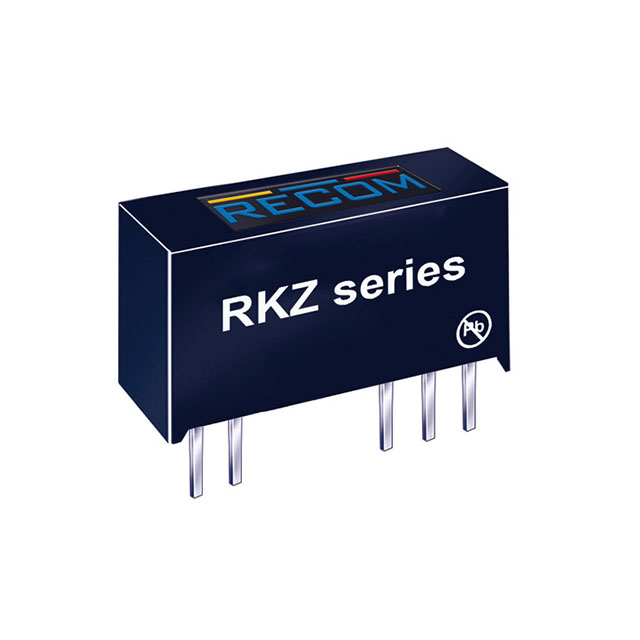

RKZ Series

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 2W DC/DC 4KV UNREG 5VIN +/-5VOUT

...

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Power (Watts)	Voltage - Output 2	Voltage - Isolation	Type	Mounting Type	Number of Outputs	Voltage - Input (Max) [Max]	Voltage - Output 1	Applications	Package / Case	Efficiency	Features	Current - Output (Max) [Max]	Current - Output (Max)	Current - Output (Max)
Recom Power RKZ-0505D/H	85 °C	-40 C	4.5 V	0.4 "	19.7 mm	7.1 mm	0.77 in	10.2 mm	0.28 in	2 W	-5 V	4000 V	Isolated Module	Through Hole	2	5.5 V	5 V	ITE (Commercial) Medical	7-SIP Module 5 Leads
Recom Power RKZ-2405D/H	85 °C	-40 C	21.6 V	0.4 "	19.7 mm	7.1 mm	0.77 in	10.2 mm	0.28 in	2 W	-5 V	4000 V	Isolated Module	Through Hole	2	26.4 V	5 V	ITE (Commercial) Medical	7-SIP Module 5 Leads	83 %

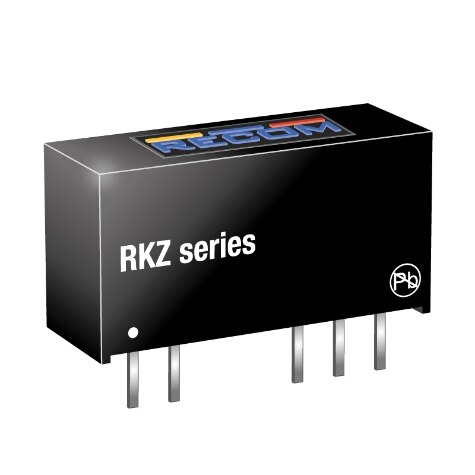

Recom Power RKZ-0505D/P	85 °C	-40 C	4.5 V	0.4 "	19.7 mm	7.1 mm	0.77 in	10.2 mm	0.28 in	2 W	-5 V	3000 V	Isolated Module	Through Hole	2	5.5 V	5 V	ITE (Commercial) Medical	7-SIP Module 5 Leads		SCP
Recom Power RKZ-2405D/P	85 °C	-40 C	21.6 V	0.4 "	19.7 mm	7.1 mm	0.77 in	10.2 mm	0.28 in	2 W	-5 V	3000 V	Isolated Module	Through Hole	2	26.4 V	5 V	ITE (Commercial) Medical	7-SIP Module 5 Leads	83 %	SCP
Recom Power RKZ-1215S	85 °C	-40 C	10.8 V	0.4 "	19.7 mm	7.1 mm	0.77 in	10.2 mm	0.28 in	2 W		3000 V	Isolated Module	Through Hole	1	13.2 V	15 V	ITE (Commercial) Medical	7-SIP Module 4 Leads	84 %		132 mA
Recom Power RKZ-0512S/P	85 °C	-40 C	4.5 V	0.4 "	19.7 mm	7.1 mm	0.77 in	10.2 mm	0.28 in	2 W		3000 V	Isolated Module	Through Hole	1	5.5 V	12 V	ITE (Commercial) Medical	7-SIP Module 4 Leads	84 %	SCP	168 mA
Recom Power RKZ-1212D/HP	85 °C	-40 C	10.8 V	0.4 "	19.7 mm	7.1 mm	0.77 in	10.2 mm	0.28 in	2 W	-12 V	4000 V	Isolated Module	Through Hole	2	13.2 V	12 V	ITE (Commercial) Medical	7-SIP Module 5 Leads	84 %	SCP		84 mA	84 mA
Recom Power RKZ-1215D/H	85 °C	-40 C	10.8 V	0.4 "	19.7 mm	7.1 mm	0.77 in	10.2 mm	0.28 in	2 W	-15 V	4000 V	Isolated Module	Through Hole	2	13.2 V	15 V	ITE (Commercial) Medical	7-SIP Module 5 Leads	84 %				66 mA
Recom Power RKZ-0515S/P	85 °C	-40 C	4.5 V	0.4 "	19.7 mm	7.1 mm	0.77 in	10.2 mm	0.28 in	2 W		3000 V	Isolated Module	Through Hole	1	5.5 V	15 V	ITE (Commercial) Medical	7-SIP Module 4 Leads	84 %	SCP	132 mA
Recom Power RKZ-241509D/P	85 °C	-40 C	21.6 V	0.4 "	19.7 mm	7.1 mm	0.77 in	10.2 mm	0.28 in	2 W	-9 V	3000 V	Isolated Module	Through Hole	2	26.4 V	15 V	ITE (Commercial)	7-SIP Module 5 Leads	81 %	SCP	66 mA 111 mA
