MU Series

Manufacturer: Rubycon

Catalog

FILM CAPACITORS THIN FILM ACRYLIC DIELECTRIC

Part	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Capacitance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Dielectric Material	Termination	Mounting Type	Applications	Voltage Rating - DC	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]

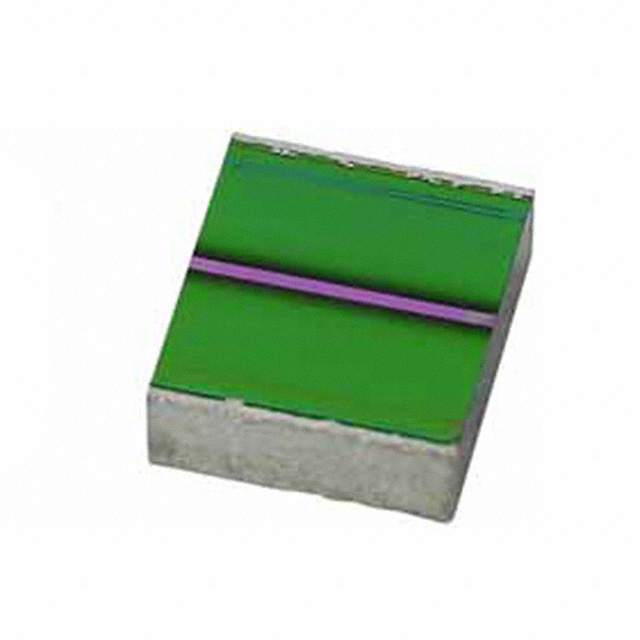

Rubycon 63MU102KZ12012	0805	2 mm	1.25 mm	0.049 "	0.079 in	0.001 µF	0.039 in	1 mm	Acrylic Metallized	Solder Pads	Surface Mount	DC Filtering DC Link	63 VDC	10 %	-55 C	125 °C
Rubycon 16MU473MY11608	0603	1.6 mm		0.031 in	0.063 "		0.033 in	0.85 mm	Acrylic Metallized	Solder Pads	Surface Mount	DC Filtering DC Link	16 V	20 %	-55 C	125 °C	1608 Metric	0.8 mm
Rubycon 63MU683KA13216	1206 (3216 Metric)	3.2 mm	1.6 mm	0.063 "	0.126 "	0.068 µF			Acrylic Metallized	Solder Pads	Surface Mount	DC Filtering DC Link	63 VDC	10 %	-55 C	125 °C			1.2 mm	0.047 "
Rubycon 16MU105MA23216	1206 (3216 Metric)	3.2 mm	1.6 mm	0.063 "	0.126 "	1 µF	0.063 in	1.6 mm	Acrylic Metallized	Solder Pads	Surface Mount	DC Filtering DC Link	16 V	20 %	-55 C	125 °C
Rubycon 35MU473MZ22012	0805	2 mm	1.25 mm	0.049 "	0.079 in				Acrylic Metallized	Solder Pads	Surface Mount	DC Filtering DC Link	35 V	20 %	-55 C	125 °C			1.2 mm	0.047 "
Rubycon 35MU474MA13216	1206 (3216 Metric)	3.2 mm	1.6 mm	0.063 "	0.126 "	0.47 µF			Acrylic Metallized	Solder Pads	Surface Mount	DC Filtering DC Link	35 V	20 %	-55 C	125 °C			1.2 mm	0.047 "
Rubycon 35MU683KZ12012	0805	2 mm	1.25 mm	0.049 "	0.079 in	0.068 µF	0.039 in	1 mm	Acrylic Metallized	Solder Pads	Surface Mount	DC Filtering DC Link	35 V	10 %	-55 C	125 °C
Rubycon 35MU104MZ22012	0805	2 mm	1.25 mm	0.049 "	0.079 in	100000 pF			Acrylic Metallized	Solder Pads	Surface Mount	DC Filtering DC Link	35 V	20 %	-55 C	125 °C			1.2 mm	0.047 "
Rubycon 63MU222KZ12012	0805	2 mm	1.25 mm	0.049 "	0.079 in	2200 pF	0.039 in	1 mm	Acrylic Metallized	Solder Pads	Surface Mount	DC Filtering DC Link	63 VDC	10 %	-55 C	125 °C
Rubycon 50MU333MZ22012	0805	2 mm	1.25 mm	0.049 "	0.079 in	0.033 çF			Acrylic Metallized	Solder Pads	Surface Mount	DC Filtering DC Link	50 VDC	20 %	-55 C	125 °C			1.2 mm	0.047 "
