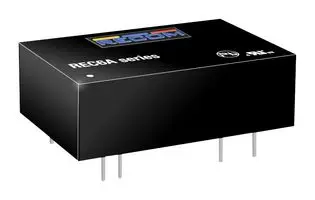

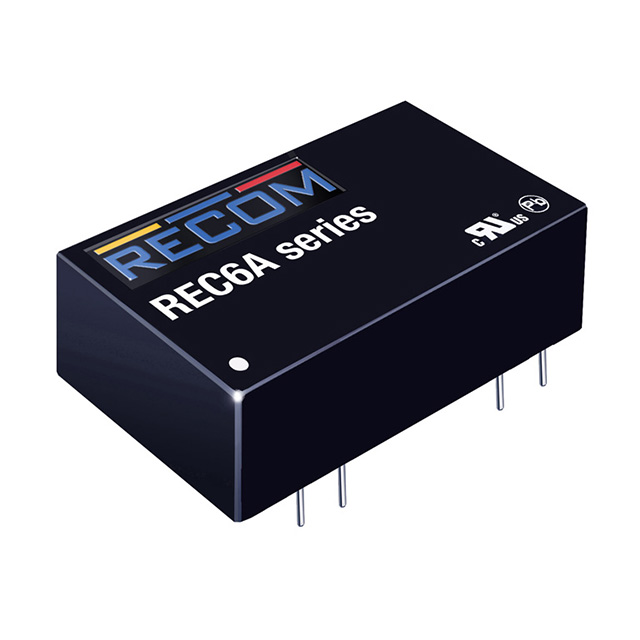

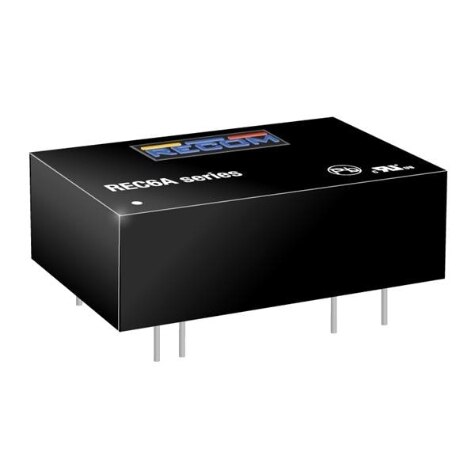

REC6A-W Series
Isolated DC/DC Converters - Through Hole 6W 18-36Vin 5Vout 1200mA DIP24
Manufacturer: Recom Power
Catalog
Isolated DC/DC Converters - Through Hole 6W 18-36Vin 5Vout 1200mA DIP24
Beta
⌘K
Isolated DC/DC Converters - Through Hole 6W 18-36Vin 5Vout 1200mA DIP24
Isolated DC/DC Converters - Through Hole 6W 18-36Vin 5Vout 1200mA DIP24
Isolated DC/DC Converters - Through Hole 6W 18-36Vin 5Vout 1200mA DIP24
| Part | Type | Efficiency | Mounting Type | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Power (Watts) | Voltage - Input (Max) [Max] | Voltage - Output 1 | Number of Outputs | Voltage - Isolation | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Input (Min) [Min] | Current - Output (Max) [Max] | Package / Case | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | Isolated Module | 80 % | Through Hole | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | 6 W | 36 V | 5 V | 1 | 2000 V | ITE (Commercial) | -40 C | 65 °C | 18 V | 1.2 A | 24-DIP Module 8 Leads | SCP UVLO |
 Recom Power | Isolated Module | 73 % | Through Hole | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | 6 W | 9 V | 5 V | 1 | 2000 V | ITE (Commercial) | -40 C | 65 °C | 4.5 V | 1.2 A | 24-DIP Module 8 Leads | SCP |
 Recom Power | Isolated Module | 80 % | Through Hole | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | 6 W | 36 V | 5 V | 1 | 2000 V | ITE (Commercial) | -40 C | 65 °C | 18 V | 1.2 A | 24-DIP Module 8 Leads | SCP |
Recom Power | Isolated Module | 73 % | Through Hole | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | 6 W | 9 V | 5 V | 1 | 2000 V | ITE (Commercial) | -40 C | 65 °C | 4.5 V | 1.2 A | 24-DIP Module 8 Leads | SCP UVLO |
