MK3DSMH Series

Catalog

FIXED TERMINAL BLOCKS MK3DSMH 3/ 3-5 08

Part	Torque - Screw [Max]	Torque - Screw [Min]	Torque - Screw [Min]	Torque - Screw [Max]	Housing Material	Screw Thread	Pitch	Pitch	Color	Features	Positions Per Level	Wire Termination	Mating Orientation	Number of Levels	Current	Mounting Type	Voltage	Wire Gauge [Max]	Wire Gauge [Min]

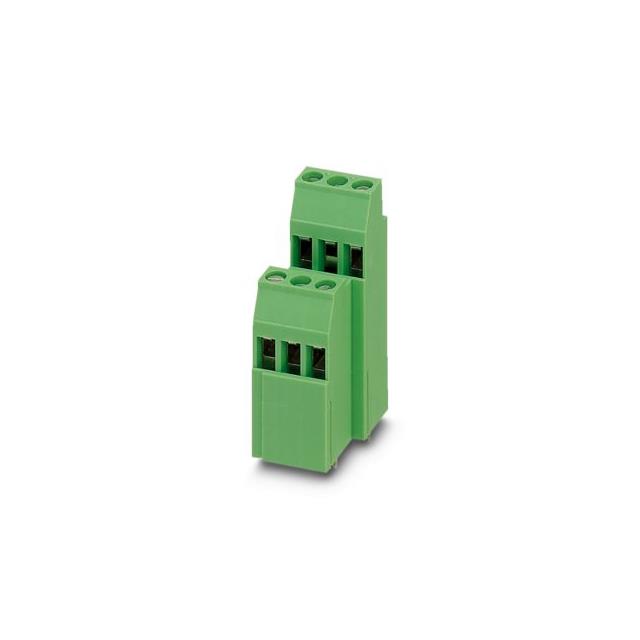

Phoenix Contact 1723218	0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In	Polyamide (PA) Nylon	M3	5.08 mm	0.2 in	Green	High Wire Entry Level	3	Screw - Rising Cage Clamp	Horizontal with Board	2	15 A	Through Hole	300 VDC	30 AWG	12 AWG
