har-flexicon MTV Series
Manufacturer: HARTING
Beta
⌘K
PIN HEADER, PCB HEADER, BOARD-TO-BOARD, 3.81 MM, 1 ROWS, 8 CONTACTS, THROUGH HOLE
| Part | Pitch | Pitch | Header Orientation | Color | Number of Positions | Mounting Type | Positions Per Level | Number of Levels | Contact Mating Finish | Termination Style | Voltage - UL | Operating Temperature [Min] | Operating Temperature [Max] | Current - UL | Type | Material Flammability Rating | Contact Material | Insulation Height | Insulation Height | Housing Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HARTING | 3.81 mm | 0.15 in | Vertical | Black | 8 | Through Hole | 8 | 1 | Tin | Solder | 300 V | -40 C | 110 °C | 11 A | Header Male Pins Shrouded (4 Side) | |||||

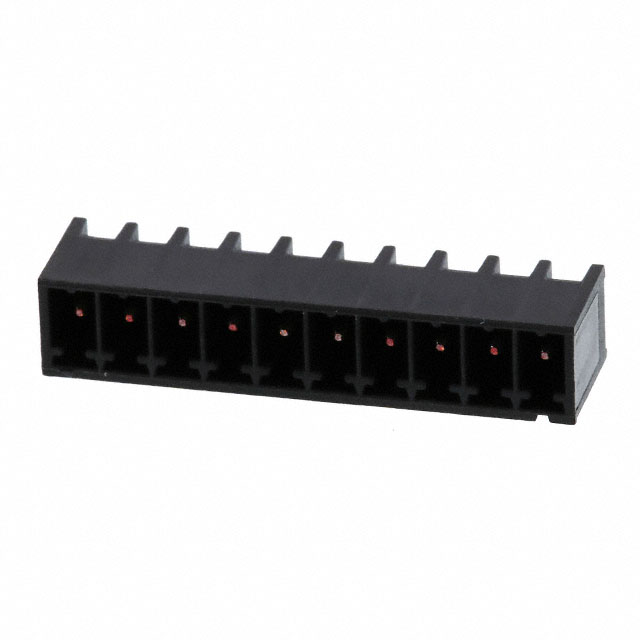

 HARTING | 3.5 mm | 0.138 " | Vertical | Black | 10 | Through Hole | 10 | 1 | Tin | Solder | 300 V | -40 C | 110 °C | 11 A | Header Male Pins Shrouded (4 Side) | UL94 V-0 | Copper Alloy | 0.362 in | 9.2 mm | Nylon Polyamide (PA) Polyphthalamide (PPA) |
