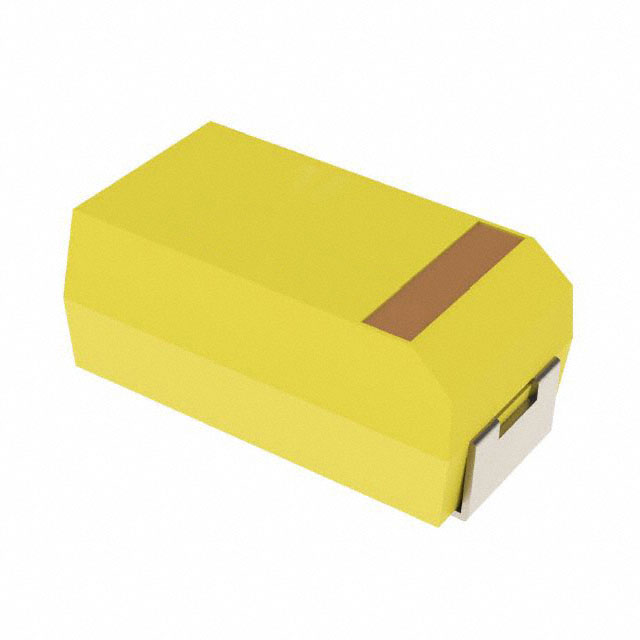

T491C Series

Manufacturer: KEMET

Catalog

Catalog

CAP TANT 33UF 20% 10V 2312

...

Part	Type	Lifetime @ Temp.	Tolerance	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Package / Case	Mounting Type	Features	Voltage - Rated	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	ESR (Equivalent Series Resistance)	Ratings	Qualification	Grade
KEMET T491C336M010AT24787622	Molded	2000 Hrs	20 %	3.2 mm	0.126 in	0.236 in	6 mm	2312 (6032 Metric)	Surface Mount	General Purpose	10 V	33 ÁF	-55 C	125 °C	1.5 Ohm
KEMET T491C107K010ATAUTO	Molded	2000 Hrs	10 %	3.2 mm	0.126 in	0.236 in	6 mm	2312 (6032 Metric)	Surface Mount	Automotive	10 V	100 µF	-55 C	125 °C	1200 mOhm	AEC-Q200	AEC-Q200	Automotive
KEMET T491C686K010AT4280	Molded	2000 Hrs	10 %	3.2 mm	0.126 in	0.236 in	6 mm	2312 (6032 Metric)	Surface Mount	General Purpose	10 V	68 µF	-55 C	125 °C	1 Ohms
KEMET T491C226M020AT48607622	Molded	2000 Hrs	20 %	3.2 mm	0.126 in	0.236 in	6 mm	2312 (6032 Metric)	Surface Mount	General Purpose	20 V	22 µF	-55 C	125 °C	1200 mOhm
KEMET T491C685M025AT	Molded	2000 Hrs	20 %	3.2 mm	0.126 in	0.236 in	6 mm	2312 (6032 Metric)	Surface Mount	General Purpose	25 VDC	6.8 µF	-55 C	125 °C	1.9 Ohms
KEMET T491C106K016AT4160	Molded	2000 Hrs	10 %	3.2 mm	0.126 in	0.236 in	6 mm	2312 (6032 Metric)	Surface Mount	General Purpose	16 V	10 µF	-55 C	125 °C	1.8 Ohm
KEMET T491C336K016AT4860	Molded	2000 Hrs	10 %	3.2 mm	0.126 in	0.236 in	6 mm	2312 (6032 Metric)	Surface Mount	General Purpose	16 V	33 ÁF	-55 C	125 °C	1200 mOhm
KEMET T491C686M010AT4380	Molded	2000 Hrs	20 %	3.2 mm	0.126 in	0.236 in	6 mm	2312 (6032 Metric)	Surface Mount	General Purpose	10 V	68 µF	-55 C	125 °C	1 Ohms
KEMET T491C156K010ATAU04	Molded	2000 Hrs	10 %	3.2 mm	0.126 in	0.236 in	6 mm	2312 (6032 Metric)	Surface Mount	General Purpose	10 V	15 µF	-55 C	125 °C	1.8 Ohm
KEMET T491C225K035AT4380	Molded	2000 Hrs	10 %	3.2 mm	0.126 in	0.236 in	6 mm	2312 (6032 Metric)	Surface Mount	General Purpose	35 V	2.2 µF	-55 C	125 °C	3.2 Ohms
