PPPC111 Series

Catalog

CONN HDR 11POS 0.1 GOLD PCB

Part	Contact Finish Thickness - Post	Contact Material	Contact Shape	Insulation Material	Material Flammability Rating	Current Rating (Amps)	Connector Type	Number of Positions Loaded	Mounting Type	Voltage Rating	Contact Finish - Post	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height	Insulation Height	Insulation Color	Termination	Contact Finish - Mating	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Pitch - Mating	Pitch - Mating	Number of Positions	Contact Finish Thickness - Mating	Contact Type	Contact Length - Post	Contact Length - Post

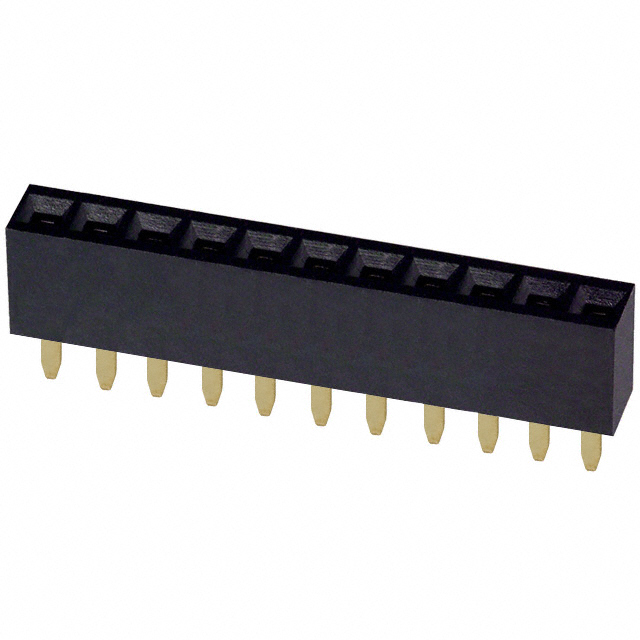

Sullins Connector Solutions PPPC111LFBN-RC	Flash	Phosphor Bronze	Square	Polyester	UL94 V-0	3 A	Header	All	Through Hole	250 V	Gold	0.126 "	3.2 mm	0.335 "	8.51 mm	Black	Solder	Gold	Push-Pull	-40 C	105 ░C	1	0.1 "	2.54 mm	11	Flash	Female Socket

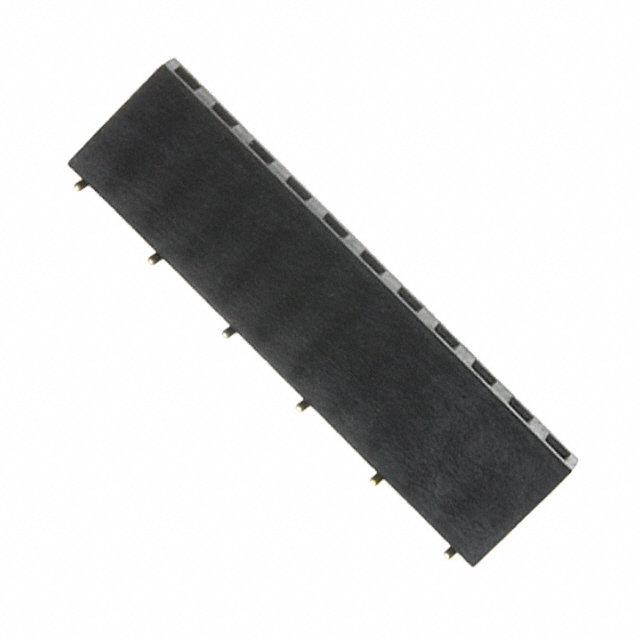

Sullins Connector Solutions PPPC111KFXC	Flash	Phosphor Bronze	Square	Polyester	UL94 V-0	3 A	Header Top or Bottom Entry	All	Surface Mount	250 V	Gold			0.28 in	7.1 mm	Black	Solder	Gold	Push-Pull	-40 C	105 ░C	1	0.1 "	2.54 mm	11	Flash	Female Socket

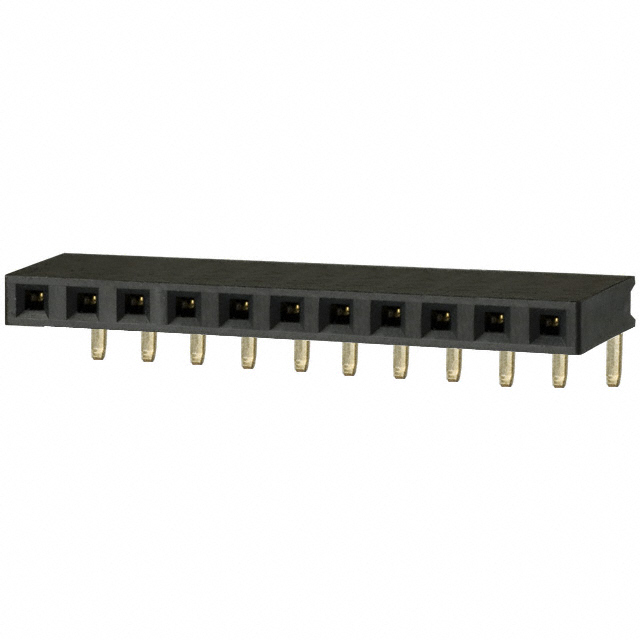

Sullins Connector Solutions PPPC111LGBN	Flash	Phosphor Bronze	Square	Polyester	UL94 V-0	3 A	Header	All	Right Angle Through Hole	250 V	Gold			0.1 in	2.54 mm	Black	Solder	Gold	Push-Pull	-40 C	105 ░C	1	0.1 "	2.54 mm	11	Flash	Female Socket	0.124 in	3.15 mm
Sullins Connector Solutions PPPC111LFBN	Flash	Phosphor Bronze	Square	Polyester	UL94 V-0	3 A	Header	All	Through Hole	250 V	Gold	0.126 "	3.2 mm	0.335 "	8.51 mm	Black	Solder	Gold	Push-Pull	-40 C	105 ░C	1	0.1 "	2.54 mm	11	Flash	Female Socket
