71276 Series

Catalog

CONN HEADER SMD 10POS 2.54MM

Part	Fastening Type	Current Rating (Amps)	Contact Finish - Mating	Shrouding	Pitch - Mating	Pitch - Mating	Contact Type	Contact Material	Insulation Height	Insulation Height	Number of Positions	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Mounting Type	Number of Positions Loaded	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Mating [x]	Contact Length - Mating	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Connector Type	Contact Finish - Post	Number of Rows	Number of Positions

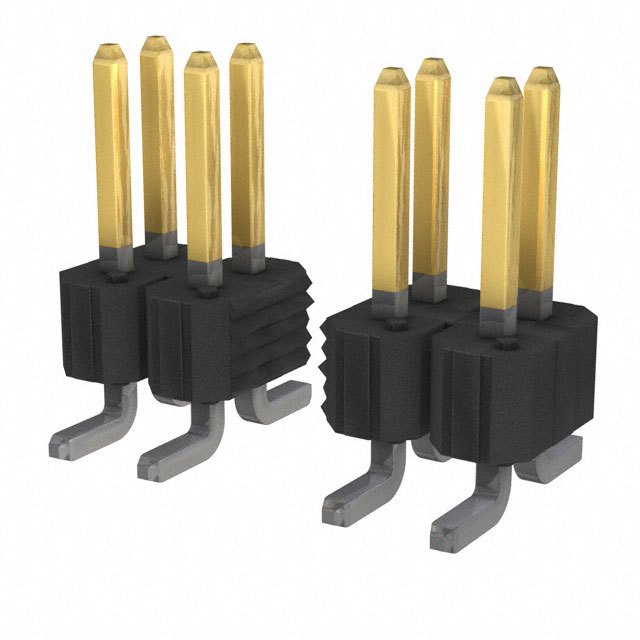

Amphenol ICC (FCI) 71276-110HLF	Push-Pull	3 A	Gold	Unshrouded	0.1 in	2.54 mm	Male Pin	Phosphor Bronze	0.1 in	2.54 mm	10	UL94 V-0	-65 ░C	130 °C	Square	Surface Mount	All	2.54 mm	0.1 in	0.23 in	5.84 mm	Solder	30 Áin	0.76 Ám	Black	Header	Tin	2

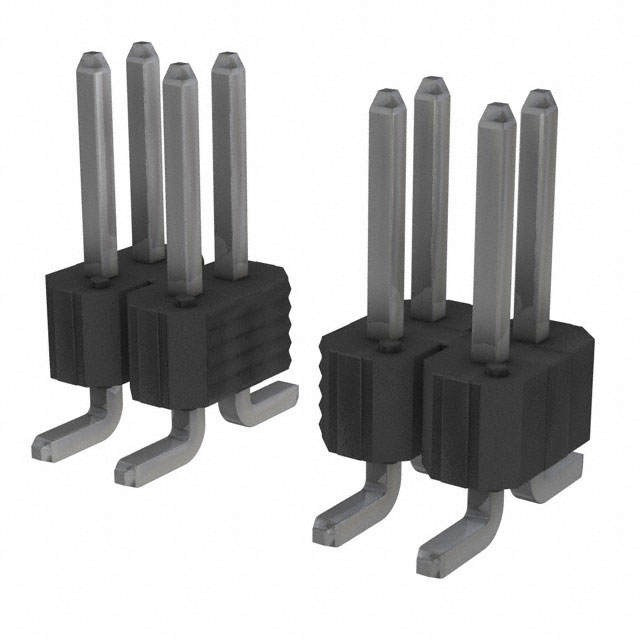

Amphenol ICC (FCI) 71276-440HLF	Push-Pull	3 A		Unshrouded	0.1 in	2.54 mm	Male Pin	Phosphor Bronze	0.1 in	2.54 mm	40	UL94 V-0	-65 ░C	130 °C	Square	Surface Mount	All	2.54 mm	0.1 in	0.23 in	5.84 mm	Solder	120 µin	3.05 Ám	Black	Header	Tin	2
Amphenol ICC (FCI) 71276-410HLF	Push-Pull	3 A		Unshrouded	0.1 in	2.54 mm	Male Pin	Phosphor Bronze	0.1 in	2.54 mm	10	UL94 V-0	-65 ░C	130 °C	Square	Surface Mount	All	2.54 mm	0.1 in	0.23 in	5.84 mm	Solder	120 µin	3.05 Ám	Black	Header	Tin	2
Amphenol ICC (FCI) 71276-116HLF	Push-Pull	3 A	Gold	Unshrouded	0.1 in	2.54 mm	Male Pin	Phosphor Bronze	0.1 in	2.54 mm		UL94 V-0	-65 ░C	130 °C	Square	Surface Mount	All	2.54 mm	0.1 in	0.23 in	5.84 mm	Solder	30 Áin	0.76 Ám	Black	Header	Tin	2	16
