53AAA Series
Manufacturer: Bourns Inc.
Beta
⌘K

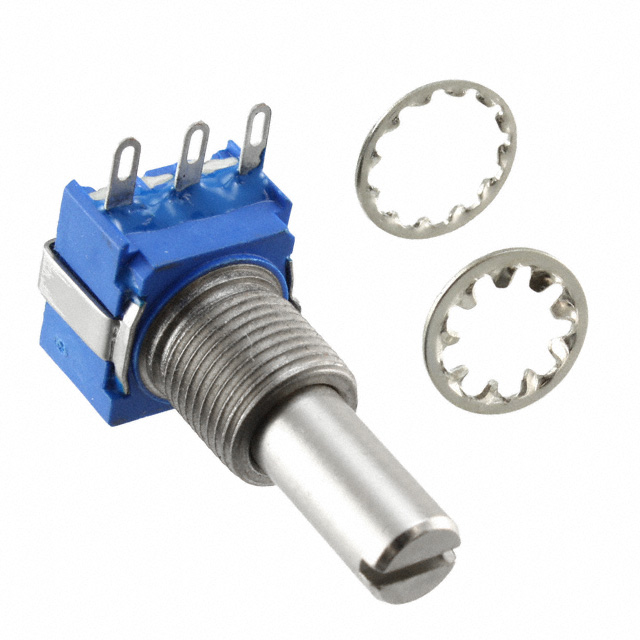

POT 10K OHM 1/4W PLASTIC LOG
| Part | Number of Turns | Actuator Diameter [diameter] | Actuator Diameter [diameter] | Features | Temperature Coefficient | Rotation | Built in Switch | Size - Body [y] | Size - Body [x] | Size - Body [y] | Size - Body [x] | Mounting Type | Power (Watts) | Power (Watts) | Actuator Length [x] | Actuator Length [x] | Termination Style | Adjustment Type | Actuator Type | Resistance (Ohms) | Resistive Material | Taper | Bushing Thread | Tolerance | Number of Gangs | Resistance (Ohms) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 1 | 6.35 mm | 0.25 in | Sealed | 1000 ppm/°C | 290 ° | None | 0.492 " | 0.521 " | 12.5 mm | 13.25 mm | Panel Mount | 0.25 W | 0.25 W | 0.875 in | 22.23 mm | Solder Lug | User Defined | Slotted | 10k | Conductive Plastic | Logarithmic | 3/8-32 | 20 % | 1 | |
 Bourns Inc. | 1 | 6.35 mm | 0.25 in | Sealed | 150 ppm/°C | 290 ° | None | 0.492 " | 0.521 " | 12.5 mm | 13.25 mm | Panel Mount | 1 W | 0.875 in | 22.23 mm | Solder Lug | User Defined | Slotted | 1k | Cermet | Linear | 3/8-32 | 10 % | 1 | ||
Bourns Inc. | 1 | 6.35 mm | 0.25 in | Sealed | 1000 ppm/°C | 290 ° | None | 0.492 " | 0.521 " | 12.5 mm | 13.25 mm | Panel Mount | 0.5 W | 0.5 W | 0.875 in | 22.23 mm | Solder Lug | User Defined | Slotted | 100k | Conductive Plastic | Linear | 3/8-32 | 20 % | 1 | |
Bourns Inc. | 1 | 6.35 mm | 0.25 in | Sealed | 1000 ppm/°C | 290 ° | None | 0.492 " | 0.521 " | 12.5 mm | 13.25 mm | Panel Mount | 0.25 W | 0.25 W | 0.75 in | 19.05 mm | Solder Lug | User Defined | Slotted | 10k | Conductive Plastic | Logarithmic | 3/8-32 | 20 % | 1 | |
Bourns Inc. | 1 | 6.35 mm | 0.25 in | Sealed | 150 ppm/°C | 290 ° | None | 0.492 " | 0.521 " | 12.5 mm | 13.25 mm | Panel Mount | 1 W | 0.75 in | 19.05 mm | Solder Lug | User Defined | Slotted | Cermet | Linear | 3/8-32 | 10 % | 1 | 5 kOhms | ||
Bourns Inc. | 1 | 6.35 mm | 0.25 in | Sealed | 1000 ppm/°C | 290 ° | None | 0.492 " | 0.521 " | 12.5 mm | 13.25 mm | Panel Mount | 0.5 W | 0.5 W | 0.875 in | 22.23 mm | Solder Lug | User Defined | Slotted | 10k | Conductive Plastic | Linear | 3/8-32 | 20 % | 1 | |
Bourns Inc. | 1 | 6.35 mm | 0.25 in | Sealed | 1000 ppm/°C | 290 ° | None | 0.492 " | 0.521 " | 12.5 mm | 13.25 mm | Panel Mount | 0.5 W | 0.5 W | 0.875 in | 22.23 mm | Solder Lug | Side Adjustment | Flatted | Conductive Plastic | Linear | 3/8-32 | 10 % | 1 | 5 kOhms |
