89504 Series
Manufacturer: Belden Inc.
Beta
⌘K

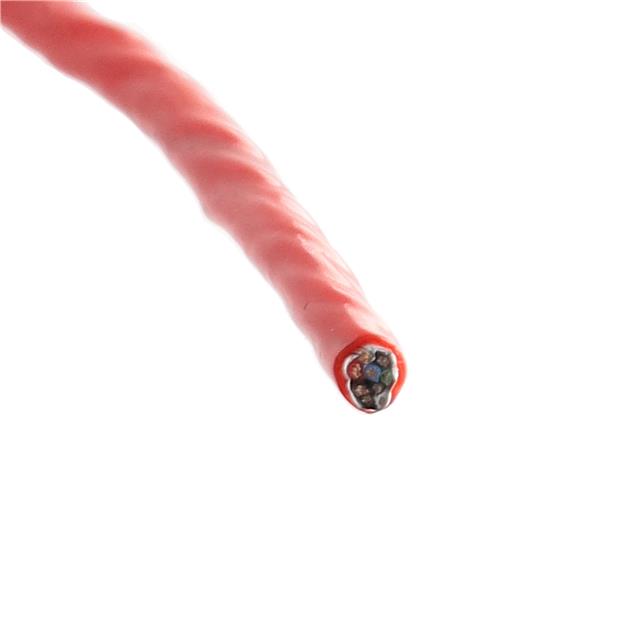

MULTI-PAIR 8COND 24AWG RED
| Part | Shield Material | Shield Coverage | Shield Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Voltage | Wire Gauge | Cable Type | Usage | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Insulation | Length | Length | Features | Conductor Material | Operating Temperature [Min] | Operating Temperature [Max] | Ratings | Number of Conductors | Jacket Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | Foil | 0.014 in | 0.356 mm | 0.192 in | 4.88 mm | Fluorinated Ethylene-Propylene (FEP) Plenum | 300 VDC | 24 AWG | Multi-Pair | Computer | 7 | 32 AWG | Fluorinated Ethylene-Propylene (FEP) | 152.4 m | 500 ft | Drain Wire | Copper Tinned | -70 °C | 200 °C | UL Style CMP | 8 | Red |
 Belden Inc. | Aluminum | 100 % | Foil | 0.014 in | 0.356 mm | 0.192 in | 4.88 mm | Fluorinated Ethylene-Propylene (FEP) Plenum | 300 VDC | 24 AWG | Multi-Pair | Computer | 7 | 32 AWG | Fluorinated Ethylene-Propylene (FEP) | 304.8 m | 1000 ft | Drain Wire | Copper Tinned | -70 °C | 200 °C | UL Style CMP | 8 | Red |
