833-007 Series
Manufacturer: EDAC Inc.
Beta
⌘K

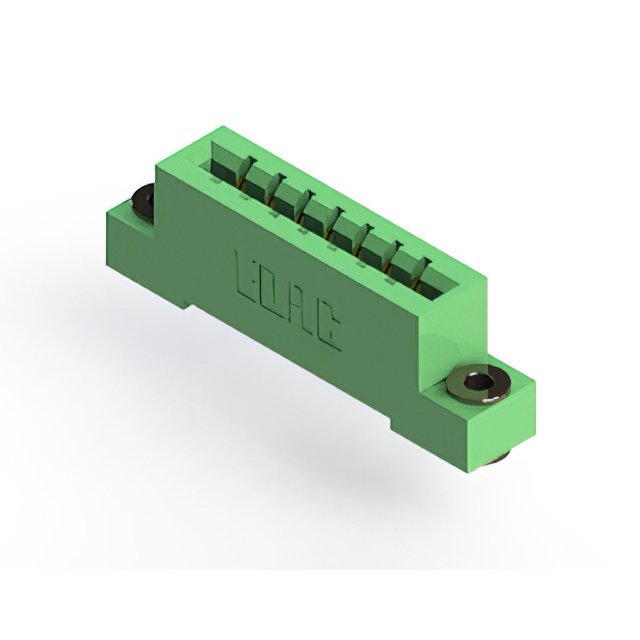

CONN EDGE SGL FMALE 7POS 0.156
| Part | Material - Insulation | Termination Rows | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions/Bay/Row | Contact Finish | Number of Positions | Card Thickness [Max] | Card Thickness [Min] | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Read Out | Termination | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Card Type | Gender | Color | Mounting Type | Pitch | Pitch | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Copper Alloy | 125 °C | -40 C | 7 | Gold | 7 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | 1 | Single | Solder | 0.116 " | Floating Bobbin Flush Mount | 2.95 mm | Non Specified - Single Edge | Female | Green | Through Hole | 3.96 mm | 0.156 in | Cantilever |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Copper Alloy | 125 °C | -40 C | 7 | Gold | 7 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | 1 | Single | Wire Wrap | Non Specified - Single Edge | Female | Green | Through Hole | 3.96 mm | 0.156 in | Cantilever | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Copper Alloy | 125 °C | -40 C | 7 | Gold | 7 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | 1 | Single | Solder | 4-40 Threaded Insert Top Mount Opening | Non Specified - Single Edge | Female | Green | Through Hole | 3.96 mm | 0.156 in | Cantilever | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Copper Alloy | 125 °C | -40 C | 7 | Gold | 7 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | 1 | Single | Wire Wrap | Non Specified - Single Edge | Female | Green | Through Hole | 3.96 mm | 0.156 in | Cantilever | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Copper Alloy | 125 °C | -40 C | 7 | Gold | 7 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | 1 | Single | Solder Eyelet(s) | 0.128 " | Side Mount Opening Unthreaded | 3.25 mm | Non Specified - Single Edge | Female | Green | Through Hole | 3.96 mm | 0.156 in | Cantilever |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Copper Alloy | 125 °C | -40 C | 7 | Gold | 7 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | 1 | Single | Solder | M3 Threaded Insert Top Mount Opening | Non Specified - Single Edge | Female | Green | Through Hole | 3.96 mm | 0.156 in | Cantilever | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Copper Alloy | 125 °C | -40 C | 7 | Gold | 7 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | 1 | Single | Solder | 0.128 " | 3.25 mm | Non Specified - Single Edge | Female | Green | Right Angle Through Hole | 3.96 mm | 0.156 in | Cantilever | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Copper Alloy | 125 °C | -40 C | 7 | Gold | 7 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | 1 | Single | Solder | 0.116 " | Floating Bobbin Top Mount Opening | 2.95 mm | Non Specified - Single Edge | Female | Green | Right Angle Through Hole | 3.96 mm | 0.156 in | Cantilever |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Copper Alloy | 125 °C | -40 C | 7 | Gold | 7 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | 1 | Single | Solder | Flush Mount M3 Threaded Insert Top Opening | Non Specified - Single Edge | Female | Green | Through Hole | 3.96 mm | 0.156 in | Cantilever | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Copper Alloy | 125 °C | -40 C | 7 | Gold | 7 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | 1 | Single | Solder | 0.116 " | Floating Bobbin Flush Mount | 2.95 mm | Non Specified - Single Edge | Female | Green | Through Hole | 3.96 mm | 0.156 in | Cantilever |
