ESB20 Series
Manufacturer: TE Intercontec
Beta
⌘K

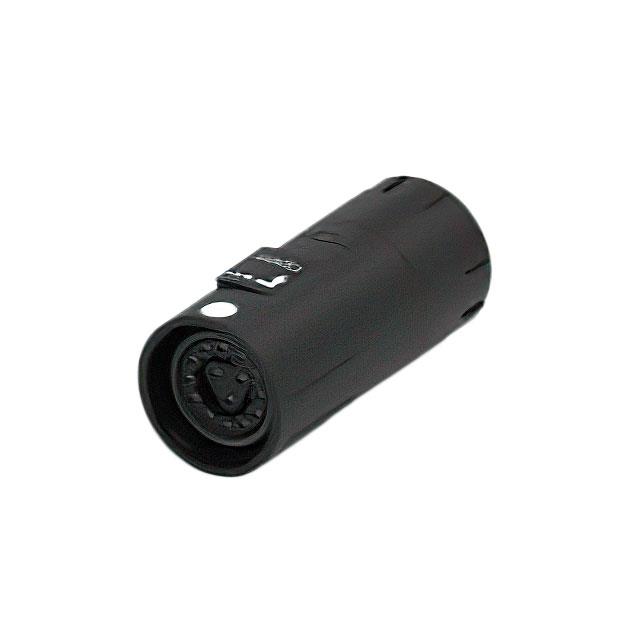

CONN PLG HSG FMALE 9POS INLINE
| Part | Material Flammability Rating | Shell Material | Ingress Protection | Features | Connector Type | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Includes | Insert Material | Shielding | Note | Mounting Type | Contact Shape | Housing Color | Type | Orientation | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Intercontec | UL94 V-0 | Zinc Die Cast | IP66 IP67 | Backshell Cable Clamp Coupling Nut | Plug Housing | Push-Twist | -20 ░C | 130 °C | 1 Clip 1 Contact Housing 1 EMI Ring 1 Grommet 1 Nut 1 Shell Housing 7 pcs - 1 Contact Block | Nylon Polyamide (PA) Polybutylene Terephthalate (PBT) | Shielded | Contacts Not Included | Free Hanging (In-Line) | Circular | Black | For Female Sockets | Keyed | 9 |
 TE Intercontec | UL94 V-0 | Zinc Die Cast | IP66 IP67 | Backshell Cable Clamp Coupling Nut | Plug Housing | Push-Twist | -20 ░C | 130 °C | 1 Clip 1 Contact Housing 1 EMI Ring 1 Grommet 1 Nut 1 Shell Housing 7 pcs - 1 Contact Block | Nylon Polyamide (PA) Polybutylene Terephthalate (PBT) | Shielded | Contacts Not Included | Free Hanging (In-Line) | Circular | Black | For Female Sockets | Keyed | 15 |
TE Intercontec | UL94 V-0 | Zinc Die Cast | IP66 IP67 | Backshell Cable Clamp Coupling Nut | Plug Housing | Push-Twist | -20 ░C | 130 °C | 1 Clip 1 Contact Housing 1 EMI Ring 1 Grommet 1 Nut 1 Shell Housing 7 pcs - 1 Contact Block | Nylon Polyamide (PA) Polybutylene Terephthalate (PBT) | Shielded | Contacts Not Included | Free Hanging (In-Line) | Circular | Black | For Female Sockets | Keyed | 9 |
TE Intercontec | UL94 V-0 | Zinc Die Cast | IP66 IP67 | Backshell Cable Clamp Coupling Nut | Plug Housing | Push-Twist | -20 ░C | 130 °C | 1 Clip 1 Contact Housing 1 EMI Ring 1 Grommet 1 Nut 1 Shell Housing 7 pcs - 1 Contact Block | Nylon Polyamide (PA) Polybutylene Terephthalate (PBT) | Shielded | Contacts Not Included | Free Hanging (In-Line) | Circular | Black | For Female Sockets | Keyed | 9 |
TE Intercontec | UL94 V-0 | Zinc Die Cast | IP66 IP67 | Backshell Cable Clamp Coupling Nut | Plug Housing | Push-Twist | -20 ░C | 130 °C | 1 Clip 1 Contact Housing 1 EMI Ring 1 Grommet 1 Nut 1 Shell Housing 7 pcs - 1 Contact Block | Nylon Polyamide (PA) Polybutylene Terephthalate (PBT) | Shielded | Contacts Not Included | Free Hanging (In-Line) | Circular | Black | For Female Sockets | Keyed | 9 |
TE Intercontec | UL94 V-0 | Zinc Die Cast | IP66 IP67 | Backshell Cable Clamp Coupling Nut | Plug Housing | Push-Twist | -20 ░C | 130 °C | 1 Clip 1 Contact Housing 1 EMI Ring 1 Grommet 1 Nut 1 Shell Housing 7 pcs - 1 Contact Block | Nylon Polyamide (PA) Polybutylene Terephthalate (PBT) | Shielded | Contacts Not Included | Free Hanging (In-Line) | Circular | Black | For Female Sockets | Keyed | 15 |
TE Intercontec | UL94 V-0 | Zinc Die Cast | IP66 IP67 | Backshell Cable Clamp Coupling Nut | Plug Housing | Push-Twist | -20 ░C | 130 °C | 1 Clip 1 Contact Housing 1 EMI Ring 1 Grommet 1 Nut 1 Shell Housing 7 pcs - 1 Contact Block | Nylon Polyamide (PA) Polybutylene Terephthalate (PBT) | Shielded | Contacts Not Included | Free Hanging (In-Line) | Circular | Black | For Female Sockets | Keyed | 15 |
