2413C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

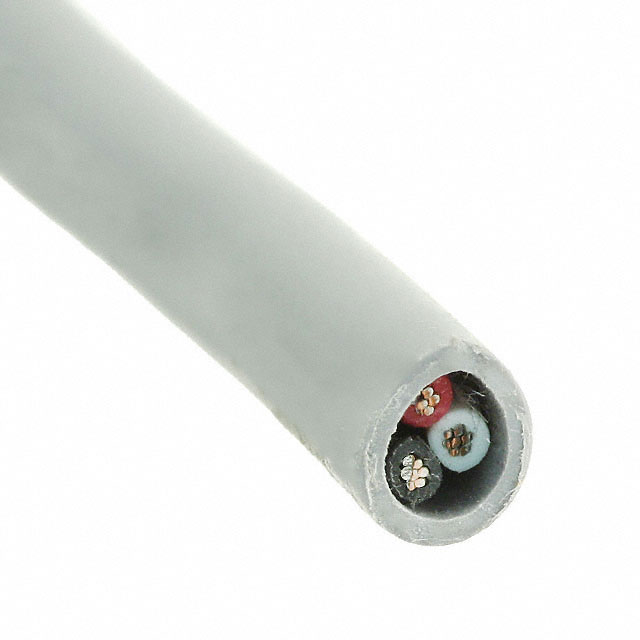

CABLE 3CON 20AWG SLATE SHLD 500'
| Part | Shield Material | Shield Coverage | Jacket (Insulation) Material | Voltage | Conductor Material | Features | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Usage | Conductor Insulation | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket Color | Conductor Strand [custom] | Conductor Strand [custom] | Wire Gauge | Length | Length | Number of Conductors | Shield Type | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum | 100 % | Poly-Vinyl Chloride (PVC) | 300 VDC | Copper Tinned | Drain Wire | Multi-Conductor | 0.195 " | 4.95 mm | Communication Control | Polyethylene (PE) | 0.02 " | 0.508 mm | Slate | 28 AWG | 7 | 20 AWG | 152.4 m | 500 ft | 3 | Foil | ||
ALPHA WIRE | Aluminum | 100 % | Poly-Vinyl Chloride (PVC) | 300 VDC | Copper Tinned | Drain Wire | Multi-Conductor | 0.195 " | 4.95 mm | Communication Control | Polyethylene (PE) | 0.02 " | 0.508 mm | Slate | 28 AWG | 7 | 20 AWG | 3 | Foil | 100 ft | 30.5 m | ||
ALPHA WIRE | Aluminum | 100 % | Poly-Vinyl Chloride (PVC) | 300 VDC | Copper Tinned | Drain Wire | Multi-Conductor | 0.195 " | 4.95 mm | Communication Control | Polyethylene (PE) | 0.02 " | 0.508 mm | Slate | 28 AWG | 7 | 20 AWG | 304.8 m | 1000 ft | 3 | Foil |
