178499 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

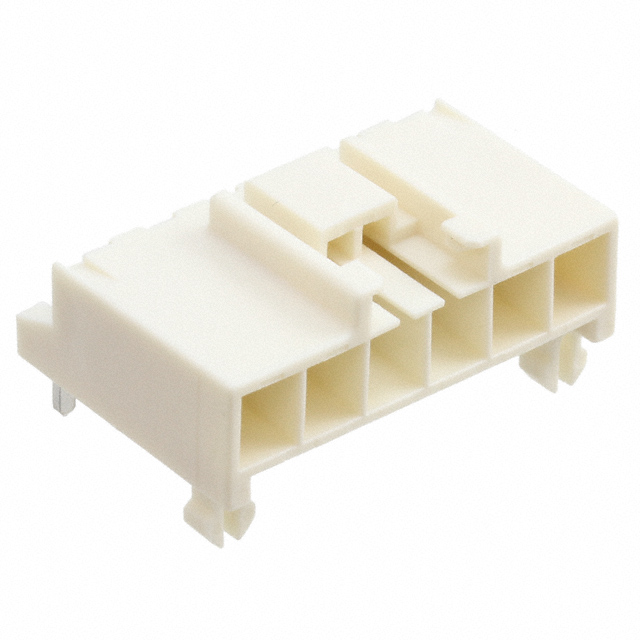

UP 3.96 6P TAB HDR NATL TYPE 1
| Part | Style | Number of Positions Loaded | Insulation Height | Insulation Height | Contact Length - Post [x] | Contact Length - Post [x] | Number of Positions | Current Rating (Amps) | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Pitch - Mating | Pitch - Mating | Contact Type | Applications | Insulation Color | Connector Type | Material Flammability Rating | Shrouding | Termination | Number of Rows | Contact Finish - Post | Fastening Type | Contact Shape | Contact Material | Insulation Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Board to Cable/Wire | All | 9.55 mm | 0.376 in | 0.15 in | 3.81 mm | 6 | Varies by Wire Gauge | Through Hole Right Angle | -30 ░C | 105 ░C | 0.156 in | 3.96 mm | Tab | General Purpose | Natural | Header | UL94 V-0 | Shrouded - 4 Wall | Solder | 1 | Tin | Locking Ramp | Rectangular | Brass | Polyamide (PA66) Nylon 6/6 |
