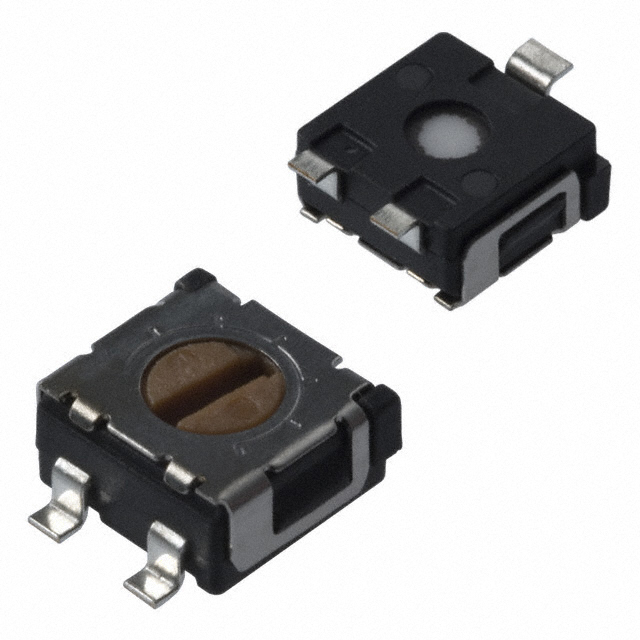

ST4ETB Series

Manufacturer: Nidec Components Corporation

Catalog

TRIMMER 50 OHM 0.25W GW TOP ADJ

Part	Resistive Material	Power (Watts)	Power (Watts)	Temperature Coefficient	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Adjustment Type	Termination Style	Mounting Type	Number of Turns	Resistance	Tolerance
Nidec Components Corporation ST-4ETB500	Cermet	0.25 W	0.25 W	250 ppm/°C	0.197 in	0.177 "	5 mm	4.5 mm	Top Adjustment	Gull Wing	Surface Mount	1	50 Ohms	20 %
Nidec Components Corporation ST-4ETB502	Cermet	0.25 W	0.25 W	100 ppm/°C	0.197 in	0.177 "	5 mm	4.5 mm	Top Adjustment	Gull Wing	Surface Mount	1	5 kOhms	20 %
Nidec Components Corporation ST-4ETB202	Cermet	0.25 W	0.25 W	100 ppm/°C	0.197 in	0.177 "	5 mm	4.5 mm	Top Adjustment	Gull Wing	Surface Mount	1	2 kOhms	20 %
Nidec Components Corporation ST-4ETB201	Cermet	0.25 W	0.25 W	100 ppm/°C	0.197 in	0.177 "	5 mm	4.5 mm	Top Adjustment	Gull Wing	Surface Mount	1	200 Ohms	20 %
Nidec Components Corporation ST-4ETB204	Cermet	0.25 W	0.25 W	100 ppm/°C	0.197 in	0.177 "	5 mm	4.5 mm	Top Adjustment	Gull Wing	Surface Mount	1	200000 Ohms	20 %
Nidec Components Corporation ST-4ETB205	Cermet	0.25 W	0.25 W	100 ppm/°C	0.197 in	0.177 "	5 mm	4.5 mm	Top Adjustment	Gull Wing	Surface Mount	1	2 MOhms	20 %
Nidec Components Corporation ST-4ETB203	Cermet	0.25 W	0.25 W	100 ppm/°C	0.197 in	0.177 "	5 mm	4.5 mm	Top Adjustment	Gull Wing	Surface Mount	1	20 kOhms	20 %
Nidec Components Corporation ST-4ETB504	Cermet	0.25 W	0.25 W	100 ppm/°C	0.197 in	0.177 "	5 mm	4.5 mm	Top Adjustment	Gull Wing	Surface Mount	1		20 %
Nidec Components Corporation ST-4ETB100	Cermet	0.25 W	0.25 W	250 ppm/°C	0.197 in	0.177 "	5 mm	4.5 mm	Top Adjustment	Gull Wing	Surface Mount	1	10 Ohms	20 %
Nidec Components Corporation ST-4ETB105	Cermet	0.25 W	0.25 W	100 ppm/°C	0.197 in	0.177 "	5 mm	4.5 mm	Top Adjustment	Gull Wing	Surface Mount	1	1 MOhms	20 %
