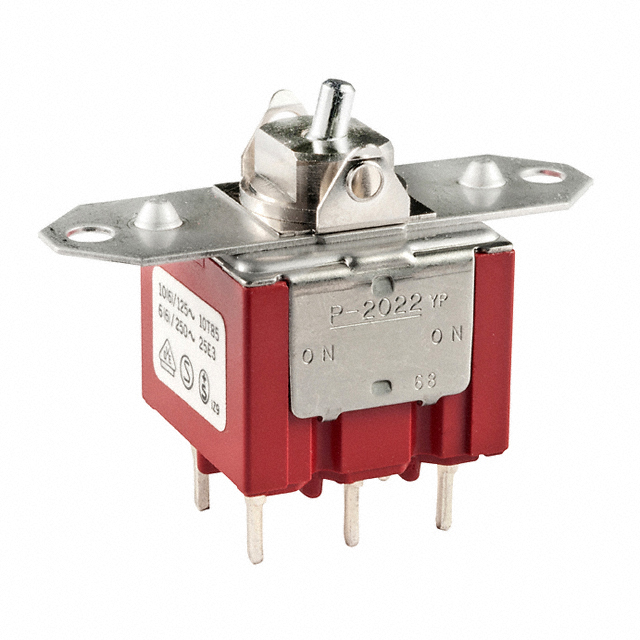

P2022Y Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH ROCKER DPDT 10A 125V
| Part | Mechanical Life | Electrical Life | Mounting Type | Voltage Rating - AC | Approval Agency | Circuit | Termination Style | Actuator Marking | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Type | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Current Rating (Amps) | Switch Function | Color - Actuator/Cap |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 50000 Cycles | 25000 Steps | Flange Panel Mount | 125 V | CSA UL VDE | DPDT | Solder Lug | Varies by Cap | 85 °C | -10 °C | Actuator Arm Cap Required | 16 mm | 28.5 mm | 10 A | On-On | |
 NKK Switches | 50000 Cycles | 25000 Steps | Flange Panel Mount | 125 V | CSA UL VDE | DPDT | PC Pin | Varies by Cap | 85 °C | -10 °C | Actuator Arm Cap Required | 16 mm | 28.5 mm | 10 A | On-On | |
 NKK Switches | 50000 Cycles | 25000 Steps | Flange Panel Mount | 125 V | CSA UL VDE | DPDT | Quick Connect | No Marking | 85 °C | -10 °C | Concave | 16 mm | 28.5 mm | 10 A | On-On | Red |
