89096 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

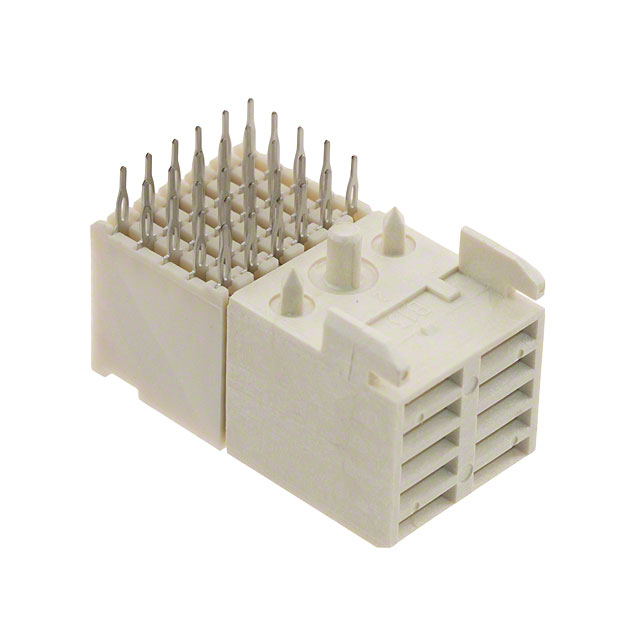

CONN RCPT BLADE PWR 10P EDGE MNT
| Part | Termination | Voltage Rating | Connector Style | Pitch [x] | Pitch [x] | Contact Layout, Typical | Material Flammability Rating | Number of Positions | Contact Finish | Mounting Type | Color | Features | Connector Type | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Number of Positions Loaded | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | Press-Fit | 1000 VDC | Blade Power | 4 mm | 0.157 in | 10 Power | UL94 V-0 | 10 | Gold | Board Edge Right Angle Through Hole | Natural | Board Guide Spacer | Receptacle Female Blade Sockets | 0.76 Ám | 30 Áin | 5 | All | 105 ░C | -55 °C | |
 Amphenol ICC (FCI) | Press-Fit | 1000 VDC | Blade Power | 4 mm | 0.157 in | 10 Power | UL94 V-0 | 10 | Gold | Board Edge Right Angle Through Hole | Natural | Board Guide Spacer | Receptacle Female Blade Sockets | 0.76 Ám | 30 Áin | 5 | All | 105 ░C | -55 °C | 3 A |
