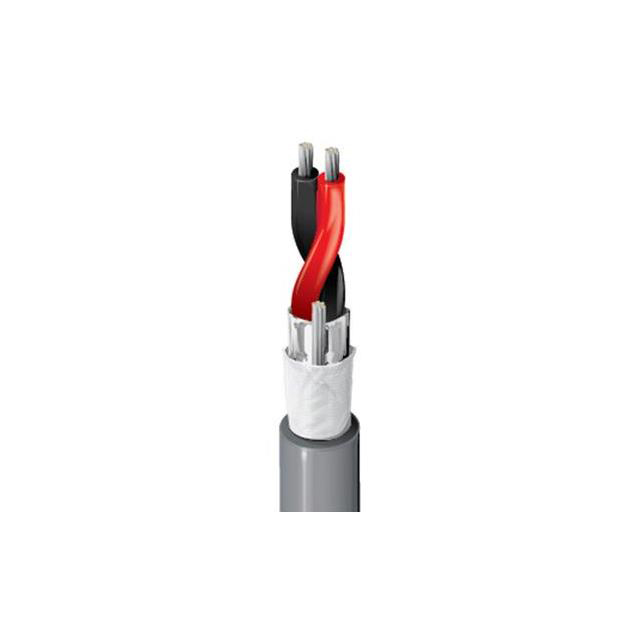

2451RW Series
Manufacturer: Belden Inc.
Beta
⌘K
2 #22 SHIELDED INDOOR/OUTDOOR
| Part | Shield Material | Shield Coverage | Length | Length | Features | Shield Type | Conductor Material | Conductor Insulation | Jacket (Insulation) Material | Ratings | Number of Conductors | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket Color | Cable Type | Usage | Conductor Strand [custom] | Conductor Strand [custom] | Voltage | Wire Gauge | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Polyester | 100 % | 304.8 m | 1000 ft | Drain Wire | Foil | Copper Tinned | Polypropylene (PP) | Chlorinated Polyethylene (CPE) | UL Style CMR | 2 | 0.584 mm | 0.023 in | Black | Multi-Conductor | Audio | 30 AWG | 7 | 300 VDC | 22 AWG | 0.158 in | 4.01 mm |
