Sigma 3655 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

Catalog

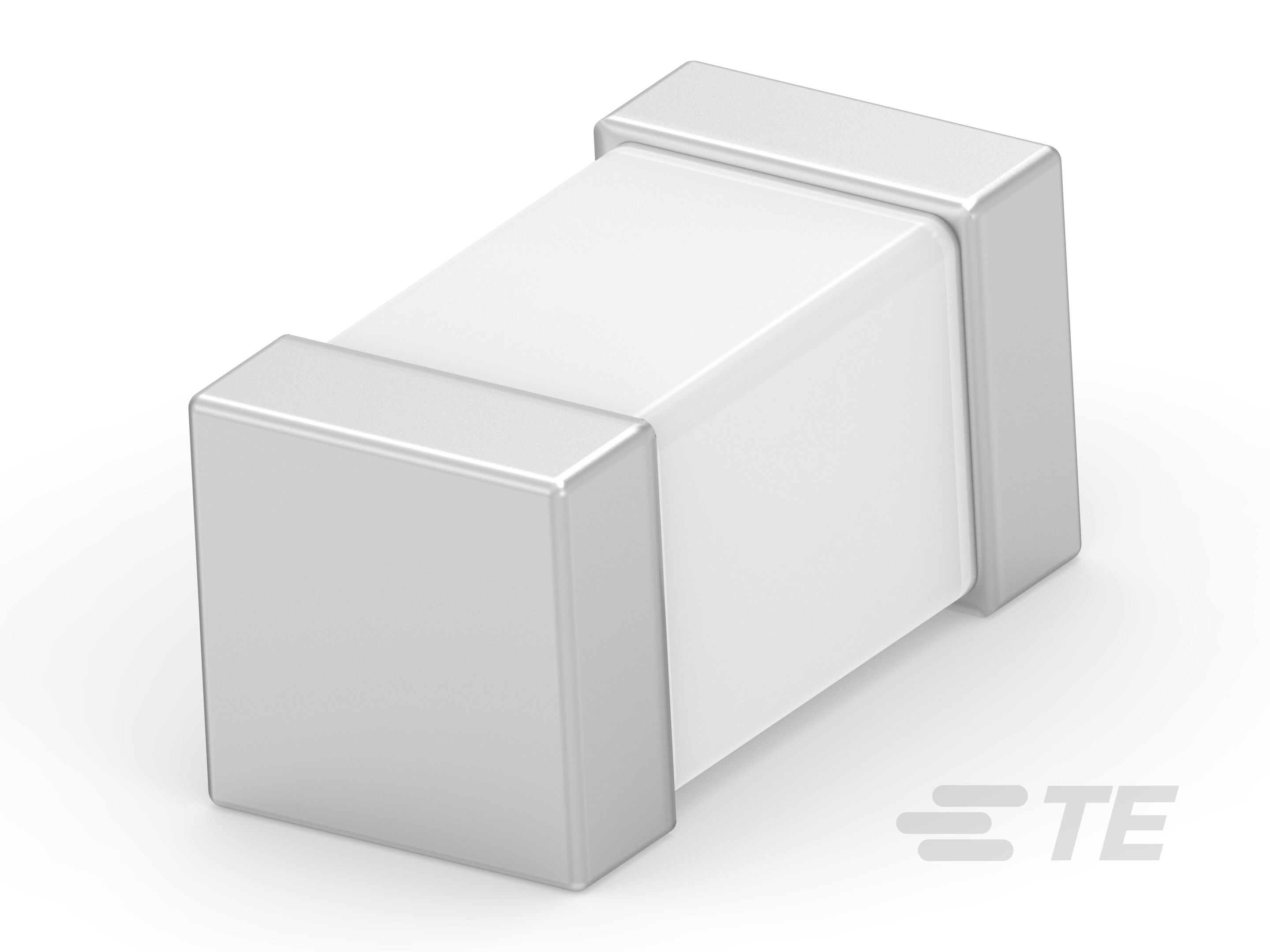

3655 0402 6N2 +/- 0.3NH T&R

...

Part	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	DC Resistance (DCR)	Q @ Freq [custom]	Q @ Freq [custom]	Type	Ratings	Supplier Device Package	Shielding	Inductance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Mounting Type	Package / Case	Frequency - Self Resonant	Current Rating (Amps)	Tolerance	Inductance Frequency - Test	Material - Core	Package / Case	Size / Dimension [y]	Q @ Freq	DC Resistance (DCR) [Max]
TE Connectivity AMP Connectors 36550402S6N2T	-55 C	125 °C	0.02 in	0.5 mm	0.039 "	1 mm	200 mOhm	8	100 MHz	Multilayer	AEC-Q200	0402	Unshielded	6.2 nH	0.026 in	0.65 mm	Surface Mount	0402 (1005 Metric)	3.9 GHz	600 mA	0.3 nH	100 MHz	Ceramic

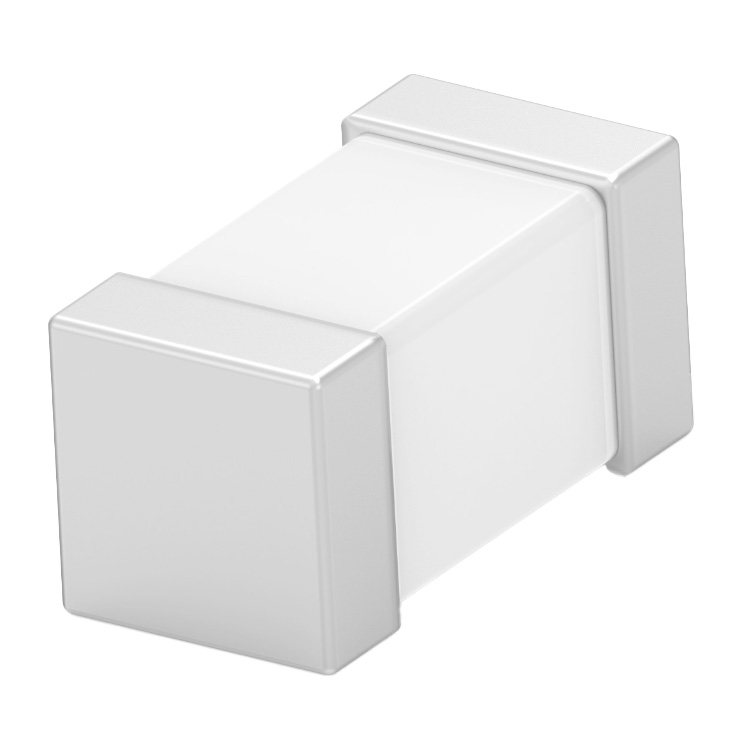

TE Connectivity AMP Connectors 36550603JR33T	-55 C	125 °C	0.031 in		0.063 "	1.6 mm				Multilayer	AEC-Q200		Unshielded	330 nH	0.039 in	1 mm	Surface Mount	0603	350 MHz	150 mA	5 %	50 MHz	Ceramic	1608 Metric	0.8 mm	8 50 MHz	2.8 Ohm

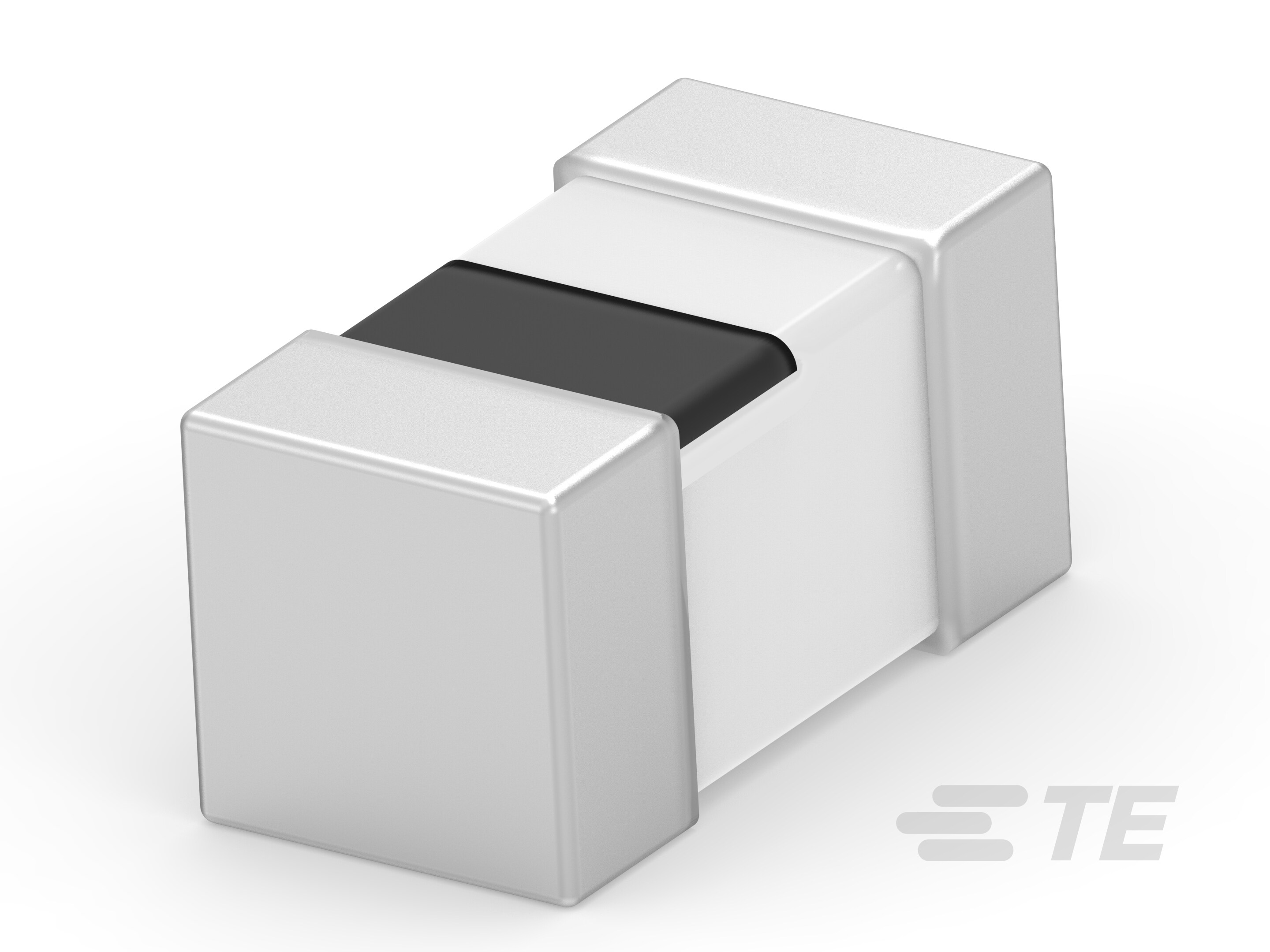

TE Connectivity AMP Connectors 36550402JR33T	-55 C	125 °C	0.02 in	0.5 mm	0.039 "	1 mm				Multilayer	AEC-Q200	0402	Unshielded	330 nH	0.026 in	0.65 mm	Surface Mount	0402 (1005 Metric)	350 MHz	80 mA	5 %	50 MHz	Ceramic			6 50 MHz	5 Ohm
TE Connectivity AMP Connectors 36550402S3N9T	-55 C	125 °C	0.02 in	0.5 mm	0.039 "	1 mm		8	100 MHz	Multilayer	AEC-Q200	0402	Unshielded	3.9 nH	0.026 in	0.65 mm	Surface Mount	0402 (1005 Metric)	4 GHz	700 mA	0.3 nH	100 MHz	Ceramic				160 mOhm
TE Connectivity AMP Connectors 36550603J27NT	-55 C	125 °C	0.031 in		0.063 "	1.6 mm				Multilayer	AEC-Q200		Unshielded	27 nH	0.039 in	1 mm	Surface Mount	0603	1.7 GHz	0.3 A	5 %	100 MHz	Ceramic	1608 Metric	0.8 mm	12 100 MHz	650 mOhm
TE Connectivity AMP Connectors 36550603J22NT	-55 C	125 °C	0.031 in		0.063 "	1.6 mm				Multilayer	AEC-Q200		Unshielded	22 nH	0.039 in	1 mm	Surface Mount	0603	2 GHz	0.3 A	5 %	100 MHz	Ceramic	1608 Metric	0.8 mm	12 100 MHz
TE Connectivity AMP Connectors 36550402S2N7T	-55 C	125 °C	0.02 in	0.5 mm	0.039 "	1 mm		8	100 MHz	Multilayer	AEC-Q200	0402	Unshielded	2.7 nH	0.026 in	0.65 mm	Surface Mount	0402 (1005 Metric)	6 GHz	800 mA	0.3 nH	100 MHz	Ceramic				120 mOhm
TE Connectivity AMP Connectors 36550603S1N8T	-55 C	125 °C	0.031 in		0.063 "	1.6 mm	100 mOhm	8	100 MHz	Multilayer	AEC-Q200		Unshielded	1.8 nH	0.039 in	1 mm	Surface Mount	0603	6 GHz	0.5 A	0.3 nH	100 MHz	Ceramic	1608 Metric	0.8 mm
TE Connectivity AMP Connectors 36550603JR15T	-55 C	125 °C	0.031 in		0.063 "	1.6 mm				Multilayer	AEC-Q200		Unshielded	150 nH	0.039 in	1 mm	Surface Mount	0603	500 MHz	0.2 A	5 %	50 MHz	Ceramic	1608 Metric	0.8 mm	8 50 MHz	1.6 Ohm
TE Connectivity AMP Connectors 36550402S5N6T	-55 C	125 °C	0.02 in	0.5 mm	0.039 "	1 mm	200 mOhm	8	100 MHz	Multilayer	AEC-Q200	0402	Unshielded	5.6 nH	0.026 in	0.65 mm	Surface Mount	0402 (1005 Metric)	4 GHz	600 mA	0.3 nH	100 MHz	Ceramic
