2842272 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

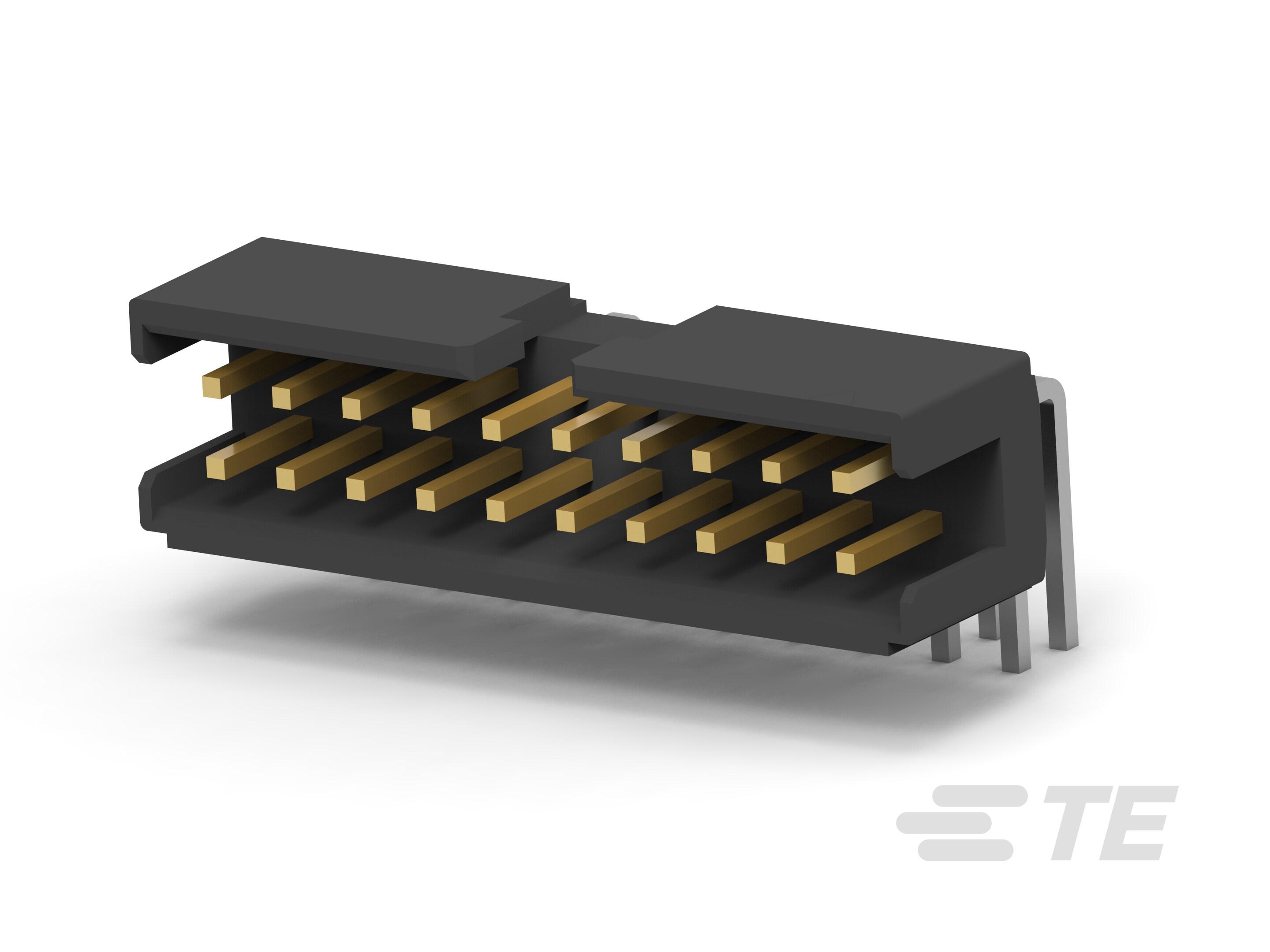

BOARD CONNECTOR, 28 CONTACT(S), 2 ROW(S), MALE, RIGHT ANGLE, SOLDER TERMINAL, BLACK INSULATOR

Part	Insulation Material	Voltage Rating	Contact Type	Material Flammability Rating	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Connector Type	Number of Positions Loaded	Current Rating (Amps)	Contact Finish - Mating	Shrouding	Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions	Contact Material	Insulation Color	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Row Spacing - Mating	Row Spacing - Mating	Contact Length - Mating	Contact Length - Mating	Style	Contact Finish - Post	Pitch - Mating [x]	Pitch - Mating [x]	Contact Shape
TE Connectivity Raychem Cable Protection 2-2842272-8	Thermoplastic	125 VAC	Male Pin	UL94 V-0	Through Hole Right Angle	125 °C	-40 °C	2	Header	All	2 A	Gold	Shrouded - 2 Wall	Solder	2 çm	78.7 çin	28	Copper Alloy	Black	2.5 mm	0.098 in	0.24 in	6.1 mm	30 Áin	0.76 Ám	Detent Lock	0.079 in	2 mm	3.7 mm	0.146 in	Board to Board Cable	Tin	0.079 in	2 mm	Square
TE Connectivity Raychem Cable Protection 3-2842272-4	Thermoplastic	125 VAC	Male Pin	UL94 V-0	Through Hole Right Angle	125 °C	-40 °C	2	Header	All	2 A	Gold	Shrouded - 2 Wall	Solder	2 çm	78.7 çin	34	Copper Alloy	Black	2.5 mm	0.098 in	0.24 in	6.1 mm	30 Áin	0.76 Ám	Detent Lock	0.079 in	2 mm	3.7 mm	0.146 in	Board to Board Cable	Tin	0.079 in	2 mm	Square
TE Connectivity Raychem Cable Protection 3-2842272-6	Thermoplastic	125 VAC	Male Pin	UL94 V-0	Through Hole Right Angle	125 °C	-40 °C	2	Header	All	2 A	Gold	Shrouded - 2 Wall	Solder	2 çm	78.7 çin	36	Copper Alloy	Black	2.5 mm	0.098 in	0.24 in	6.1 mm	30 Áin	0.76 Ám	Detent Lock	0.079 in	2 mm	3.7 mm	0.146 in	Board to Board Cable	Tin	0.079 in	2 mm	Square
TE Connectivity Raychem Cable Protection 2-2842272-4	Thermoplastic	125 VAC	Male Pin	UL94 V-0	Through Hole Right Angle	125 °C	-40 °C	2	Header	All	2 A	Gold	Shrouded - 2 Wall	Solder	2 çm	78.7 çin	24	Copper Alloy	Black	2.5 mm	0.098 in	0.24 in	6.1 mm	30 Áin	0.76 Ám	Detent Lock	0.079 in	2 mm	3.7 mm	0.146 in	Board to Board Cable	Tin	0.079 in	2 mm	Square
TE Connectivity Raychem Cable Protection 4-2842272-0	Thermoplastic	125 VAC	Male Pin	UL94 V-0	Through Hole Right Angle	125 °C	-40 °C	2	Header	All	2 A	Gold	Shrouded - 2 Wall	Solder	2 çm	78.7 çin	40	Copper Alloy	Black	2.5 mm	0.098 in	0.24 in	6.1 mm	30 Áin	0.76 Ám	Detent Lock	0.079 in	2 mm	3.7 mm	0.146 in	Board to Board Cable	Tin	0.079 in	2 mm	Square
TE Connectivity Raychem Cable Protection 4-2842272-2	Thermoplastic	125 VAC	Male Pin	UL94 V-0	Through Hole Right Angle	125 °C	-40 °C	2	Header	All	2 A	Gold	Shrouded - 2 Wall	Solder	2 çm	78.7 çin	42	Copper Alloy	Black	2.5 mm	0.098 in	0.24 in	6.1 mm	30 Áin	0.76 Ám	Detent Lock	0.079 in	2 mm	3.7 mm	0.146 in	Board to Board Cable	Tin	0.079 in	2 mm	Square
TE Connectivity Raychem Cable Protection 1-2842272-4	Thermoplastic	125 VAC	Male Pin	UL94 V-0	Through Hole Right Angle	125 °C	-40 °C	2	Header	All	2 A	Gold	Shrouded - 2 Wall	Solder	2 çm	78.7 çin	14	Copper Alloy	Black	2.5 mm	0.098 in	0.24 in	6.1 mm	30 Áin	0.76 Ám	Detent Lock	0.079 in	2 mm	3.7 mm	0.146 in	Board to Board Cable	Tin	0.079 in	2 mm	Square
TE Connectivity Raychem Cable Protection 3-2842272-0	Thermoplastic	125 VAC	Male Pin	UL94 V-0	Through Hole Right Angle	125 °C	-40 °C	2	Header	All	2 A	Gold	Shrouded - 2 Wall	Solder	2 çm	78.7 çin	30	Copper Alloy	Black	2.5 mm	0.098 in	0.24 in	6.1 mm	30 Áin	0.76 Ám	Detent Lock	0.079 in	2 mm	3.7 mm	0.146 in	Board to Board Cable	Tin	0.079 in	2 mm	Square
TE Connectivity Raychem Cable Protection 1-2842272-8	Thermoplastic	125 VAC	Male Pin	UL94 V-0	Through Hole Right Angle	125 °C	-40 °C	2	Header	All	2 A	Gold	Shrouded - 2 Wall	Solder	2 çm	78.7 çin	18	Copper Alloy	Black	2.5 mm	0.098 in	0.24 in	6.1 mm	30 Áin	0.76 Ám	Detent Lock	0.079 in	2 mm	3.7 mm	0.146 in	Board to Board Cable	Tin	0.079 in	2 mm	Square
TE Connectivity Raychem Cable Protection 5-2842272-0	Thermoplastic	125 VAC	Male Pin	UL94 V-0	Through Hole Right Angle	125 °C	-40 °C	2	Header	All	2 A	Gold	Shrouded - 2 Wall	Solder	2 çm	78.7 çin	50	Copper Alloy	Black	2.5 mm	0.098 in	0.24 in	6.1 mm	30 Áin	0.76 Ám	Detent Lock	0.079 in	2 mm	3.7 mm	0.146 in	Board to Board Cable	Tin	0.079 in	2 mm	Square
