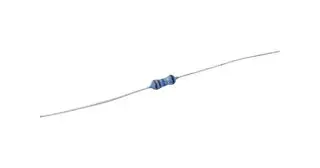

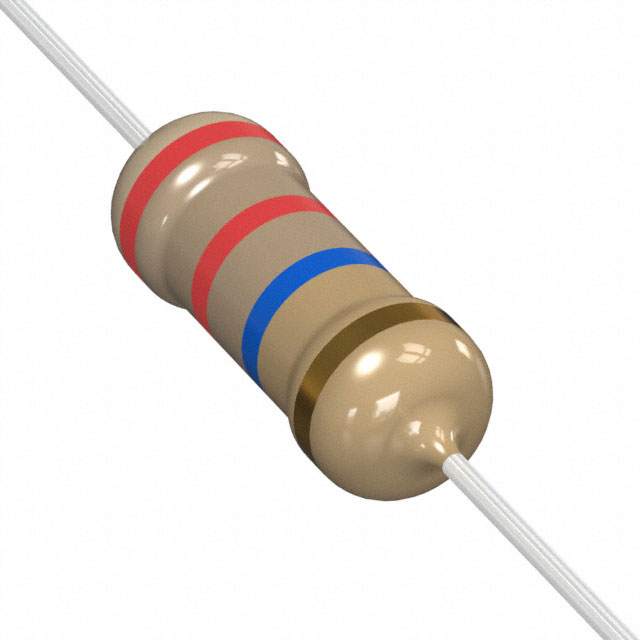

NEOHM RGP Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

THICK FILM RESISTORS - THROUGH HOLE RGP0207CH 5% 10M

Part	Package / Case	Resistance	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [x]	Features	Number of Terminations [custom]	Power (Watts)	Power (Watts)	Temperature Coefficient	Supplier Device Package	Composition	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]
TE Connectivity AMP Connectors RGP0207CHJ10M	Axial	10 MOhms	6.5 mm	2.5 mm	0.098 in	0.256 in	High Voltage	2	0.25 W	0.25 W	350 ppm/°C	Axial	Thick Film	1 %	155 C	-55 C
TE Connectivity AMP Connectors RGP0207CHJ33M	Axial	33 MOhms	6.5 mm	2.5 mm	0.098 in	0.256 in	High Voltage	2	0.25 W	0.25 W	350 ppm/°C	Axial	Thick Film	1 %	155 C	-55 C
TE Connectivity AMP Connectors RGP0207CHJ15M	Axial	15 MOhms	6.5 mm	2.5 mm	0.098 in	0.256 in	High Voltage	2	0.25 W	0.25 W	350 ppm/°C	Axial	Thick Film	1 %	155 C	-55 C
TE Connectivity AMP Connectors RGP0207CHJ100M	Axial	100 MOhms	6.5 mm	2.5 mm	0.098 in	0.256 in	High Voltage	2	0.25 W	0.25 W	350 ppm/°C	Axial	Thick Film	1 %	155 C	-55 C
TE Connectivity AMP Connectors RGP0207CHJ82M	Axial	82 MOhms	6.5 mm	2.5 mm	0.098 in	0.256 in	High Voltage	2	0.25 W	0.25 W	350 ppm/°C	Axial	Thick Film	1 %	155 C	-55 C
TE Connectivity AMP Connectors RGP0207CHJ22M	Axial	22 MOhms	6.5 mm	2.5 mm	0.098 in	0.256 in	High Voltage	2	0.25 W	0.25 W	350 ppm/°C	Axial	Thick Film	1 %	155 C	-55 C
TE Connectivity AMP Connectors RGP0207CHJ68M	Axial	68 MOhms	6.5 mm	2.5 mm	0.098 in	0.256 in	High Voltage	2	0.25 W	0.25 W	350 ppm/°C	Axial	Thick Film	1 %	155 C	-55 C
TE Connectivity AMP Connectors RGP0207CHJ47M	Axial	47 MOhms	6.5 mm	2.5 mm	0.098 in	0.256 in	High Voltage	2	0.25 W	0.25 W	350 ppm/°C	Axial	Thick Film	1 %	155 C	-55 C
TE Connectivity AMP Connectors RGP0207CHJ470M	Axial	470 MOhms	6.5 mm	2.5 mm	0.098 in	0.256 in	High Voltage	2	0.25 W	0.25 W	350 ppm/°C	Axial	Thick Film	1 %	155 C	-55 C
TE Connectivity AMP Connectors RGP0207CHK1G0	Axial	1 GOhms	6.5 mm	2.5 mm	0.098 in	0.256 in	High Voltage	2	0.25 W	0.25 W	350 ppm/°C	Axial	Thick Film	10 %	155 C	-55 C
