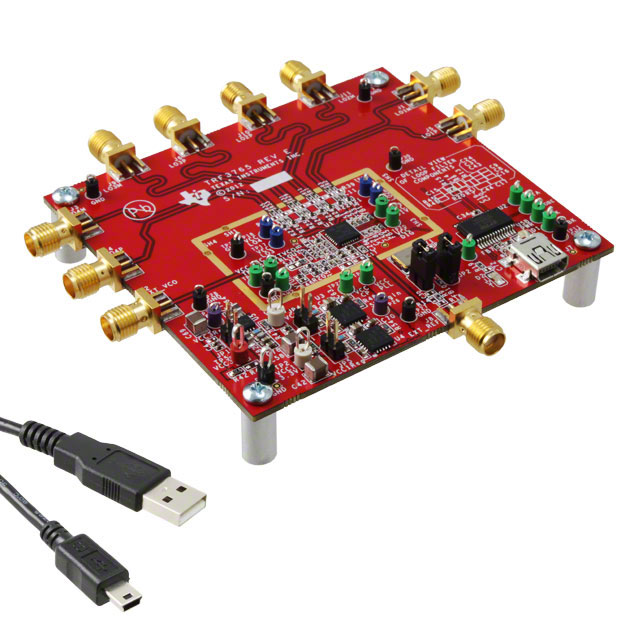

TRF3765 Series

300M-4800MHz Low Noise Integer-N/Fractional-N PLL with Integrated VCO and up to 8 Outputs

Catalog

300M-4800MHz Low Noise Integer-N/Fractional-N PLL with Integrated VCO and up to 8 Outputs

Part	PLL	Input	Divider/Multiplier	Supplier Device Package	Frequency - Max [Max]	Number of Circuits	Ratio - Input:Output	Voltage - Supply [Max]	Voltage - Supply [Min]	Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Differential - Input:Output	Mounting Type	Output
Texas Instruments TRF3765IRHBT		Clock	Yes/No	32-VQFN (5x5)	4.8 GHz	1	1:4	3.6 V	3 V	Integer-N/Fractional-N VCO	32-VFQFN Exposed Pad	85 °C	-40 °C	No/Yes	Surface Mount	Clock
Texas Instruments TRF3765IRHBR		Clock	Yes/No	32-VQFN (5x5)	4.8 GHz	1	1:4	3.6 V	3 V	Integer-N/Fractional-N VCO	32-VFQFN Exposed Pad	85 °C	-40 °C	No/Yes	Surface Mount	Clock

Catalog

300M-4800MHz Low Noise Integer-N/Fractional-N PLL with Integrated VCO and up to 8 Outputs

Key Features

• Output Frequencies: 300 MHz to 4.8 GHzLow-Noise VCO: –133 dBc/Hz(1-MHz Offset, fOUT= 2.65 GHz)13-/16-Bit Reference/Feedback Divider25-Bit Fractional-N and Integer-N PLLLow RMS Jitter: 0.35 psInput Reference Frequency Range:0.5 MHz to 350 MHzProgrammable Output Divide-by-1/-2/-4/-8Four Differential LO OutputsExternal VCO Input with Programmable VCOOn/Off ControlOutput Frequencies: 300 MHz to 4.8 GHzLow-Noise VCO: –133 dBc/Hz(1-MHz Offset, fOUT= 2.65 GHz)13-/16-Bit Reference/Feedback Divider25-Bit Fractional-N and Integer-N PLLLow RMS Jitter: 0.35 psInput Reference Frequency Range:0.5 MHz to 350 MHzProgrammable Output Divide-by-1/-2/-4/-8Four Differential LO OutputsExternal VCO Input with Programmable VCOOn/Off Control

Description

The TRF3765 is a wideband Integer-N/Fractional-N frequency synthesizer with an integrated, wideband voltage-controlled oscillator (VCO). Programmable output dividers enable continuous frequency coverage from 300 MHz to 4.8 GHz. Four separate differential, open-collector RF outputs allow multiple devices to be driven in parallel without the need of external splitters. The TRF3765 also accepts external VCO input signals and allows on/off control through a programmable control output. For maximum flexibility and wide reference frequency range, wide-range divide ratio settings are programmable and an off-chip loop filter can be used. The TRF3765 is available in an RHB-32 QFN package. The TRF3765 is a wideband Integer-N/Fractional-N frequency synthesizer with an integrated, wideband voltage-controlled oscillator (VCO). Programmable output dividers enable continuous frequency coverage from 300 MHz to 4.8 GHz. Four separate differential, open-collector RF outputs allow multiple devices to be driven in parallel without the need of external splitters. The TRF3765 also accepts external VCO input signals and allows on/off control through a programmable control output. For maximum flexibility and wide reference frequency range, wide-range divide ratio settings are programmable and an off-chip loop filter can be used. The TRF3765 is available in an RHB-32 QFN package.
