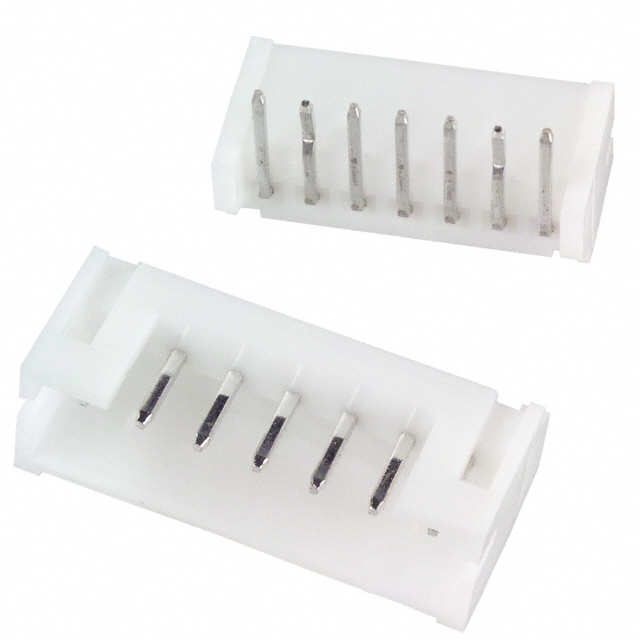

S7B-PH-K Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER R/A 7POS 2MM
| Part | Insulation Color | Mounting Type | Contact Type | Material Flammability Rating | Shrouding | Current Rating (Amps) | Contact Length - Post [x] | Contact Length - Post | Style | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Number of Positions Loaded | Pitch - Mating | Pitch - Mating | Contact Finish - Post | Termination | Voltage Rating | Contact Shape | Insulation Height | Insulation Height | Insulation Material | Connector Type | Number of Rows | Contact Material | Fastening Type | Contact Length - Mating | Contact Length - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Gray | Right Angle Through Hole | Male Pin | UL94 V-0 | Shrouded - 4 Wall | 2 A | 0.134 " | 3.4 mm | Board to Cable/Wire | 85 °C | -25 °C | 7 | All | 0.079 " | 2 mm | Tin | Press-Fit Solder | 100 V | Square | 4.8 mm | 0.189 in | Nylon 6/6 Polyamide (PA66) | Header | 1 | Copper Alloy | Detent Lock | ||
 JST Sales America Inc. | Natural | Right Angle Through Hole | Male Pin | UL94 V-0 | Shrouded - 4 Wall | 2 A | 0.134 " | 3.4 mm | Board to Cable/Wire | 85 °C | -25 °C | 7 | All | 0.079 " | 2 mm | Tin | Press-Fit Solder | 100 V | Square | 4.8 mm | 0.189 in | Nylon 6/6 Polyamide (PA66) | Header | 1 | Brass | Detent Lock | 0.13 in | 3.3 mm |
