4832 Series

Catalog

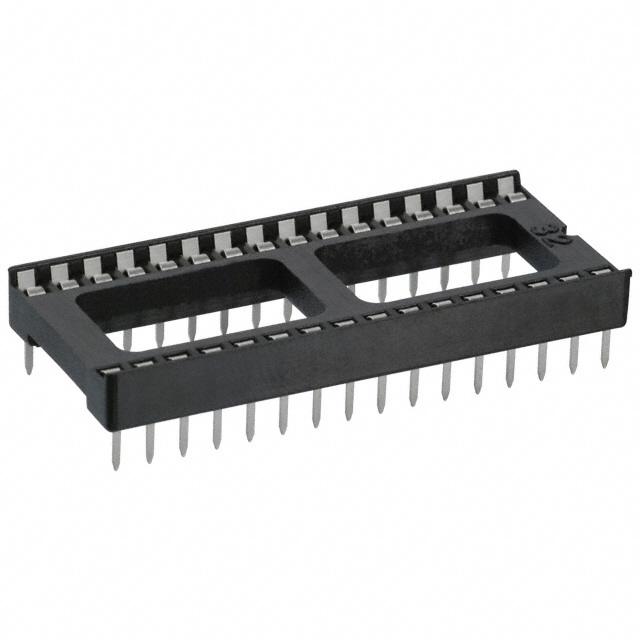

IC & COMPONENT SOCKET, 32 CONTACTS, DIP SOCKET, 2.54 MM, 4800 SERIES, 15.24 MM, PHOSPHOR BRONZE

Part	Current Rating (Amps)	Material Flammability Rating	Termination	Contact Material - Post	Pitch - Post	Pitch - Post	Housing Material	Features	Type [custom]	Type [custom]	Type	Contact Material - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Number of Positions or Pins (Grid)	Mounting Type
3M Electronic Specialty 4832-6004-CP	1 A	UL94 V-0	Solder	Phosphor Bronze	0.1 in	2.54 mm	Polyester Glass Filled	Open Frame	15.24 mm	0.6 in	DIP	Phosphor Bronze	0.9 µm	35.4 µin	35 µin	0.9 µm	85 °C	-25 °C	Tin	0.1 "	2.54 mm	32	Through Hole
3M Electronic Specialty 4832-6000-CP	1 A	UL94 V-0	Solder	Phosphor Bronze	0.1 in	2.54 mm	Polyester Glass Filled	Open Frame	15.24 mm	0.6 in	DIP	Phosphor Bronze	0.9 µm	35.4 µin	35 µin	0.9 µm	85 °C	-25 °C	Tin	0.1 "	2.54 mm	32	Through Hole
