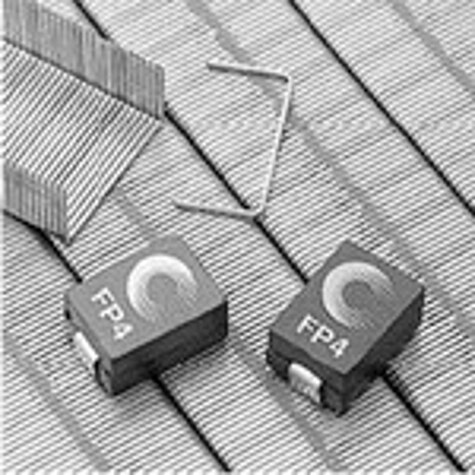

Power Inductors - SMD 0.09uH 72A 0.423mOhms
Power Inductors - SMD 0.09uH 72A 0.423mOhms
| Part | Type | Material - Core | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Mounting Type | Current - Saturation (Isat) | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Inductance | Shielding | Inductance Frequency - Test | Package / Case | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Tolerance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Eaton - Electronics Division | Drum Core Wirewound | Ferrite | -40 C | 155 C | 33 A | Surface Mount | 72 A | 0.197 in | 5 mm | 90 nH | Unshielded | 100 kHz | Nonstandard | 0.268 " | 0.402 in | 6.8 mm | 10.2 mm | 15 % |
