Sda0 Series Series

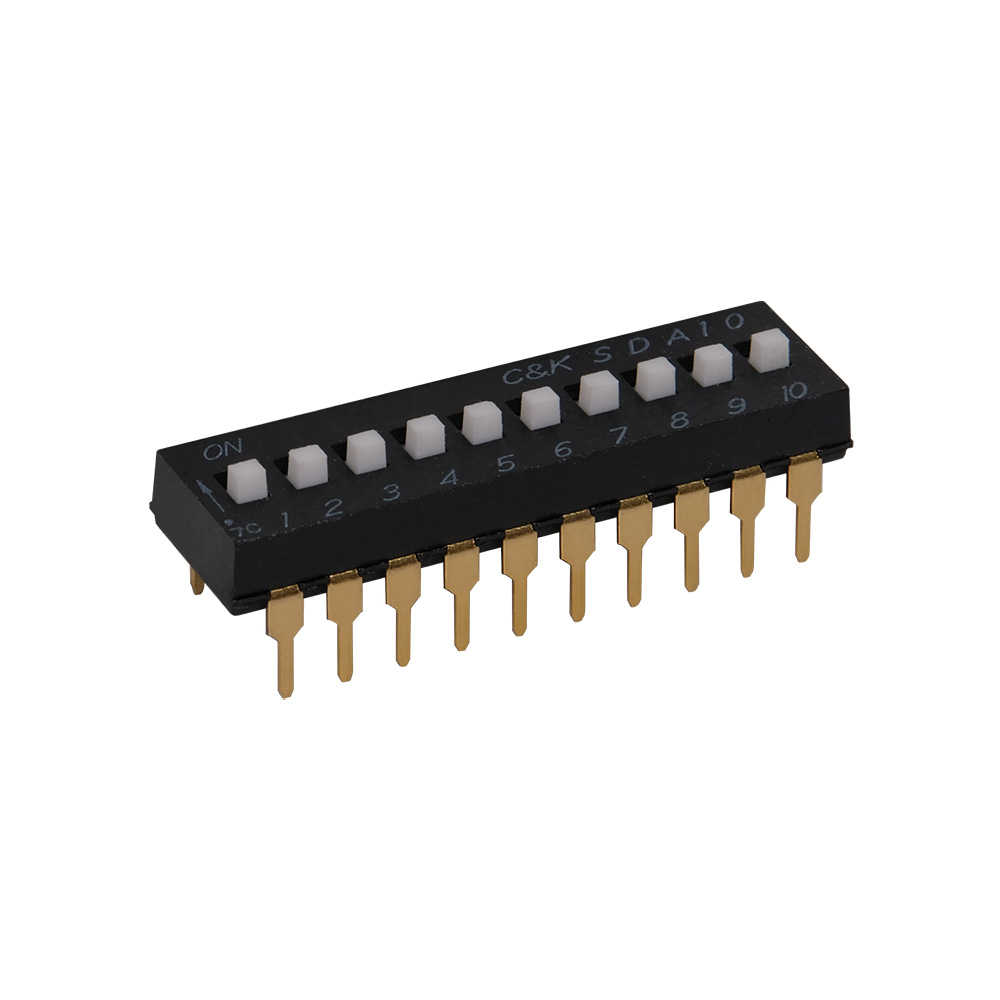

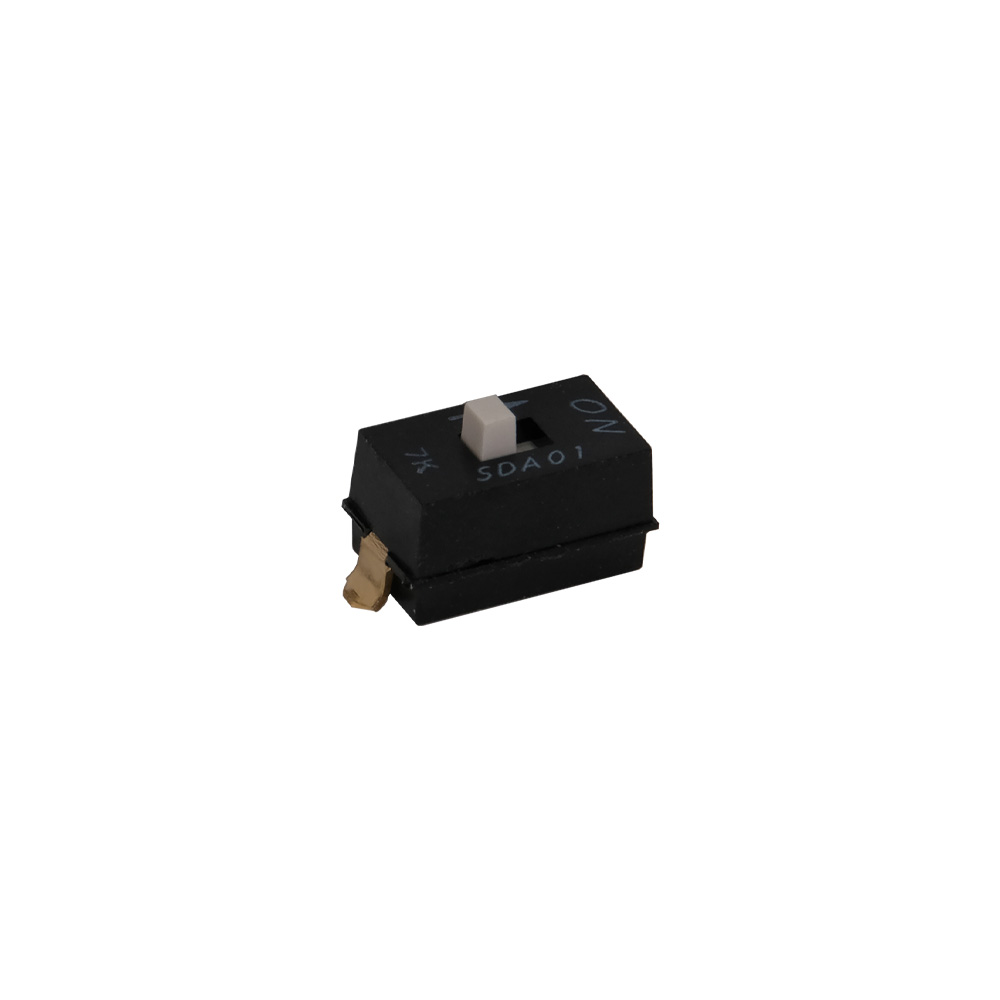

DIP Switches / SIP Switches Sw DIP ON OFF SPST 6 Flsh Slid 0.1A 50VD Low Profile DIP

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

DIP Switches / SIP Switches Sw DIP ON OFF SPST 6 Flsh Slid 0.1A 50VD Low Profile DIP

Part	Voltage Rating	Body Material	Contact Finish	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Actuator Level	Pitch [x]	Pitch	Pitch [x]	Contact Material	Number of Positions	Circuit	Electrical Life	Mounting Type	Length [x]	Length [x]	Actuator Type	Height Above Board	Height Above Board	Termination Style	Features	Length	Length	Height Above Board [z]	Height Above Board [z]	Length
Littelfuse/Commercial Vehicle Products SDA09H0SBD	24 VDC	Polyphenylene Sulfide (PPS)	Gold	1000 Cycles	85 °C	-40 °C	25 mA	Flush Recessed	0.1 in	Full	2.54 mm	Beryllium Copper	9	SPST	1000 Cycles	Surface Mount	0.978 in	24.84 mm	Slide (Standard)	0.175 in	4.45 mm	Gull Wing

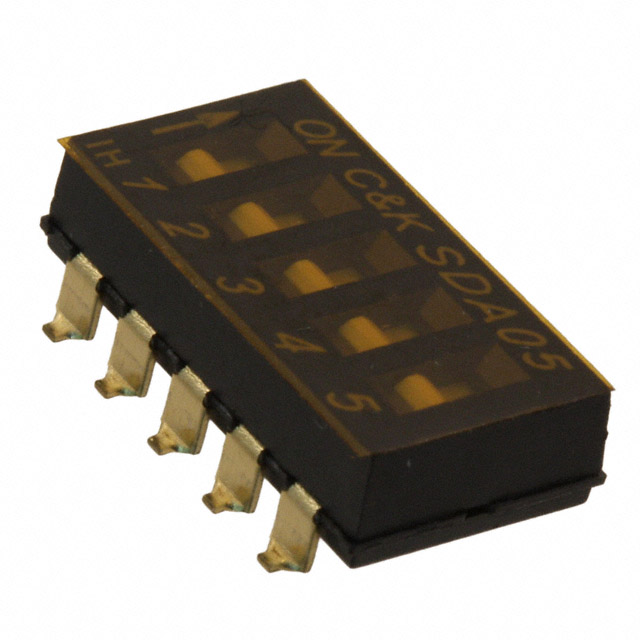

Littelfuse/Commercial Vehicle Products SDA05H0SBR	24 VDC	Polyphenylene Sulfide (PPS)	Gold	1000 Cycles	85 °C	-40 °C	25 mA	Flush Recessed	0.1 in	Full	2.54 mm	Beryllium Copper		SPST	1000 Cycles	Surface Mount			Slide (Standard)	0.175 in	4.45 mm	Gull Wing	Tape Seal	14.68 mm	0.578 "

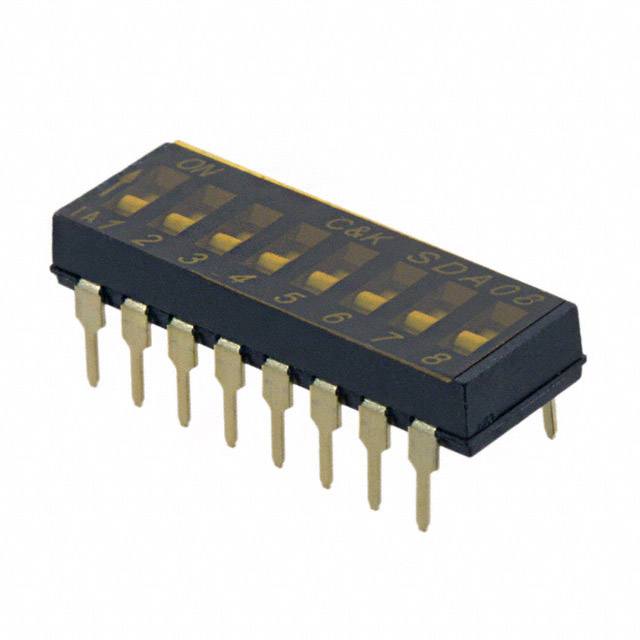

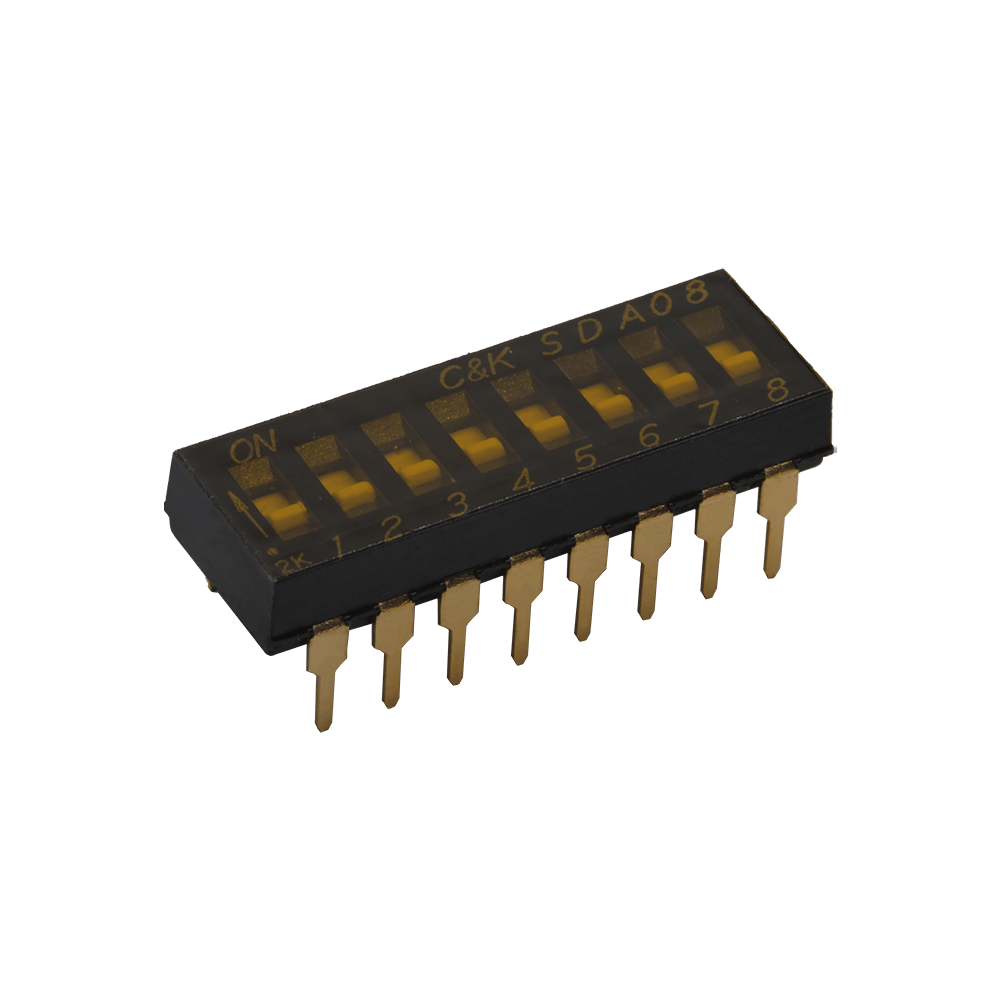

Littelfuse/Commercial Vehicle Products SDA08H0B	24 VDC	Polyphenylene Sulfide (PPS)	Gold	1000 Cycles	85 °C	-40 °C	25 mA	Flush Recessed	0.1 in	Full	2.54 mm	Beryllium Copper	8	SPST	1000 Cycles	Through Hole			Slide (Standard)			PC Pin	Tape Seal	22.26 mm	0.876 "	4.65 mm	0.183 "
Littelfuse/Commercial Vehicle Products SDA05H1BD	24 VDC	Polyphenylene Sulfide (PPS)	Gold	1000 Cycles	85 °C	-40 °C	25 mA	Raised	0.1 in	Full	2.54 mm	Beryllium Copper		SPST	1000 Cycles	Through Hole			Slide (Standard)	0.228 in	5.8 mm	PC Pin		14.68 mm	0.578 "
Littelfuse/Commercial Vehicle Products SDA05H0SBD	24 VDC	Polyphenylene Sulfide (PPS)	Gold	1000 Cycles	85 °C	-40 °C	25 mA	Flush Recessed	0.1 in	Full	2.54 mm	Beryllium Copper		SPST	1000 Cycles	Surface Mount			Slide (Standard)	0.175 in	4.45 mm	Gull Wing		14.68 mm	0.578 "

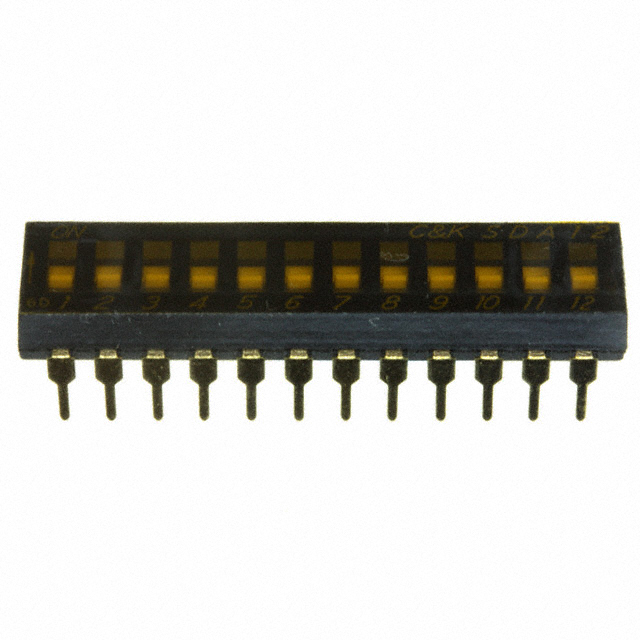

Littelfuse/Commercial Vehicle Products SDA12H0B	24 VDC	Polyphenylene Sulfide (PPS)	Gold	1000 Cycles	85 °C	-40 °C	25 mA	Flush Recessed	0.1 in	Full	2.54 mm	Beryllium Copper	12	SPST	1000 Cycles	Through Hole			Slide (Standard)			PC Pin	Tape Seal	32.5 mm		4.65 mm	0.183 "	1.279 in
Littelfuse/Commercial Vehicle Products SDA12H1BD	24 VDC	Polyphenylene Sulfide (PPS)	Gold	1000 Cycles	85 °C	-40 °C	25 mA	Raised	0.1 in	Full	2.54 mm	Beryllium Copper	12	SPST	1000 Cycles	Through Hole			Slide (Standard)	0.228 in	5.8 mm	PC Pin		32.5 mm				1.279 in

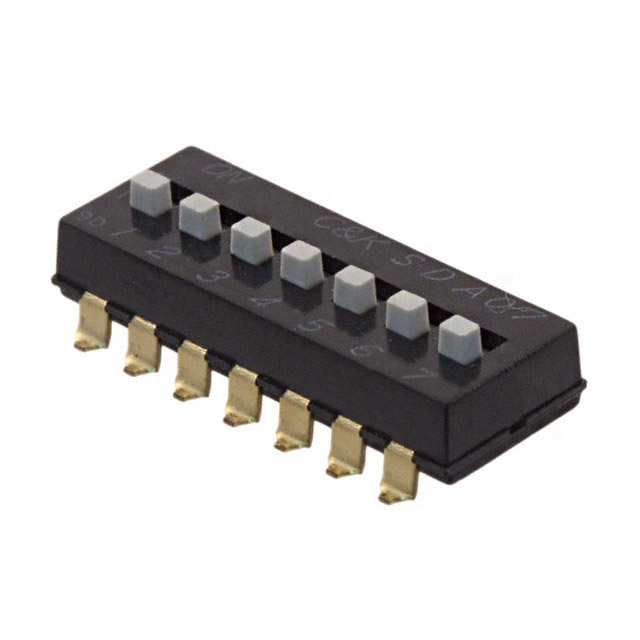

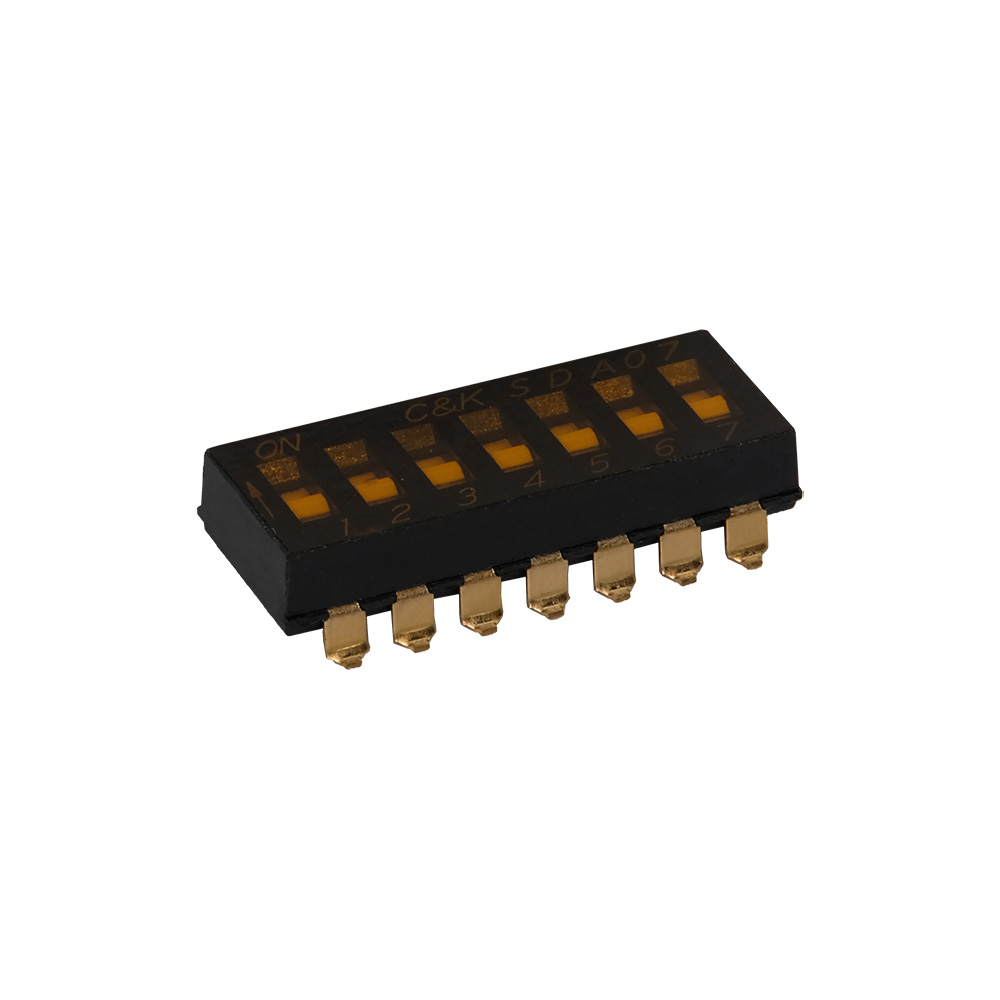

Littelfuse/Commercial Vehicle Products SDA07H1SBD	24 VDC	Polyphenylene Sulfide (PPS)	Gold	1000 Cycles	85 °C	-40 °C	25 mA	Raised	0.1 in	Full	2.54 mm	Beryllium Copper	7	SPST	1000 Cycles	Surface Mount			Slide (Standard)		5.45 mm	Gull Wing		19.76 mm	0.778 in		0.214 in

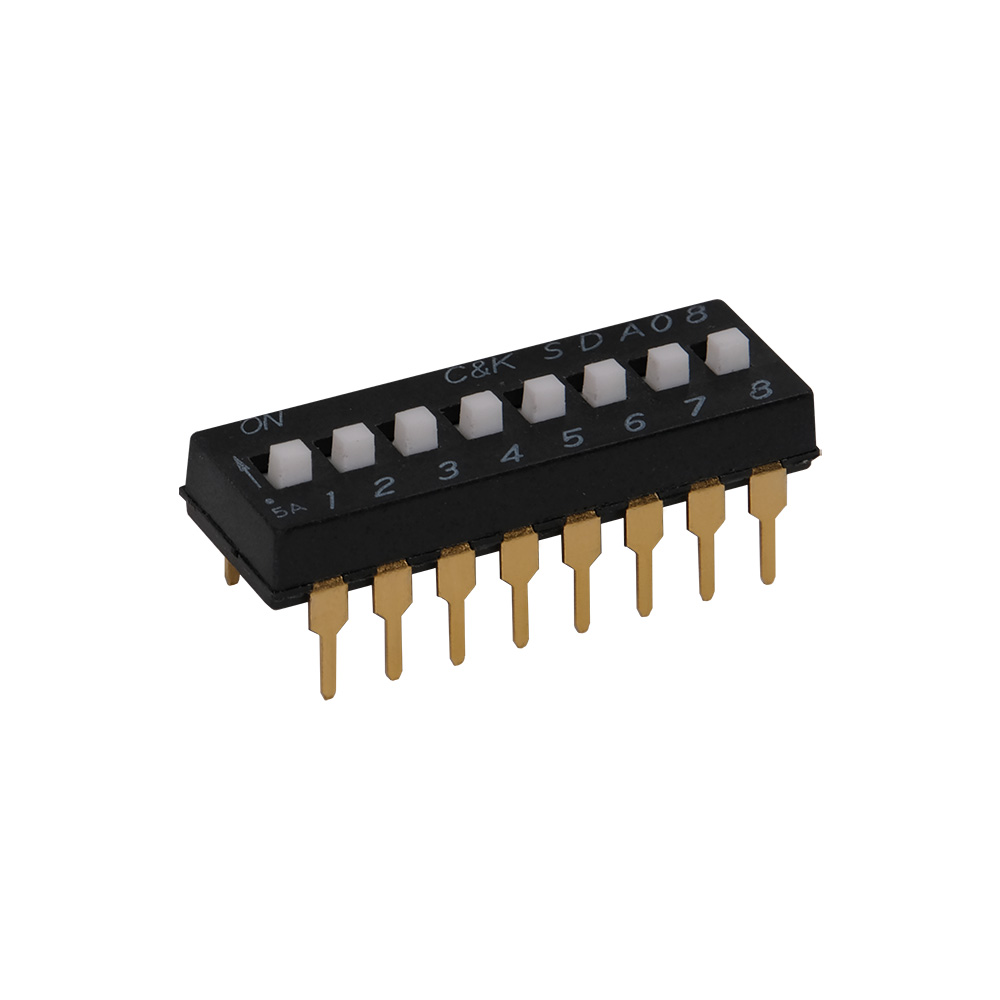

Littelfuse/Commercial Vehicle Products SDA08H1BD	24 VDC	Polyphenylene Sulfide (PPS)	Gold	1000 Cycles	85 °C	-40 °C	25 mA	Raised	0.1 in	Full	2.54 mm	Beryllium Copper	8	SPST	1000 Cycles	Through Hole			Slide (Standard)	0.228 in	5.8 mm	PC Pin		22.26 mm	0.876 "

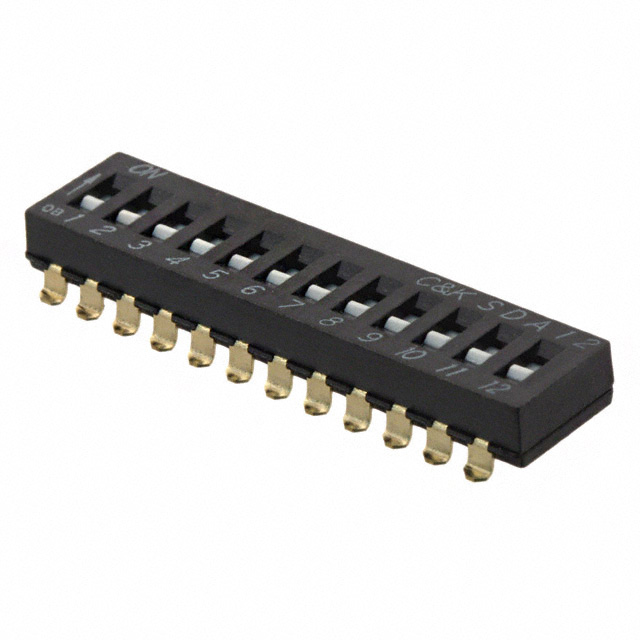

Littelfuse/Commercial Vehicle Products SDA12H0SBD	24 VDC	Polyphenylene Sulfide (PPS)	Gold	1000 Cycles	85 °C	-40 °C	25 mA	Flush Recessed	0.1 in	Full	2.54 mm	Beryllium Copper	12	SPST	1000 Cycles	Surface Mount			Slide (Standard)	0.175 in	4.45 mm	Gull Wing		32.5 mm				1.279 in

Catalog

DIP Switches / SIP Switches Sw DIP ON OFF SPST 6 Flsh Slid 0.1A 50VD Low Profile DIP

Key Features

• Low profile design saves space

• Thru-hole and surface mount models

• Tape and reel packaging available

Description

C&K’s SDA series low profile DIP switches are used by designers as address switches for industrial controls, for logic switching in computers and peripherals and for function controlling in numerous additional applications. The low-profile design of the switches save space and come available in thru-hole and surface mount models, with tape and reel packaging available.
