7302 Series

Catalog

RELAY REED DPST 500MA 12V

Part	Coil Resistance	Operate Time	Coil Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Release Time	Mounting Type	Contact Rating (Current)	Coil Type	Must Release Voltage	Contact Form	Switching Voltage	Coil Current	Must Operate Voltage	Features
COTO TECHNOLOGY 7302-12-1000	640 Ohms	1 ms	12 VDC	85 °C	-20 ░C	PC Pin	0.1 ms	Through Hole	0.5 A	Non Latching	1 VDC	DPST-NO (2 Form A)	500 VAC 500 VDC	18.8 mA	9 VDC
COTO TECHNOLOGY 7302-12-1100	640 Ohms	1 ms	12 VDC	85 °C	-20 ░C	PC Pin	0.1 ms	Through Hole	0.5 A	Non Latching	1 VDC	DPST-NO (2 Form A)	500 VAC 500 VDC	18.8 mA	9 VDC
COTO TECHNOLOGY 7302-05-1010	100 Ohms	1 ms	5 VDC	85 °C	-20 ░C	PC Pin	0.1 ms	Through Hole	0.5 A	Non Latching	0.4 VDC	DPST-NO (2 Form A)	500 VAC 500 VDC	50 mA	3.75 VDC	Electrostatic Shield

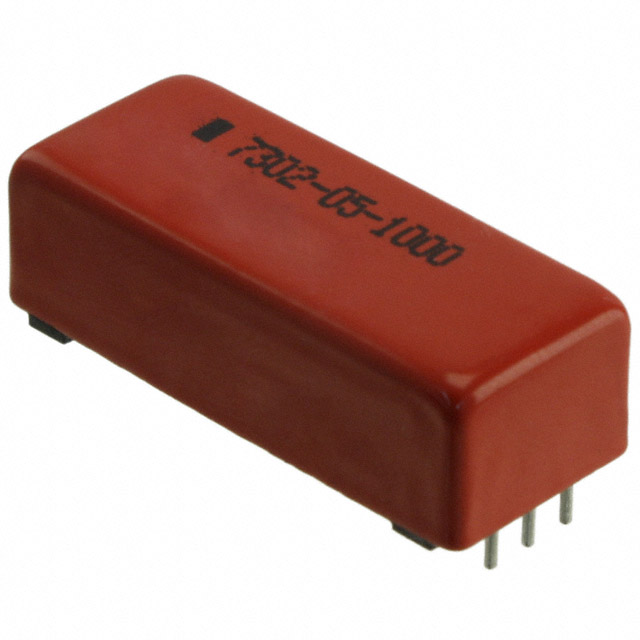

COTO TECHNOLOGY 7302-05-1000	100 Ohms	1 ms	5 VDC	85 °C	-20 ░C	PC Pin	0.1 ms	Through Hole	0.5 A	Non Latching	0.4 VDC	DPST-NO (2 Form A)	500 VAC 500 VDC	50 mA	3.75 VDC

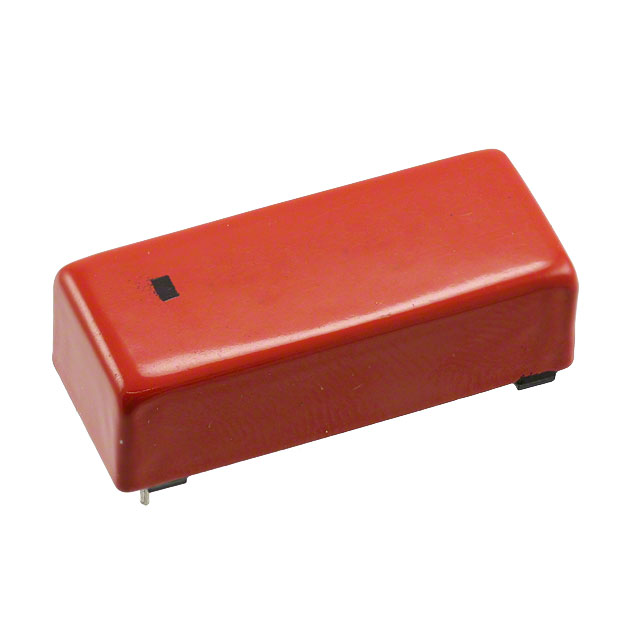

COTO TECHNOLOGY 7302-24-1010	2.45 kOhms	1 ms	24 VDC	85 °C	-20 ░C	PC Pin	0.1 ms	Through Hole	0.5 A	Non Latching	2 VDC	DPST-NO (2 Form A)	500 VAC 500 VDC	9.8 mA	18 VDC	Electrostatic Shield
