BRS Series

Catalog

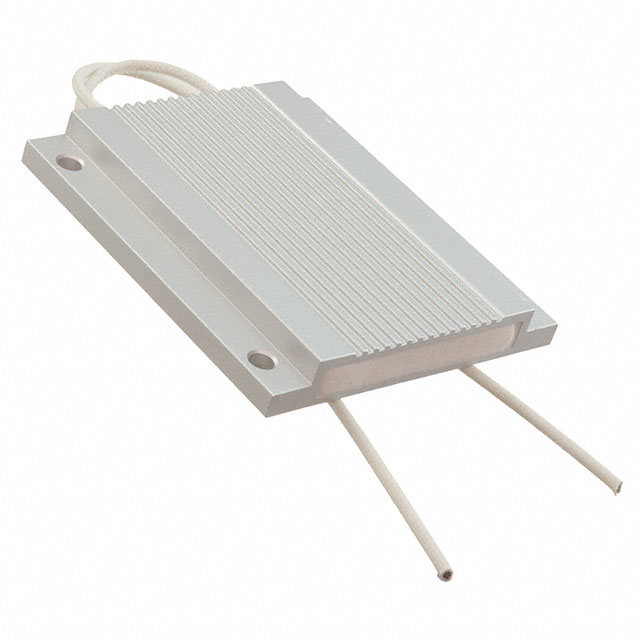

WIREWOUND RESISTORS - CHASSIS MOUNT BRS100 5 OHM 5%

Part	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Mounting Feature	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Power (Watts)	Features	Package / Case	Resistance	Height - Seated (Max) [Max]	Height - Seated (Max)	Composition	Lead Style	Temperature Coefficient
Bourns Inc. BRS100-5RJ8	200 °C	-55 C	5 %	Screw Holes	3.15 in	80 mm	90 mm	3.543 in	100 W	Moisture Resistant	Rectangular Case	5 Ohms	0.472 in	12 mm	Metal Clad	Wire Leads	260 ppm/°C
Bourns Inc. BRS300-5RJ8	200 °C	-55 C	5 %	Screw Holes	3.15 in	80 mm	210 mm	8.268 in	300 W	Moisture Resistant	Rectangular Case	5 Ohms	0.472 in	12 mm	Metal Clad	Wire Leads	260 ppm/°C
Bourns Inc. BRS100-10RJ8	200 °C	-55 C	5 %	Screw Holes	3.15 in	80 mm	90 mm	3.543 in	100 W	Moisture Resistant	Rectangular Case	10 Ohms	0.472 in	12 mm	Metal Clad	Wire Leads	260 ppm/°C
Bourns Inc. BRS200-1RJ8	200 °C	-55 C	5 %	Screw Holes	3.15 in	80 mm	150 mm	5.906 in	200 Watts	Moisture Resistant	Rectangular Case	1 Ohms	0.472 in	12 mm	Metal Clad	Wire Leads	260 ppm/°C
