842-084 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 84POS 0.100

Part	Termination Rows [custom]	Material - Insulation	Operating Temperature [Max]	Operating Temperature [Min]	Features	Contact Finish Thickness	Contact Finish Thickness	Number of Positions/Bay/Row	Mounting Type	Contact Type	Pitch	Pitch	Contact Material	Gender	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Read Out	Card Type	Color	Number of Positions [custom]	Number of Rows [custom]	Contact Finish	Termination	Card Thickness [Max]	Card Thickness [Min]

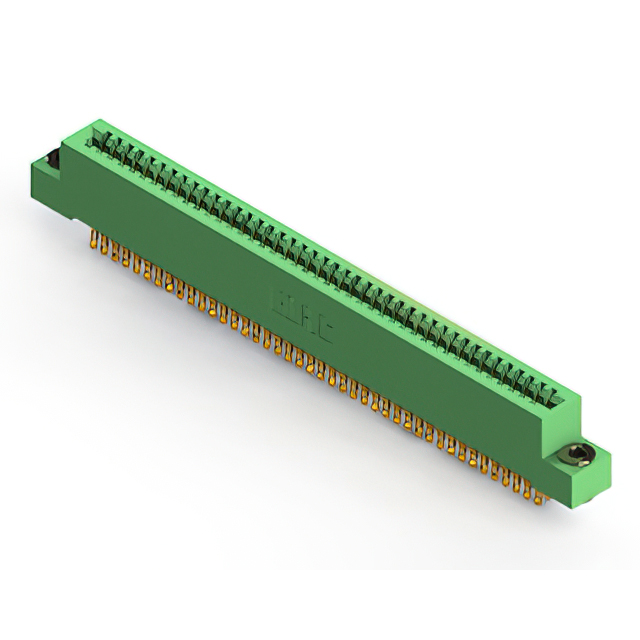

EDAC Inc. 842-084-555-203	2	Diallyl Phthalate (DAP)	125 °C	-40 C	Card Extender	0.25 Ám	10 Áin	42	Board Edge Straddle Mount	Cantilever	0.1 "	2.54 mm	Copper Alloy	Female	0.116 "	Floating Bobbin Flush Mount	2.95 mm	Dual	Non Specified - Dual Edge	Green	84	2	Gold	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 842-084-558-207	2	Diallyl Phthalate (DAP)	125 °C	-40 C		0.25 Ám	10 Áin	42	Right Angle Through Hole	Cantilever	0.1 "	2.54 mm	Copper Alloy	Female		Flush Mount M3 Threaded Insert Top Opening		Dual	Non Specified - Dual Edge	Green	84	2	Gold	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 842-084-523-204	2	Diallyl Phthalate (DAP)	125 °C	-40 C		0.25 Ám	10 Áin	42	Through Hole	Cantilever	0.1 "	2.54 mm	Copper Alloy	Female	0.156 "	Flush Mount Top Opening Unthreaded	3.96 mm	Dual	Non Specified - Dual Edge	Green	84	2	Gold	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm

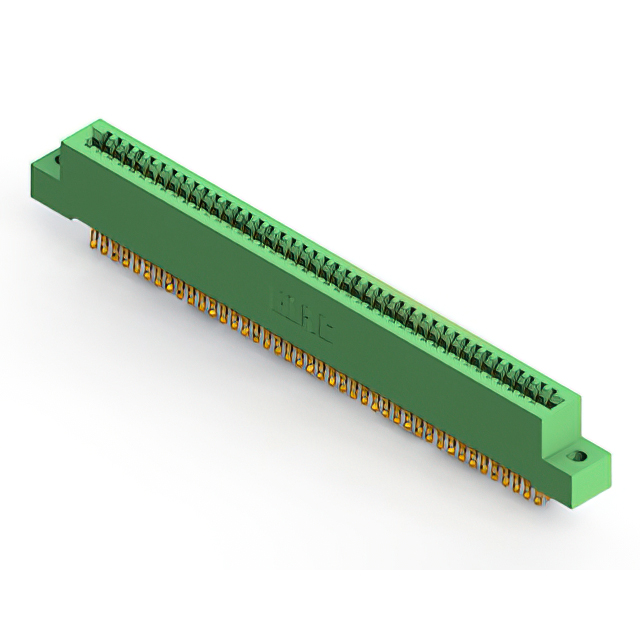

EDAC Inc. 842-084-555-202	2	Diallyl Phthalate (DAP)	125 °C	-40 C	Card Extender	0.25 Ám	10 Áin	42	Board Edge Straddle Mount	Cantilever	0.1 "	2.54 mm	Copper Alloy	Female	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm	Dual	Non Specified - Dual Edge	Green	84	2	Gold	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm

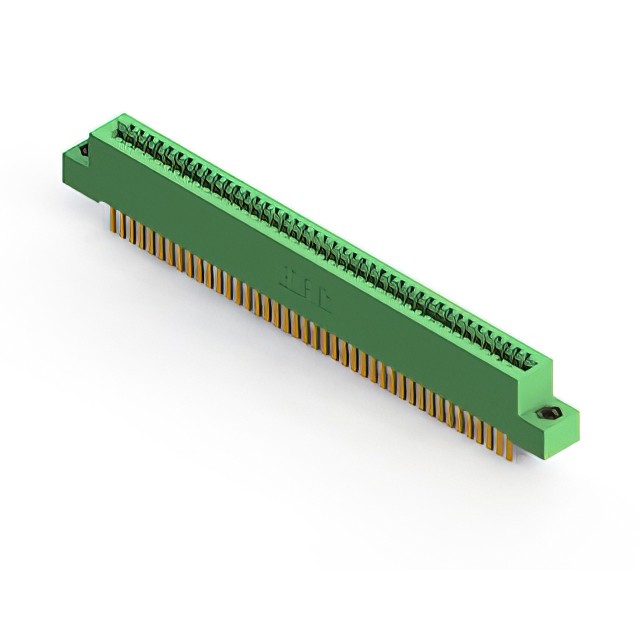

EDAC Inc. 842-084-544-208	2	Diallyl Phthalate (DAP)	125 °C	-40 C		0.25 Ám	10 Áin	42	Through Hole	Cantilever	0.1 "	2.54 mm	Copper Alloy	Female		4-40 Flush Mount Threaded Insert Top Opening		Dual	Non Specified - Dual Edge	Green	84	2	Gold	Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm

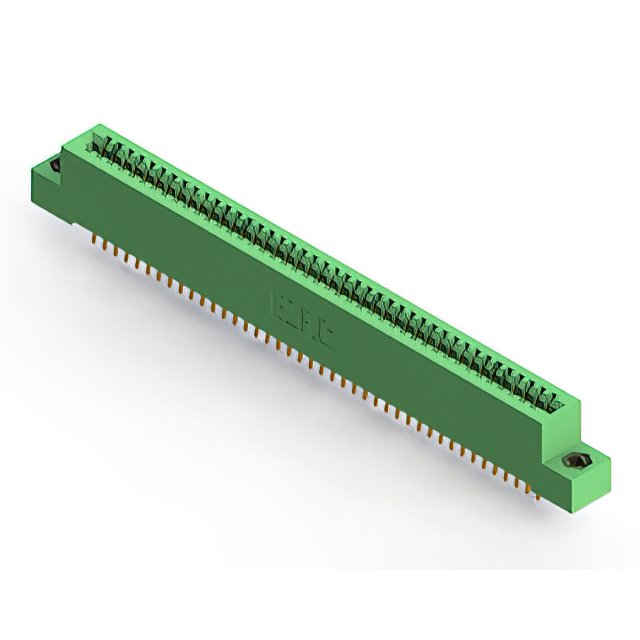

EDAC Inc. 842-084-556-208	2	Diallyl Phthalate (DAP)	125 °C	-40 C	Card Extender	0.25 Ám	10 Áin	42	Board Edge Straddle Mount	Cantilever	0.1 "	2.54 mm	Copper Alloy	Female		4-40 Flush Mount Threaded Insert Top Opening		Dual	Non Specified - Dual Edge	Green	84	2	Gold	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm

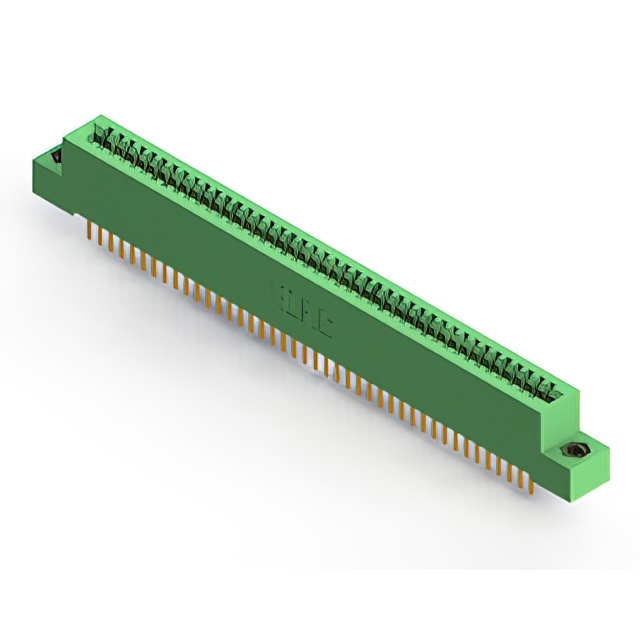

EDAC Inc. 842-084-520-207	2	Diallyl Phthalate (DAP)	125 °C	-40 C		0.25 Ám	10 Áin	42	Through Hole	Cantilever	0.1 "	2.54 mm	Copper Alloy	Female		Flush Mount M3 Threaded Insert Top Opening		Dual	Non Specified - Dual Edge	Green	84	2	Gold	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 842-084-523-208	2	Diallyl Phthalate (DAP)	125 °C	-40 C		0.25 Ám	10 Áin	42	Through Hole	Cantilever	0.1 "	2.54 mm	Copper Alloy	Female		4-40 Flush Mount Threaded Insert Top Opening		Dual	Non Specified - Dual Edge	Green	84	2	Gold	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 842-084-555-204	2	Diallyl Phthalate (DAP)	125 °C	-40 C	Card Extender	0.25 Ám	10 Áin	42	Board Edge Straddle Mount	Cantilever	0.1 "	2.54 mm	Copper Alloy	Female	0.156 "	Flush Mount Top Opening Unthreaded	3.96 mm	Dual	Non Specified - Dual Edge	Green	84	2	Gold	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 842-084-559-203	2	Diallyl Phthalate (DAP)	125 °C	-40 C		0.25 Ám	10 Áin	42	Right Angle Through Hole	Cantilever	0.1 "	2.54 mm	Copper Alloy	Female	0.116 "	Floating Bobbin Flush Mount	2.95 mm	Dual	Non Specified - Dual Edge	Green	84	2	Gold	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm
