ADA55 Series
Manufacturer: TE Intercontec
Beta
⌘K

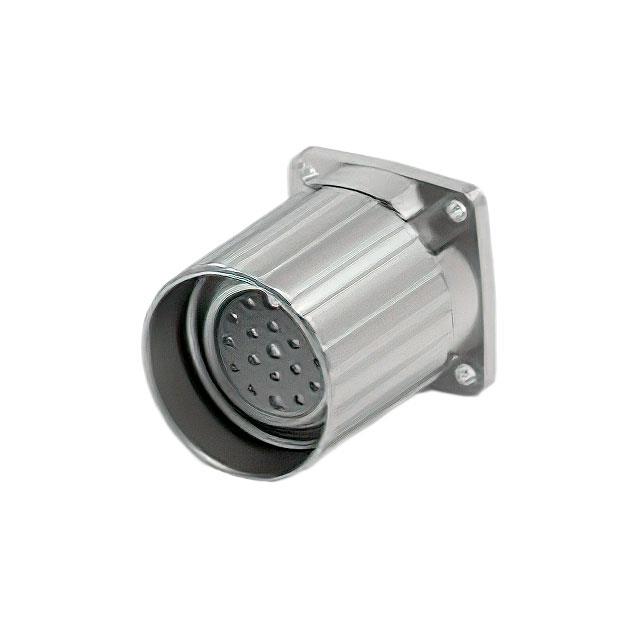

CONN PLG HSG FMALE 19POS PNL MT
| Part | Number of Positions | Shell Material | Fastening Type | Shell Finish | Contact Shape | Features | Mounting Type | Material Flammability Rating | Connector Type | Ingress Protection | Type | Housing Color | Operating Temperature [Min] | Operating Temperature [Max] | Includes | Note | Orientation | Mounting Feature | Insert Material | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Intercontec | 19 | Zinc Die Cast | Push-Twist | Nickel | Circular | Coupling Nut | Panel Mount | UL94 V-0 | Plug Housing | IP66 IP67 | For Female Sockets | Silver | -20 ░C | 130 °C | 1 Connector 1 O-Ring | Contacts Not Included | Keyed | Flange | Polybutylene Terephthalate (PBT) | Unshielded |
