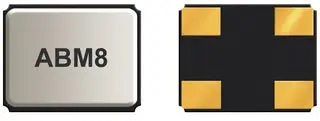

ABM8G Series
Manufacturer: Abracon LLC
Beta
⌘K
CRYSTAL 18.432MHZ ±30PPM (TOL) ±30PPM (STABILITY) 10PF FUND 80OHM 4-PIN ULTRA MINI-CSMD T/R
| Part | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Type | Frequency Tolerance | Package / Case | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Supplier Device Package [x] | Supplier Device Package [y] | Supplier Device Package | Operating Mode | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | ESR (Equivalent Series Resistance) | Load Capacitance | Frequency Stability | Frequency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Abracon LLC | 0.039 in | 1 mm | MHz Crystal | 30 ppm | 4-SMD No Lead | Surface Mount | -10 °C | 60 °C | 3.2 | 2.5 | 4-SMD | Fundamental | 2.5 mm | 0.098 in | 3.2 mm | 0.126 " | 80 Ohm | 10 pF | 30 ppm | 18.432 MHz |
Abracon LLC | 0.039 in | 1 mm | MHz Crystal | 30 ppm | 4-SMD No Lead | Surface Mount | -20 ░C | 70 °C | 3.2 | 2.5 | 4-SMD | Fundamental | 2.5 mm | 0.098 in | 3.2 mm | 0.126 " | 80 Ohm | 10 pF | 30 ppm | 16 MHz |
 Abracon LLC | 0.039 in | 1 mm | MHz Crystal | 30 ppm | 4-SMD No Lead | Surface Mount | -20 ░C | 70 °C | 3.2 | 2.5 | 4-SMD | Fundamental | 2.5 mm | 0.098 in | 3.2 mm | 0.126 " | 80 Ohm | 10 pF | 30 ppm | 19.6608 MHz |
 Abracon LLC | 0.039 in | 1 mm | MHz Crystal | 30 ppm | 4-SMD No Lead | Surface Mount | -20 ░C | 70 °C | 3.2 | 2.5 | 4-SMD | Fundamental | 2.5 mm | 0.098 in | 3.2 mm | 0.126 " | 80 Ohm | 10 pF | 30 ppm | 18.432 MHz |
Abracon LLC | 0.039 in | 1 mm | MHz Crystal | 30 ppm | 4-SMD No Lead | Surface Mount | -10 °C | 60 °C | 3.2 | 2.5 | 4-SMD | Fundamental | 2.5 mm | 0.098 in | 3.2 mm | 0.126 " | 50 Ohms | 10 pF | 30 ppm | 28.63636 MHz |
Abracon LLC | 0.039 in | 1 mm | MHz Crystal | 20 ppm | 4-SMD No Lead | Surface Mount | -40 C | 85 °C | 3.2 | 2.5 | 4-SMD | Fundamental | 2.5 mm | 0.098 in | 3.2 mm | 0.126 " | 50 Ohms | 18 pF | 30 ppm | 40 MHz |
Abracon LLC | 0.039 in | 1 mm | MHz Crystal | 20 ppm | 4-SMD No Lead | Surface Mount | -40 C | 85 °C | 3.2 | 2.5 | 4-SMD | Fundamental | 2.5 mm | 0.098 in | 3.2 mm | 0.126 " | 80 Ohm | 10 pF | 30 ppm | 14.31818 MHz |
Abracon LLC | 0.039 in | 1 mm | MHz Crystal | 20 ppm | 4-SMD No Lead | Surface Mount | -40 C | 85 °C | 3.2 | 2.5 | 4-SMD | Fundamental | 2.5 mm | 0.098 in | 3.2 mm | 0.126 " | 50 Ohms | 18 pF | 30 ppm | 33 MHz |
