TS Series

Catalog

CIRCULAR CONNECTOR, TS2P SERIES, PANEL MOUNT RECEPTACLE, 9 CONTACTS, CRIMP PIN, THREADED

Part	Mounting Feature	Termination	Insert Material	Mounting Type	Fastening Type	Contact Finish - Mating	Color	Shielding	Applications	Primary Material	Connector Type	Current Rating (Amps)	Shell Material	Number of Positions	Orientation	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Shell Finish	Ingress Protection	Backshell Material, Plating	Cable Opening [Min]	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Max]	Features	For Use With/Related Products	Accessory Type	2nd Connector	2nd Connector	2nd Connector	2nd Connector	1st Connector	1st Connector	1st Connector	1st Connector	Channels	Length	Length	Usage
SWITCHCRAFT/CONXALL TS2P9M26-B	Bulkhead - Front Side Nut	Solder	Liquid Crystal Polymer (LCP)	Panel Mount Through Hole	Threaded	Gold	Silver	Shielded	Agriculture Audio General Medical Testing Equipment & Measurement	Metal	Receptacle Male Pins	2 A	Copper Alloy	9	Keyed	30 VAC	-40 C	135 °C	Copper Alloy	Electroless Nickel	IP66 IP67 IP68

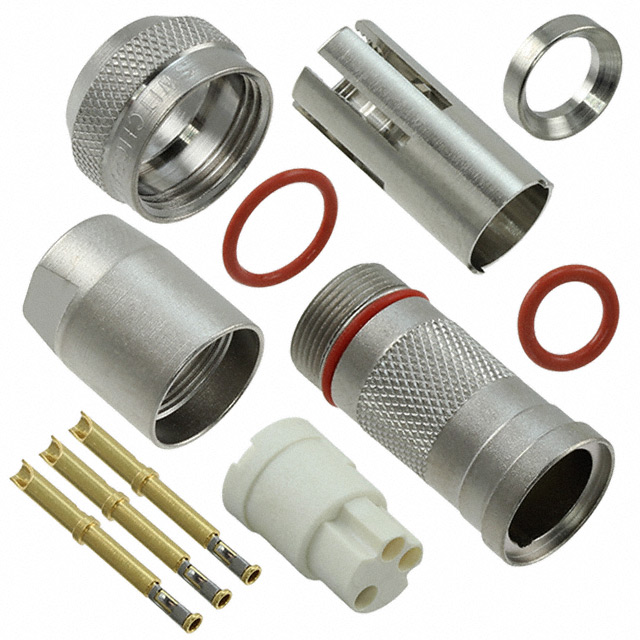

SWITCHCRAFT/CONXALL TS2C3F20C		Crimp Solder Cup	Liquid Crystal Polymer (LCP)	Free Hanging (In-Line)	Threaded	Gold	Silver	Shielded	Agriculture Audio General Medical Testing Equipment & Measurement	Metal	Plug Female Sockets		Copper Alloy		Keyed	125 VAC	-40 C	135 °C	Copper Alloy	Electroless Nickel	IP66 IP67 IP68	Copper Alloy Nickel	4.57 mm	0.18 "	5.49 mm	0.216 in	Backshell Coupling Nut

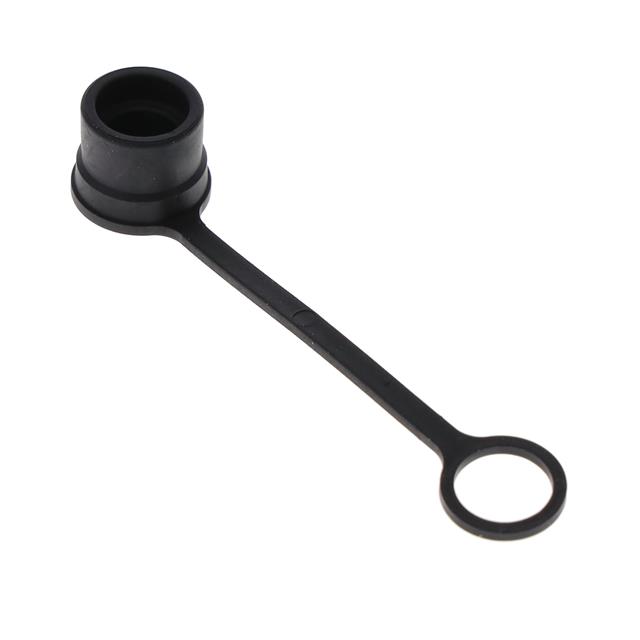

SWITCHCRAFT/CONXALL TS2CCAP							Black																				Dust Tight Water Resistant Waterproof	Cable Plug	Cap (Cover) Sealing

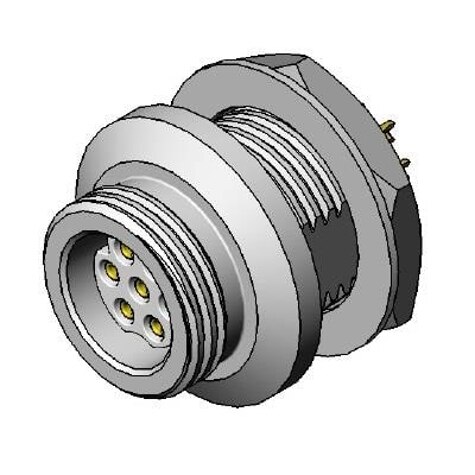

SWITCHCRAFT/CONXALL TS2P4M20	Bulkhead - Rear Side Nut	Crimp Solder Cup	Liquid Crystal Polymer (LCP)	Panel Mount	Threaded	Gold	Silver	Shielded	Agriculture Audio General Medical Testing Equipment & Measurement	Metal	Receptacle Male Pins		Copper Alloy	4	Keyed	125 VAC	-40 C	135 °C	Copper Alloy	Electroless Nickel	IP66 IP67 IP68
SWITCHCRAFT/CONXALL TS2P8M26-BP	Bulkhead - Front Side Nut	Solder	Liquid Crystal Polymer (LCP)	Panel Mount Through Hole	Threaded	Gold	Silver	Shielded	Agriculture Audio General Medical Testing Equipment & Measurement	Metal	Receptacle Male Pins		Copper Alloy	8	Keyed	30 VAC	-40 C	135 °C	Copper Alloy	Electroless Nickel	IP66 IP67 IP68
SWITCHCRAFT/CONXALL TS2C5M20B		Crimp Solder Cup	Liquid Crystal Polymer (LCP)	Free Hanging (In-Line)	Threaded	Gold	Silver	Shielded	Agriculture Audio General Medical Testing Equipment & Measurement	Metal	Plug Male Pins	10 A	Copper Alloy	5	Keyed	125 VAC	-40 C	135 °C	Copper Alloy	Electroless Nickel	IP66 IP67 IP68	Copper Alloy Nickel	3.6 mm	0.142 in	5 mm	0.197 in	Backshell Coupling Nut
SWITCHCRAFT/CONXALL TS10TS							Purple																							Phone Plug	6.35 mm 8	0.25 in	0.25 in	0.25 in	0.25 in	6.35 mm 8	Phone Plug	Mono	3.05 m	10 ft	Headphones Patch Cable
SWITCHCRAFT/CONXALL TS2C6F26A		Crimp Solder Cup	Liquid Crystal Polymer (LCP)	Free Hanging (In-Line)	Threaded	Gold	Silver	Shielded	Agriculture Audio General Medical Testing Equipment & Measurement	Metal	Plug Female Sockets	10 A	Copper Alloy	6	Keyed	30 VAC	-40 C	135 °C	Copper Alloy	Electroless Nickel	IP66 IP67 IP68	Copper Alloy Nickel	2.7 mm	0.106 in	3.6 mm	0.142 in	Backshell Coupling Nut
SWITCHCRAFT/CONXALL TS2C8F26B		Crimp Solder Cup	Liquid Crystal Polymer (LCP)	Free Hanging (In-Line)	Threaded	Gold	Silver	Shielded	Agriculture Audio General Medical Testing Equipment & Measurement	Metal	Plug Female Sockets	10 A	Copper Alloy	8	Keyed	30 VAC	-40 C	135 °C	Copper Alloy	Electroless Nickel	IP66 IP67 IP68	Copper Alloy Nickel	3.6 mm	0.142 in	5 mm	0.197 in	Backshell Coupling Nut
SWITCHCRAFT/CONXALL TS2L5M20B		Crimp Solder Cup	Liquid Crystal Polymer (LCP)	Free Hanging (In-Line)	Threaded	Gold	Silver	Shielded	Agriculture Audio General Medical Testing Equipment & Measurement	Metal	Receptacle Male Pins	8 A	Copper Alloy	5	Keyed	125 VAC	-40 C	135 °C	Copper Alloy	Electroless Nickel	IP66 IP67 IP68	Copper Alloy Nickel	3.6 mm	0.142 in	5 mm	0.197 in	Backshell
