FKIC Series

Pluggable Terminal Blocks 10 Pos 5mm Invert Plug 24-12AWG Spring

Manufacturer: Phoenix Contact

Catalog

Pluggable Terminal Blocks 10 Pos 5mm Invert Plug 24-12AWG Spring

Catalog

Pluggable Terminal Blocks 10 Pos 5mm Invert Plug 24-12AWG Spring

Part	Material Flammability Rating	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Wire Strip Length	Housing Material	Insulation Height [custom]	Insulation Height [custom]	Color	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Number of Positions	Contact Mating Finish	Pitch	Pitch	Mounting Type	Positions Per Level	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Current - IEC	Plug Wire Entry	Features	Termination Style	Voltage - UL	Voltage - IEC	Number of Levels	Current - UL	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]

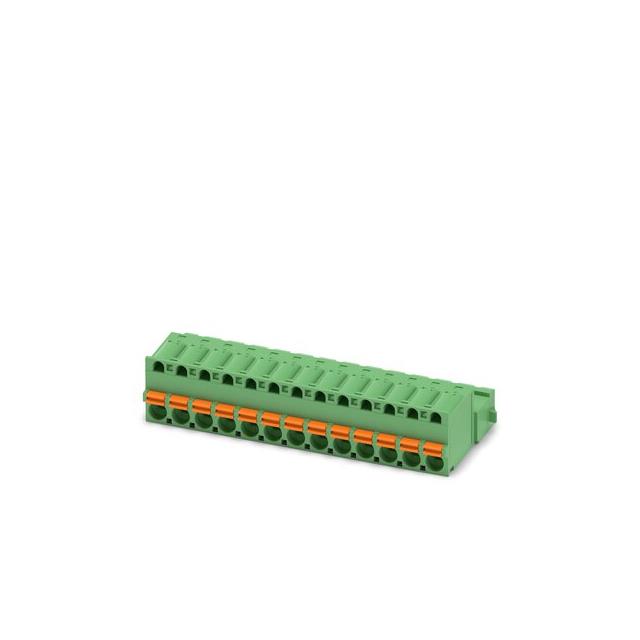

Phoenix Contact 1925977	UL94 V-0	2.5 mm˛	0.2 mm˛	10 mm	Polyamide (PA) Nylon	0.591 in	15 mm	Green	12 AWG	26 AWG	13	Tin	5.08 mm	0.2 in	Free Hanging (In-Line)	13	2.5 mm²	0.2 mm²	12 A	180 °	Locking Ramp	Screwless - Push-In Spring	300 V	630 V	1	10 A

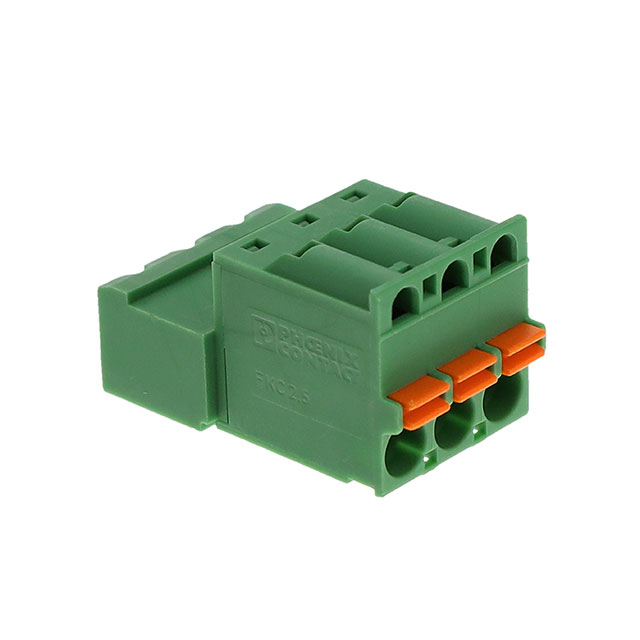

Phoenix Contact 1910681	UL94 V-0			10 mm	Polyamide (PA) Nylon	0.591 in	15 mm	Green	12 AWG	26 AWG		Tin	5 mm	0.197 in	Free Hanging (In-Line)	3	2.5 mm²	0.2 mm²	12 A	180 °		Push-In Spring Screwless - Leg Spring	300 V	630 V	1	10 A
Phoenix Contact 1942594								Green	12 AWG	26 AWG	2	Tin	5.08 mm	0.2 in	Free Hanging (In-Line)	2	2.5 mm²	0.2 mm²	16 A	180 °		Screwless - Push-In Spring	300 V	630 V	1	16 A
Phoenix Contact 1910869	UL94 V-0			10 mm	Polyamide (PA) Nylon	0.591 in	15 mm	Green	12 AWG	26 AWG	6	Tin	5 mm	0.197 in	Free Hanging (In-Line)	6	2.5 mm²	0.2 mm²	12 A	180 °	Mating Flange	Push-In Spring Screwless - Leg Spring	300 V	630 V	1	10 A

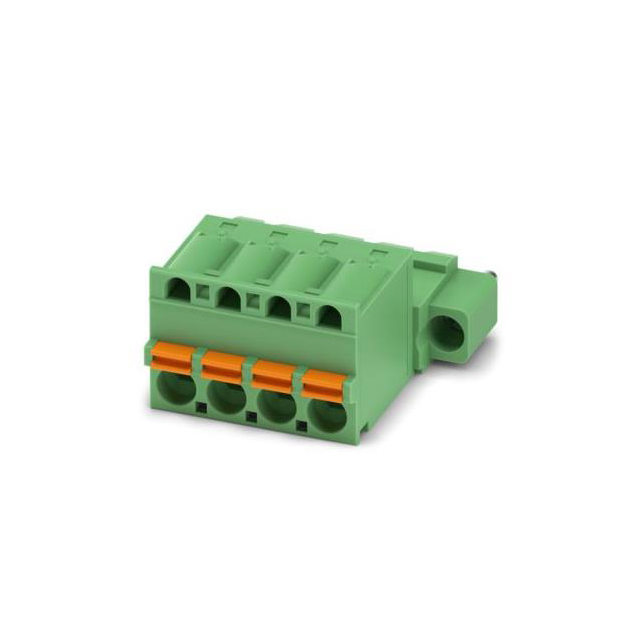

Phoenix Contact 1873524	UL94 V-0			10 mm	Polyamide (PA) Nylon	0.591 in	15 mm	Green	12 AWG	26 AWG	4	Tin	5.08 mm	0.2 in	Free Hanging (In-Line)	4	2.5 mm²	0.2 mm²	12 A	180 °	Mating Flange	Push-In Spring Screwless - Leg Spring	300 V	630 V	1	10 A

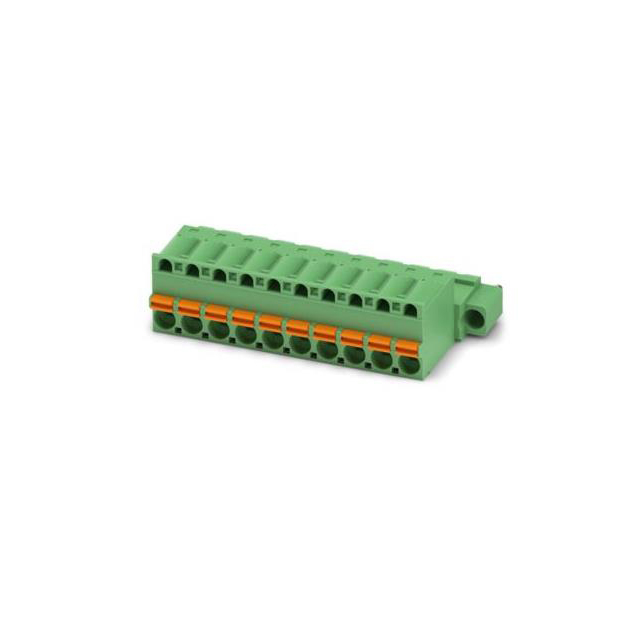

Phoenix Contact 1910908	UL94 V-0			10 mm	Polyamide (PA) Nylon	0.591 in	15 mm	Green	12 AWG	26 AWG	10	Tin	5 mm	0.197 in	Free Hanging (In-Line)	10	2.5 mm²	0.2 mm²	12 A	180 °	Mating Flange	Push-In Spring Screwless - Leg Spring	300 V	630 V	1	10 A
Phoenix Contact 1873456								Green	12 AWG	26 AWG	12	Tin	5.08 mm	0.2 in	Free Hanging (In-Line)	12	2.5 mm²	0.2 mm²	12 A	180 °		Push-In Spring Screwless - Leg Spring	300 V	630 V	1	10 A
Phoenix Contact 1942701	UL94 V-0			10 mm	Polyamide (PA) Nylon	0.591 in	15 mm	Green	12 AWG	26 AWG	2	Tin	5.08 mm	0.2 in	Free Hanging (In-Line)	2	2.5 mm²	0.2 mm²	16 A	180 °	Mating Flange	Push-In Spring Screwless - Leg Spring	300 V	320 V	1	16 A	Copper Alloy	-40 C	105 ░C
