CGA Epoxy Series

Catalog

MULTILAYER CERAMIC CAPACITORS MLCC - SMD/SMT 0603 50V 0.022UF X8R 20% AEC-Q200 EPXY

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Capacitance	Temperature Coefficient	Tolerance	Package / Case	Package / Case	Features	Thickness (Max) [Max]	Thickness (Max) [Max]	Voltage - Rated	Ratings	Applications	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Thickness (Max)	Thickness (Max) [Max] [z]	Size / Dimension [y]
TDK Corporation CGA3E2X8R1H223M080AD	-55 C	150 °C	Epoxy MLCC Surface Mount	0.022 µF	X8R	20 %	1608 Metric	0603	Epoxy Mountable High Temperature	0.037 in	0.95 mm	50 VDC	AEC-Q200	Automotive	0.031 in	1.6 mm	0.8 mm	0.063 "
TDK Corporation CGA3E2X8R1H152M080AD	-55 C	150 °C	Epoxy MLCC Surface Mount	1500 pF	X8R	20 %	1608 Metric	0603	Epoxy Mountable High Temperature	0.037 in	0.95 mm	50 VDC	AEC-Q200	Automotive	0.031 in	1.6 mm	0.8 mm	0.063 "
TDK Corporation CGA3E2C0G1H040C080AD	-55 C	125 °C	Epoxy MLCC Surface Mount	4 pF	C0G NP0	0.25 pF	1608 Metric	0603	Epoxy Mountable	0.037 in	0.95 mm	50 VDC	AEC-Q200	Automotive	0.031 in	1.6 mm	0.8 mm	0.063 "
TDK Corporation CGA4J3X8R1C684M125AD	-55 C	150 °C	Epoxy MLCC Surface Mount	0.68 µF	X8R	20 %		0805	Epoxy Mountable High Temperature			16 V	AEC-Q200	Automotive	0.049 "	2 mm		0.079 in	1.5 mm	0.059 in	1.25 mm

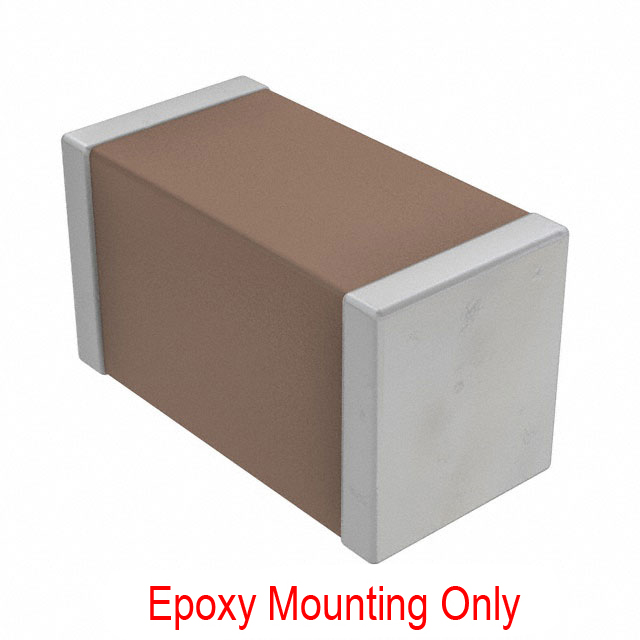

TDK Corporation CGA2B2X8R1H221M050BD	-55 C	150 °C	Epoxy MLCC Surface Mount	220 pF	X8R	20 %		0402 (1005 Metric)	Epoxy Mountable High Temperature	0.024 in		50 VDC	AEC-Q200	Automotive	0.02 in	1 mm		0.039 "	0.6 mm		0.5 mm
TDK Corporation CGA4J2C0G1H333J125AD	-55 C	125 °C	Epoxy MLCC Surface Mount	0.033 çF	C0G NP0	5 %		0805	Epoxy Mountable			50 VDC	AEC-Q200	Automotive	0.049 "	2 mm		0.079 in	1.5 mm	0.059 in	1.25 mm

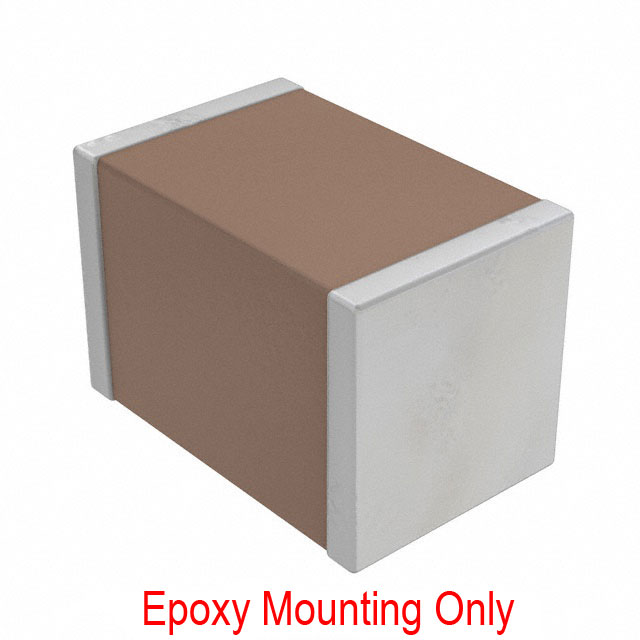

TDK Corporation CGA5L1X8R1E335K160AD	-55 C	150 °C	Epoxy MLCC Surface Mount	3.3 µF	X8R	10 %		1206 (3216 Metric)	Epoxy Mountable High Temperature	0.075 in	1.9 mm	25 VDC	AEC-Q200	Automotive	0.063 "	3.2 mm		0.126 "			1.6 mm
TDK Corporation CGA3E2X8R1E683M080AD	-55 C	150 °C	Epoxy MLCC Surface Mount	0.068 µF	X8R	20 %	1608 Metric	0603	Epoxy Mountable High Temperature	0.037 in	0.95 mm	25 VDC	AEC-Q200	Automotive	0.031 in	1.6 mm	0.8 mm	0.063 "
TDK Corporation CGA3E3X7R1E334M080AD	-55 C	125 °C	Epoxy MLCC Surface Mount	0.33 µF	X7R	20 %	1608 Metric	0603	Epoxy Mountable	0.037 in	0.95 mm	25 VDC	AEC-Q200	Automotive	0.031 in	1.6 mm	0.8 mm	0.063 "
TDK Corporation CGA3E2X8R2A682K080AD	-55 C	150 °C	Epoxy MLCC Surface Mount	6800 pF	X8R	10 %	1608 Metric	0603	Epoxy Mountable	0.037 in	0.95 mm	100 V	AEC-Q200	Automotive	0.031 in	1.6 mm	0.8 mm	0.063 "
