C3749 Series

Catalog

CBL RIBN 25COND 0.025 GRAY 100'

Part	First Conductor Mark	Insulation Resistance	Conductor Material	Jacket Color	Features	Operating Temperature [Min]	Operating Temperature [Max]	Voltage	Length	Length	Wire Gauge	Shielding	Conductor Strand	Ribbon Thickness	Ribbon Thickness	Number of Conductors [custom]	Pitch	Pitch	Cable Type	Jacket (Insulation) Material	Number of Conductors	Ribbon Width [custom]	Ribbon Width [custom]
3M Electronic Specialty C3749/25 100	Blue	10 GOhm	Copper Tinned	Gray	Zippable	-40 C	105 ░C	150 V	100 '	30.48 m	30 AWG	Unshielded	Solid	0.64 mm	0.025 in	25	0.64 mm	0.025 in	Flat Cable	Thermoplastic Elastomer (TPE)

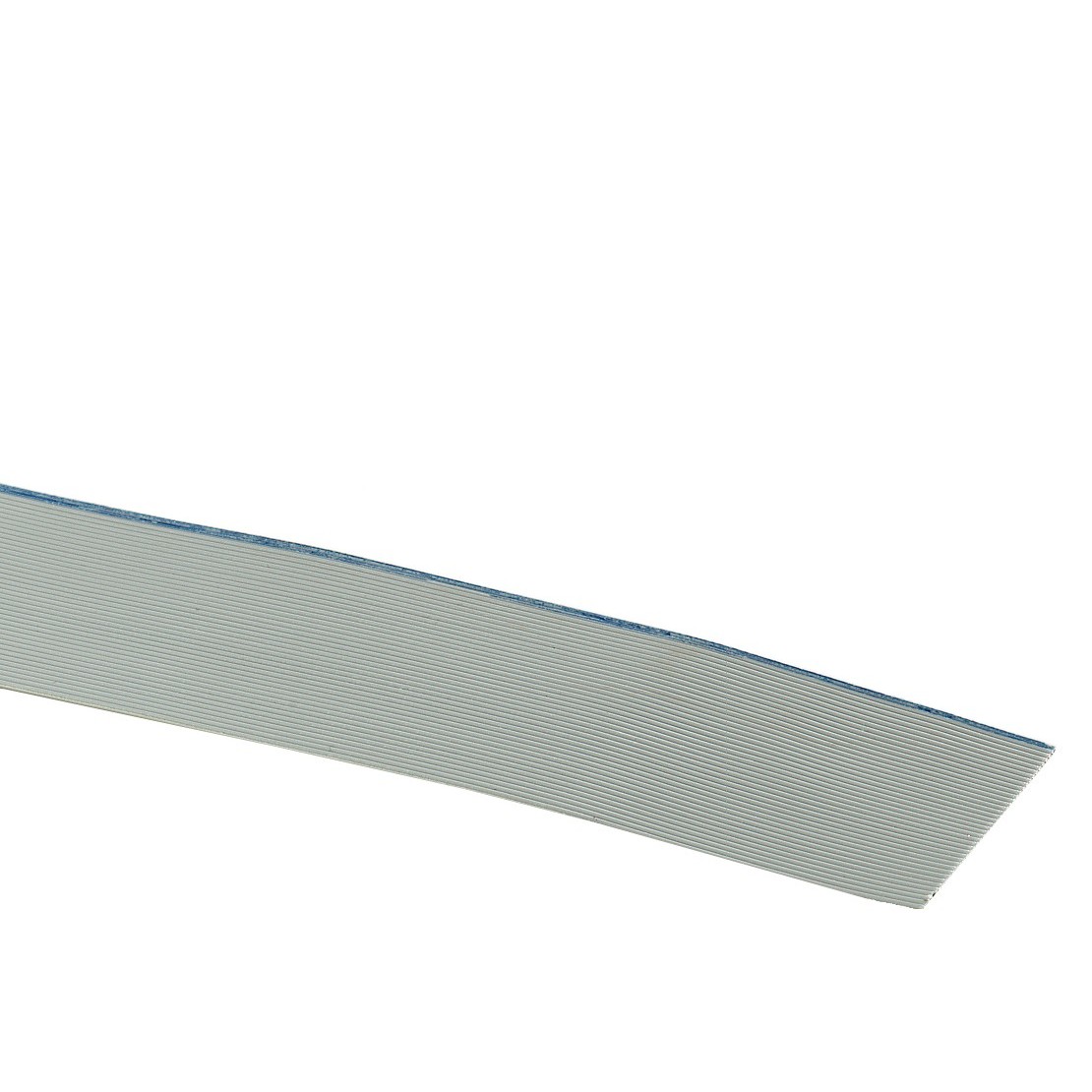

3M Electronic Specialty C3749/40 100	Blue	10 GOhm	Copper Tinned	Gray	Zippable	-40 C	105 ░C	150 V	100 '	30.48 m	30 AWG	Unshielded	Solid	0.64 mm	0.025 in		0.64 mm	0.025 in	Flat Cable	Thermoplastic Elastomer (TPE)	40	25.4 mm	1 in
3M Electronic Specialty C3749/80 100	Blue	10 GOhm	Copper Tinned	Gray	Zippable	-40 C	105 ░C	150 V	100 '	30.48 m	30 AWG	Unshielded	Solid	0.64 mm	0.025 in		0.64 mm	0.025 in	Flat Cable	Thermoplastic Elastomer (TPE)	80	50.8 mm	2 in
3M Electronic Specialty C3749/60 100	Blue	10 GOhm	Copper Tinned	Gray	Zippable	-40 C	105 ░C	150 V	100 '	30.48 m	30 AWG	Unshielded	Solid	0.64 mm	0.025 in		0.64 mm	0.025 in	Flat Cable	Thermoplastic Elastomer (TPE)	60	38.1 mm	1.5 in

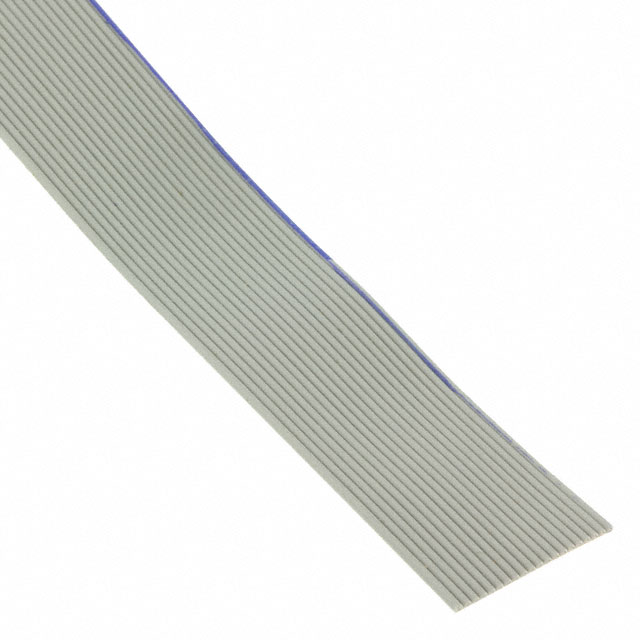

3M Electronic Specialty C3749/20 100	Blue	10 GOhm	Copper Tinned	Gray	Zippable	-40 C	105 ░C	150 V	100 '	30.48 m	30 AWG	Unshielded	Solid	0.64 mm	0.025 in		0.64 mm	0.025 in	Flat Cable	Thermoplastic Elastomer (TPE)	20	12.7 mm	0.5 in
