1393231 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

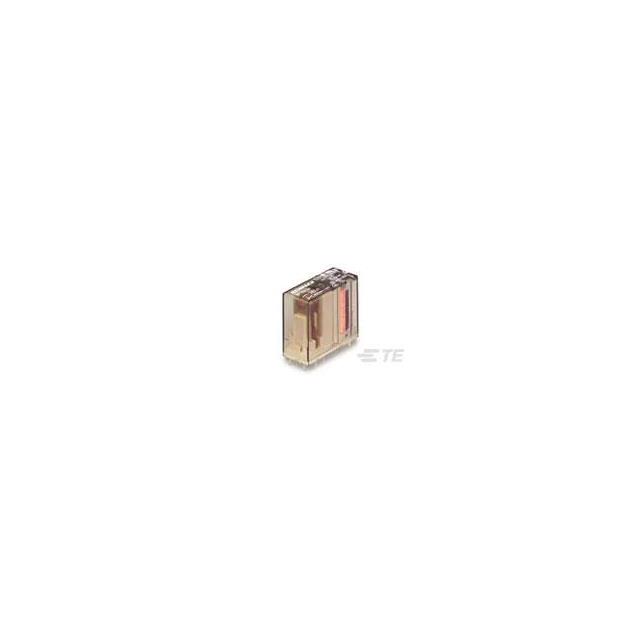

POWER RELAY, SPDT, 8A, 12VDC, TH ROHS COMPLIANT: YES
| Part | Coil Resistance | Coil Current | Must Release Voltage | Coil Type | Must Operate Voltage | Contact Material | Operate Time | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Coil Voltage | Contact Form | Seal Rating | Relay Type | Contact Rating (Current) | Switching Voltage [Max] | Release Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 270 Ohms | 44.4 mA | 1.2 VDC | Non Latching | 8.4 VDC | Silver Nickel (AgNi) | 8 ms | Through Hole | 70 °C | -40 C | PC Pin | 12 VDC | SPDT (1 Form C) | Sealed - Flux Protection | General Purpose | 8 A | 400 VAC | 2 ms |
