008383 Series

Catalog

CONN HEADER VERT 10POS 2.54MM

Part	Shrouding	Insulation Color	Contact Shape	Pitch - Mating	Pitch - Mating	Fastening Type	Features	Contact Material	Contact Finish - Mating	Connector Type	Material Flammability Rating	Termination	Contact Type	Insulation Material	Number of Rows [custom]	Contact Finish - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Mounting Type	Contact Length - Mating	Contact Length - Mating	Voltage Rating	Number of Positions Loaded	Style	Contact Length - Post [custom]	Contact Length - Post

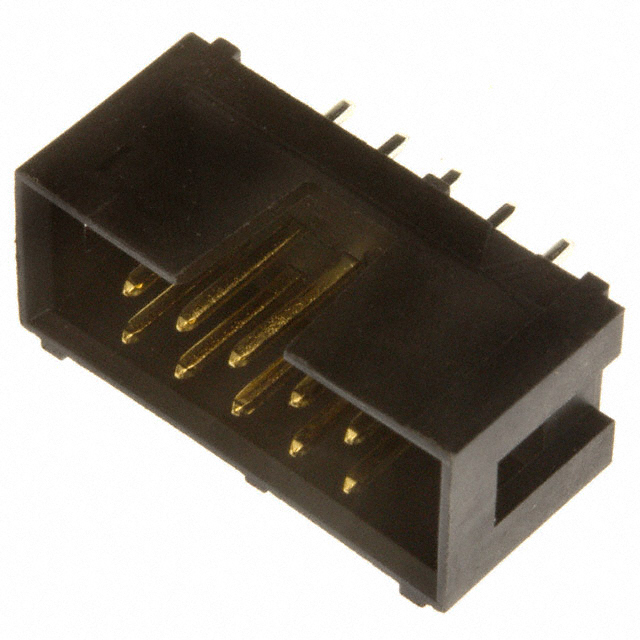

KYOCERA AVX 008383010000010	Shrouded - 4 Wall	Beige	Square	0.1 "	2.54 mm	Push-Pull	Keying Slot	Brass	Gold	Header	UL94 V-0	Solder	Male Pin	Nylon Polyamide (PA)	2	Nickel	0.1 in	2.54 mm	0.376 in	9.55 mm	0.76 Ám	30 Áin	10	Through Hole	0.242 in	6.15 mm	350 VDC	All	Board to Cable/Wire	0.11 in	2.79 mm

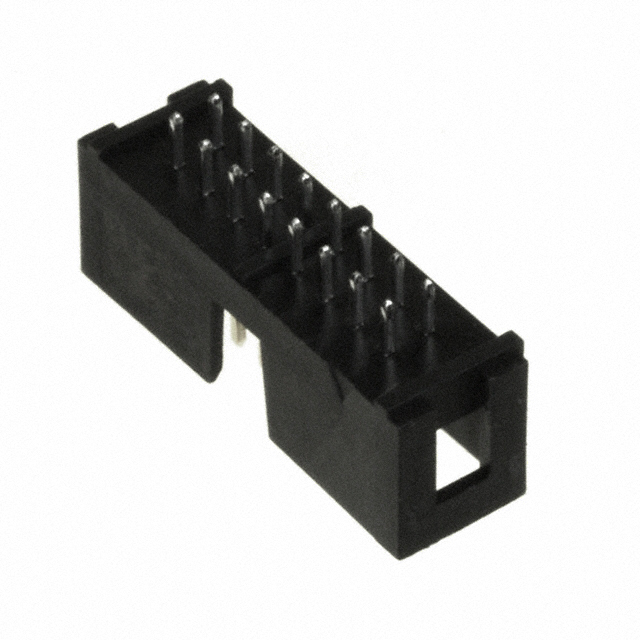

KYOCERA AVX 008383016000010	Shrouded - 4 Wall	Beige	Square	0.1 "	2.54 mm	Push-Pull	Keying Slot	Brass	Gold	Header	UL94 V-0	Solder	Male Pin	Nylon Polyamide (PA)	2	Nickel	0.1 in	2.54 mm	0.376 in	9.55 mm	0.76 Ám	30 Áin	16	Through Hole	0.242 in	6.15 mm	350 VDC	All	Board to Cable/Wire	0.11 in	2.79 mm
