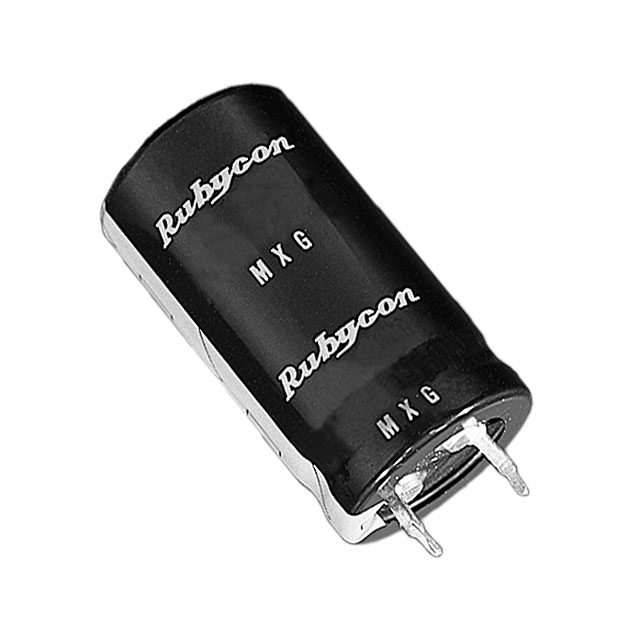

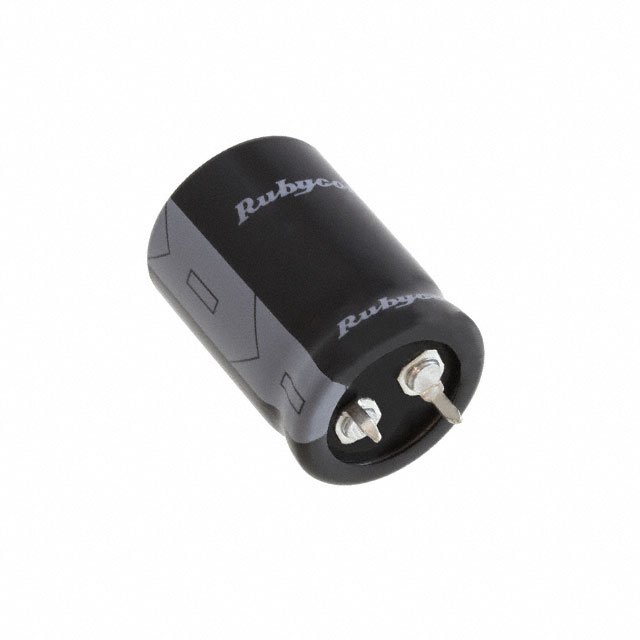

MXG Series

Manufacturer: Rubycon

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - SNAP IN GENERAL PURPOSE ELECTROLYTIC CAPACITORS

Part	Lifetime @ Temp.	Size / Dimension [diameter]	Size / Dimension [diameter]	Polarization	Package / Case	Mounting Type	Voltage - Rated	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Lead Spacing	Lead Spacing	Ripple Current @ Low Frequency	Tolerance	Ripple Current @ High Frequency	Capacitance	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]
Rubycon 160MXG1000MEFCSN25X35	3000 Hrs	0.984 "	25 mm	Polar	Radial Can - Snap-In	Through Hole	160 V	37 mm	1.457 in	0.394 in	10 mm	2.2 A	20 %	3.3 A	1000 µF	General Purpose	105 ░C	-25 °C
Rubycon 63MXG10000MEFCSN30X45	3000 Hrs	1.181 "		Polar	Radial Can - Snap-In	Through Hole	63 V			0.394 in	10 mm	4.48 A	20 %	5.152 A	10000 µF	General Purpose	105 ░C	-40 C	30 mm	1.85 in	47 mm
Rubycon 450MXG820MEFCSN35X60	3000 Hrs	1.378 "	35 mm	Polar	Radial Can - Snap-In	Through Hole	450 V	62 mm		0.394 in	10 mm	2.71 A	20 %	3.794 A	820 µF	General Purpose	105 ░C	-25 °C		2.441 in

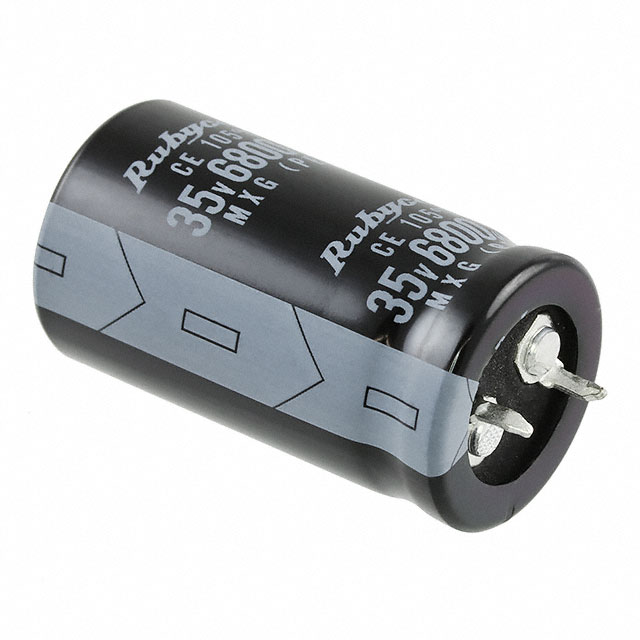

Rubycon 35MXG6800MEFCSN22X40	3000 Hrs	0.866 "	22 mm	Polar	Radial Can - Snap-In	Through Hole	35 V		1.654 in	0.394 in	10 mm	2.41 A	20 %	2.7715 A	6800 µF	General Purpose	105 ░C	-40 C				42 mm
Rubycon 63MXG8200MEFCSN30X40	3000 Hrs	1.181 "		Polar	Radial Can - Snap-In	Through Hole	63 V		1.654 in	0.394 in	10 mm	4.04 A	20 %	4.646 A		General Purpose	105 ░C	-40 C	30 mm			42 mm
Rubycon 450MXG330MEFCSN25X50	3000 Hrs	0.984 "	25 mm	Polar	Radial Can - Snap-In	Through Hole	450 V			0.394 in	10 mm	1.82 A	20 %	2.548 A	330 µF	General Purpose	105 ░C	-25 °C		2.047 in	52 mm
Rubycon 420MXG220MEFCSN22X45	3000 Hrs	0.866 "	22 mm	Polar	Radial Can - Snap-In	Through Hole	420 V			0.394 in	10 mm	1.43 A	20 %	2.002 A	220 µF	General Purpose	105 ░C	-25 °C		1.85 in	47 mm
Rubycon 16MXG27000MEFCSN22X50	3000 Hrs	0.866 "	22 mm	Polar	Radial Can - Snap-In	Through Hole	16 V			0.394 in	10 mm	3.85 A	20 %	4.426 A	27 mF	General Purpose	105 ░C	-40 C		2.047 in	52 mm
Rubycon 250MXG560MEFCSN25X35	3000 Hrs	0.984 "	25 mm	Polar	Radial Can - Snap-In	Through Hole	250 V	37 mm	1.457 in	0.394 in	10 mm	1.95 A	20 %	2.925 A	560 µF	General Purpose	105 ░C	-25 °C
Rubycon 220MXG820MEFCSN30X30	3000 Hrs	1.181 "		Polar	Radial Can - Snap-In	Through Hole	220 V		1.26 in	0.394 in	10 mm	1.93 A	20 %	2.895 A	820 µF	General Purpose	105 ░C	-40 C	30 mm			32 mm
