MULTIGIG RT 3 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN BACKPLANE M 9POWER/12SIGNAL POS 7.11MM/5.08MM/2.54MM PRESS FIT RA THRU-HOLE

Part	Number of Positions Loaded	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Connector Type	Connector Style	Termination	Number of Rows	Connector Usage	Number of Columns	Pitch	Pitch	Color	Features	Number of Positions	Contact Finish	Voltage Rating	Current Rating (Amps)	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions Loaded	Contact Layout, Typical	Number of Rows [custom]	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]

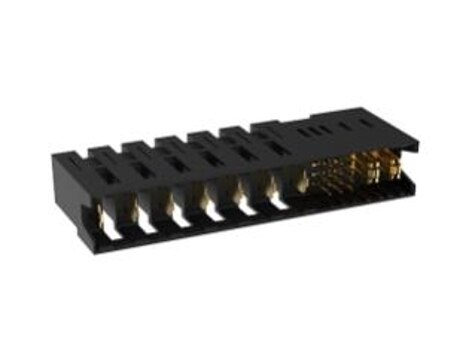

TE Connectivity AMP Connectors 2332793-1
TE Connectivity AMP Connectors 2332791-1
TE Connectivity AMP Connectors 2302790-1	All	50 µin	1.27 µm	Through Hole	Receptacle Female Blade Sockets	VITA 46 Right End	Press-Fit	9	Daughtercard	16	1.8 mm	0.071 in	Black	Board Guide	144	Gold
TE Connectivity AMP Connectors 2332793-1

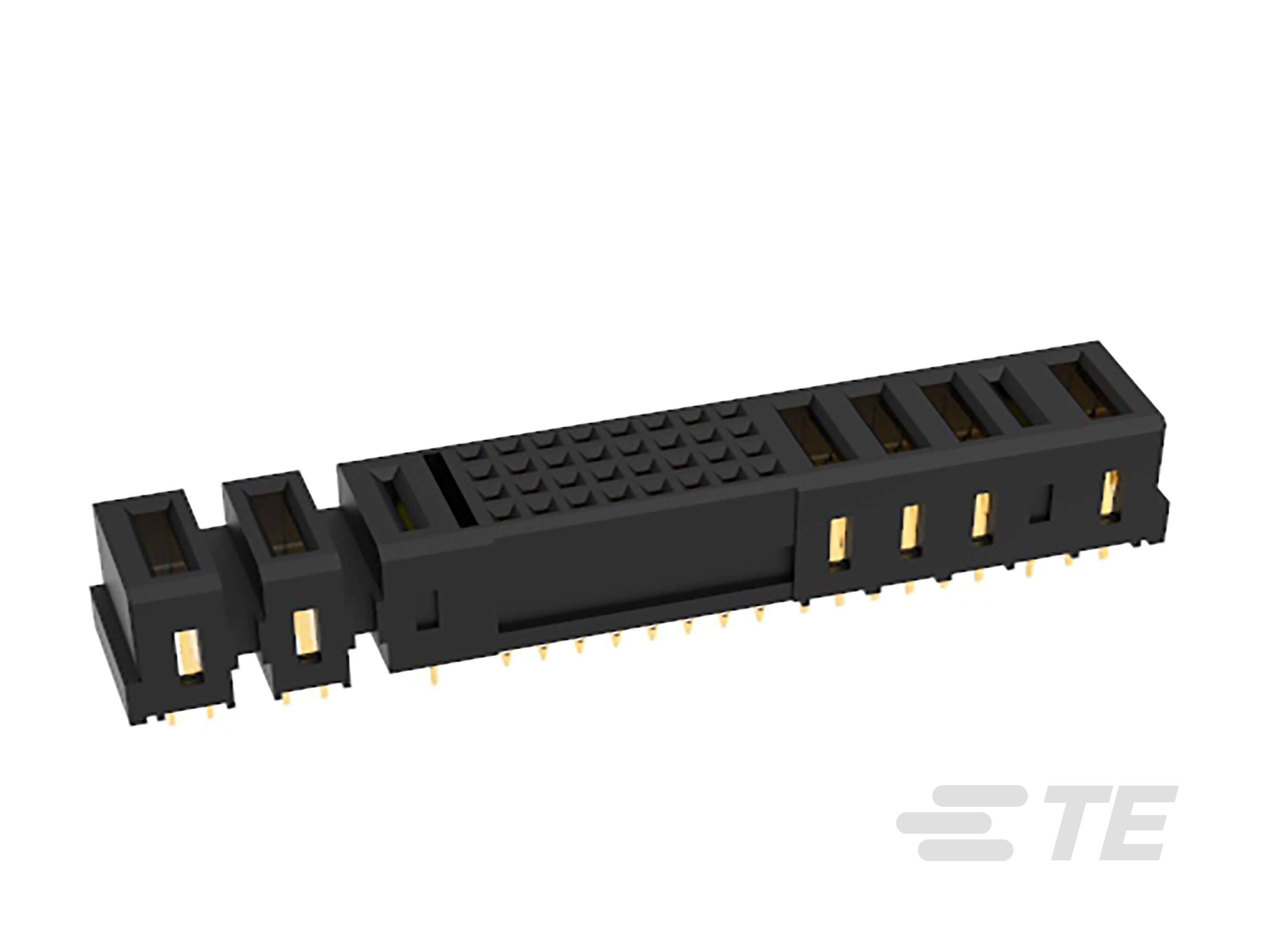

TE Connectivity AMP Connectors 2313441-1
TE Connectivity AMP Connectors 2332816-1		50 µin	1.27 µm	Board Edge Right Angle Through Hole	Plug Male Blades	VITA 46 Left End	Press-Fit		Daughtercard	8	2.54 mm	0.1 "	Black	Board Guide	56	Gold	100 V	75 A	UL94 V-0	125 °C	-40 C	53	11 Ground 16 Single Signal 3 Open 4 Signal Pairs 6 Power Groups	7
TE Connectivity AMP Connectors 2332791-1
TE Connectivity AMP Connectors 2302785-1	All	50 µin	1.27 µm	Board Edge Right Angle Through Hole	Plug Male Blades	VITA 46 Center	Press-Fit		Daughtercard	16	1.8 mm	0.071 in	Black	Board Guide	112	Gold	166 VAC/DC		UL94 V-0	125 °C	-55 C			7	40	32	8
TE Connectivity AMP Connectors 2352032-1	All	50 µin	1.27 µm	Through Hole	Receptacle Female Blade Sockets	VITA 46 Right End	Press-Fit	9	Daughtercard	16	1.8 mm	0.071 in	Black	Board Guide	144	Gold	166 VAC/DC		UL94 V-0	125 °C	-55 C
TE Connectivity AMP Connectors 2332795-1
