MMZ Series

Catalog

FERRITE BEAD, 0805 [2012 METRIC], 30 OHM, 1.5 A, MMZ SERIES, 0.05 OHM, ± 25%

Part	Filter Type	Mounting Type	Current Rating (Max) [Max]	Number of Lines	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	DC Resistance (DCR) (Max) [Max]	Height (Max) [z]	Height (Max) [z]	Package / Case	Impedance @ Frequency	Height (Max) [z]	Package / Case	Size / Dimension [y]	Height (Max) [Max] [z]
TDK Corporation MMZ2012R300AT000	Signal Line	Surface Mount	1.5 A	1	2 mm	1.25 mm	0.049 "	0.079 in	-55 C	125 °C	50 mOhm	1.05 mm	0.041 in	0805	30 Ohms

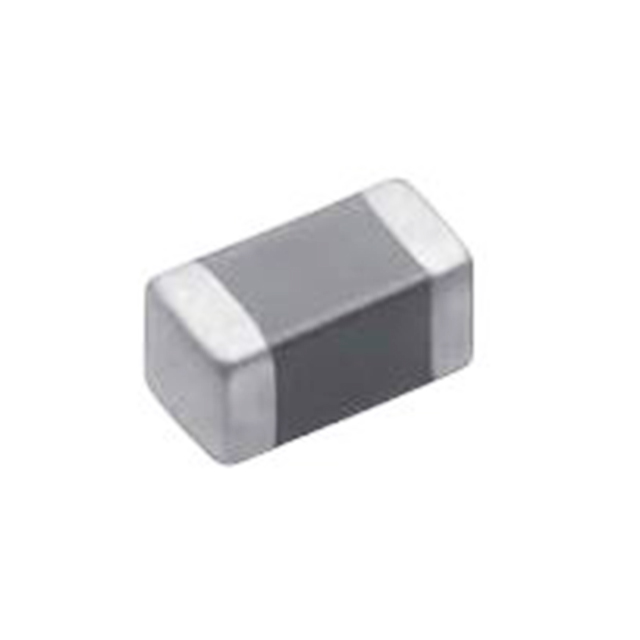

TDK Corporation MMZ1005B800CT000	Signal Line	Surface Mount	450 mA	1	1 mm	0.5 mm	0.02 in	0.039 "	-55 C	125 °C	200 mOhm	0.55 mm		0402 (1005 Metric)	80 Ohms	0.022 in
TDK Corporation MMZ1608R102CTA00	Signal Line	Surface Mount	400 mA	1	1.6 mm	0.8 mm	0.031 in 0.032 in	0.063 "	-55 C	125 °C	500 mOhm	0.95 mm	0.037 in	0603	1 kOhms		1608 Metric	0.8 mm
TDK Corporation MMZ1608Q331BTA00	Signal Line	Surface Mount	400 mA	1	1.6 mm	0.8 mm	0.031 in 0.032 in	0.063 "	-55 C	125 °C	500 mOhm	0.95 mm	0.037 in	0603	330 Ohms		1608 Metric	0.8 mm

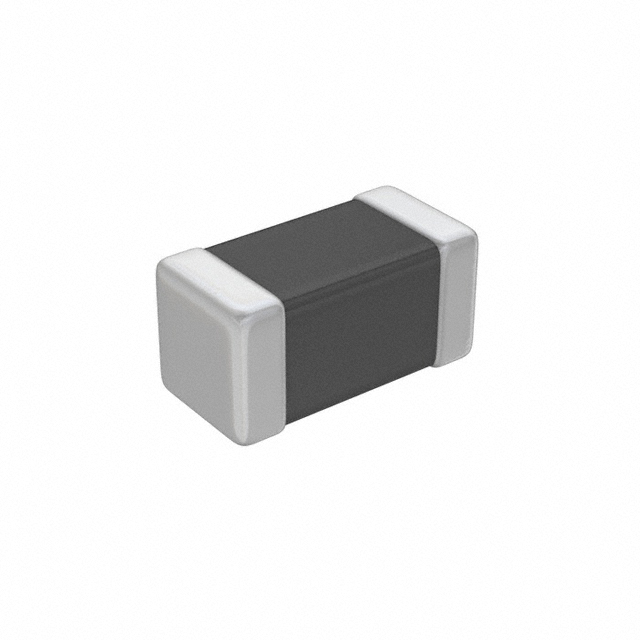

TDK Corporation MMZ0402S121CT000	Signal Line	Surface Mount	210 mA	1	0.4 mm	0.2 mm	0.008 in	0.016 in	-55 C	125 °C	700 mOhm	0.22 mm		01005 (0402 Metric)	120 Ohms				0.009 in
TDK Corporation MMZ0603D800CT000	Signal Line	Surface Mount	100 mA	1	0.024 in	0.012 in	0.3 mm	0.6 mm	-55 C	125 °C	1.4 Ohm	0.33 mm		0201	80 Ohms	0.013 in	0603 Metric
TDK Corporation MMZ1608D121BTA00	Signal Line	Surface Mount	400 mA	1	1.6 mm		0.031 in	0.063 "	-55 C	125 °C	450 mOhm	0.95 mm	0.037 in	0603	120 Ohms		1608 Metric	0.8 mm
TDK Corporation MMZ1608B601CTAH0	Signal Line	Surface Mount	500 mA	1	1.6 mm	0.8 mm	0.031 in 0.032 in	0.063 "	-55 C	125 °C	400 mOhm	0.75 mm	0.03 in	0603	600 Ohms		1608 Metric	0.8 mm
TDK Corporation MMZ1608B221CTAH0	Signal Line	Surface Mount	500 mA	1	1.6 mm	0.8 mm	0.031 in 0.032 in	0.063 "	-55 C	125 °C	250 mOhm	0.75 mm	0.03 in	0603	220 Ohms		1608 Metric	0.8 mm
TDK Corporation MMZ1005S121CT000	Signal Line	Surface Mount	500 mA	1	1 mm	0.5 mm	0.02 in	0.039 "	-55 C	125 °C	220 mOhm	0.55 mm		0402 (1005 Metric)	120 Ohms	0.022 in
