788792 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

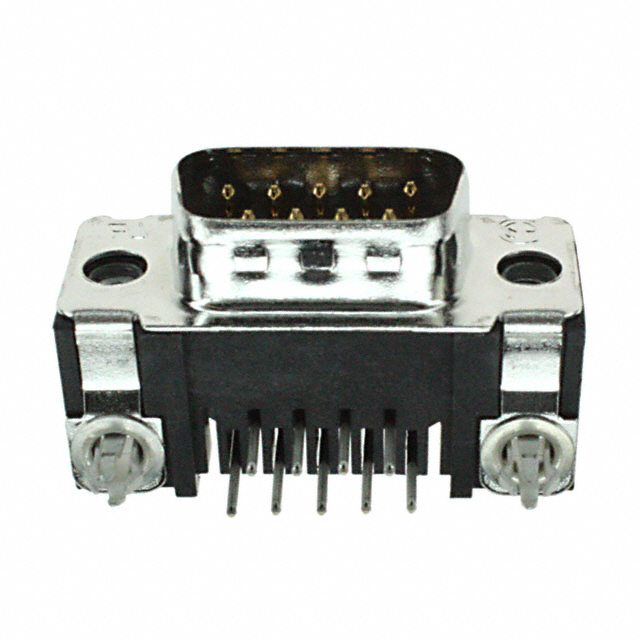

09 HTMSFL PLUG RA 318 (IN,BL) ROHS COMPLIANT: NO
| Part | Voltage Rating | Color | Dielectric Material | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Number of Rows [custom] | Flange Feature | Flange Feature | Connector Type | Contact Finish | Termination | Number of Positions | Current Rating (Amps) | Features | Backset Spacing | Backset Spacing | Connector Style | Contact Type | Material Flammability Rating | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 125 VDC | Black | Polyamide (PA) Nylon | Brass | -55 C | 105 ░C | Right Angle Through Hole | 1 | DE E | 2 | Housing/Shell | 4-40 | Plug Male Pins | Gold | Solder | 9 | 6 A | Board Lock Grounding Indents | 8.08 mm | 0.318 " | D-Sub | Signal | UL94 V-0 | |
 TE Connectivity AMP Connectors | 125 VDC | Black | Polyamide (PA) Nylon | Brass | -55 C | 105 ░C | Right Angle Through Hole | 1 | DE E | 2 | Housing/Shell | 4-40 | Plug Male Pins | Gold | Solder | 9 | 6 A | Board Lock Grounding Indents | 8.08 mm | 0.318 " | D-Sub | Signal | UL94 V-0 | Flash |
