FP40R12 Series

Manufacturer: INFINEON

Catalog

THE FP40R12KT3 IS A PIM THREE PHASE INPUT RECTIFIER IGBT3 - T3 MODULE IN A ECONOPIM™ 2 HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1200 V AND 40 A.

Part	Mounting Type	Package / Case	Current - Collector Cutoff (Max) [Max]	Power - Max [Max]	Configuration	Input	Vce(on) (Max) @ Vge, Ic [Max]	Input Capacitance (Cies) @ Vce	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Current - Collector (Ic) (Max) [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	IGBT Type
INFINEON FP40R12KT3BPSA1	Chassis Mount	Module	5 mA	105 W	Three Phase Inverter	Three Phase Bridge Rectifier	2.3 V	2.5 nF	AG-ECONO2-8	-40 C	125 °C	55 A	1200 V

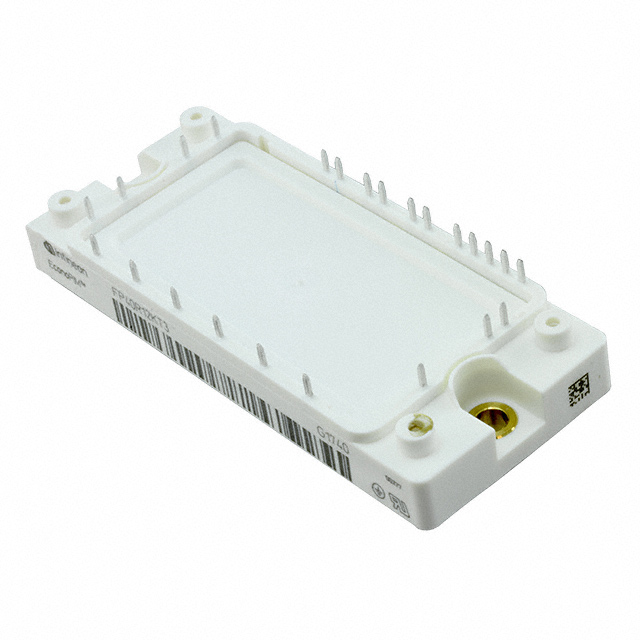

INFINEON FP40R12KT3BOSA1	Chassis Mount	Module	5 mA	210 W	Three Phase Inverter	Standard	2.3 V	2.5 nF	Module	-40 C	125 °C	55 A	1200 V
INFINEON FP40R12KE3GBOSA1	Chassis Mount	Module	1 mA	210 W	Three Phase Inverter	Standard	2.3 V	2.5 nF	Module	-40 C	125 °C	55 A	1200 V	Trench Field Stop
