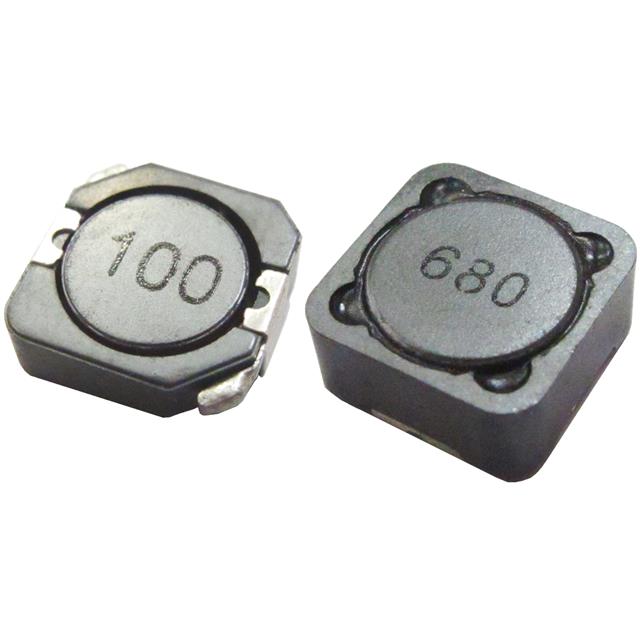

BPAS Series
Manufacturer: Pulse Electronics
Beta
⌘K
POWER INDUCTORS - SMD CHILISIN POWER - INDUCTOR (IND) FERRITE SMD SHIELDED TYPE
| Part | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Package / Case | Inductance | Inductance Frequency - Test | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) [Max] | Tolerance | Current Rating (Amps) | Mounting Type | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Operating Temperature [Max] | Operating Temperature [Min] | DC Resistance (DCR) | Material - Core |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pulse Electronics | 0.374 in | 9.5 mm | 0.295 in | 7.5 mm | Nonstandard | 1.5 µH | 100 kHz | 6.3 A | Shielded | 10 mOhm | 30 % | 8.6 A | Surface Mount | 4.5 mm | 0.177 in | 125 °C | -40 C | ||
Pulse Electronics | 0.374 in | 9.5 mm | 0.295 in | 7.5 mm | Nonstandard | 2.2 µH | 100 kHz | 6.2 A | Shielded | 30 % | 6.3 A | Surface Mount | 4.5 mm | 0.177 in | 125 °C | -40 C | 13 mOhm | Ferrite | |
Pulse Electronics | 0.374 in | 9.5 mm | 0.295 in | 7.5 mm | Nonstandard | 1 µH | 100 kHz | 8.5 A | Shielded | 9 mOhm | 30 % | 11 A | Surface Mount | 4.5 mm | 0.177 in | 125 °C | -40 C |
