6405 Series

Catalog

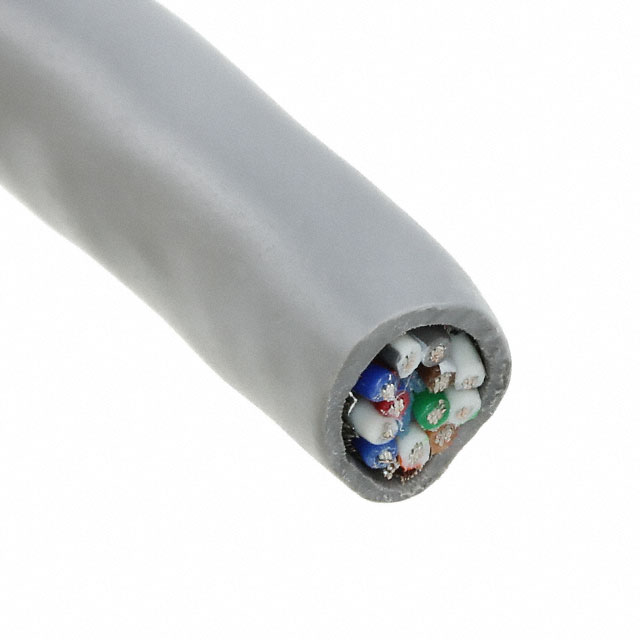

MULTIPAIR CABLE, SHIELDED, 6 PAIR, 24 AWG, 0.23 MM², 100 FT, 30.48 M

Part	Shield Coverage	Shield Material	Conductor Insulation	Jacket Color	Jacket (Insulation) Material	Operating Temperature [Max]	Operating Temperature [Min]	Length [x]	Length [x]	Conductor Material	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Ratings	Conductor Strand [custom]	Conductor Strand [custom]	Shield Type	Features	Wire Gauge	Number of Conductors	Cable Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length	Length
ALPHA WIRE 6405 SL005	65 % 100 %	Aluminum Copper Tinned	Polyethylene (PE)	Slate	Poly-Vinyl Chloride (PVC)	80 °C	-20 ░C	100 ft	30.5 m	Copper Tinned	300 VDC	0.373 in	9.47 mm	UL Style 2919	7	32 AWG	Braid Foil	Drain Wire	24 AWG	12	Multi-Pair	0.035 in	0.889 mm
ALPHA WIRE 6405 SL001	65 % 100 %	Aluminum Copper Tinned	Polyethylene (PE)	Slate	Poly-Vinyl Chloride (PVC)	80 °C	-20 ░C			Copper Tinned	300 VDC	0.373 in	9.47 mm	UL Style 2919	7	32 AWG	Braid Foil	Drain Wire	24 AWG	12	Multi-Pair	0.035 in	0.889 mm	304.8 m	1000 ft
ALPHA WIRE 6405 SL002	65 % 100 %	Aluminum Copper Tinned	Polyethylene (PE)	Slate	Poly-Vinyl Chloride (PVC)	80 °C	-20 ░C			Copper Tinned	300 VDC	0.373 in	9.47 mm	UL Style 2919	7	32 AWG	Braid Foil	Drain Wire	24 AWG	12	Multi-Pair	0.035 in	0.889 mm	152.4 m	500 ft
