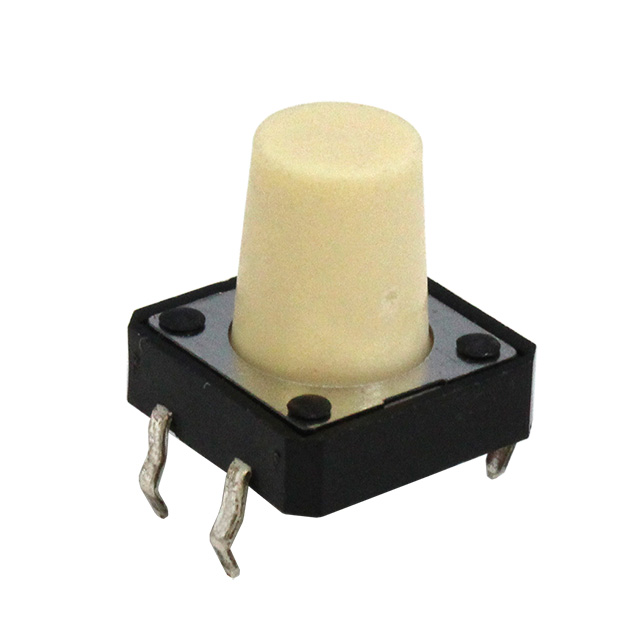

CT1103E Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 50V
| Part | Actuator Material | Switch Travel | Outline [y] | Outline [x] | Switch Function | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Illumination | Mounting Type | Contact Rating @ Voltage | Operating Force | Circuit | Actuator Type | Actuator Height off PCB, Vertical [z] | Actuator Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | Nylon 6/6 Polyamide (PA66) | 0.3 mm | 12 mm | 12 mm | Off-Mom | PC Pin | 85 °C | -40 C | Non-Illuminated | Through Hole | 0.05 A 50 VDC | 180 gf | SPST-NO | Standard | 12 mm | Top Actuated |
