TMC5072 Series
Manufacturer: Analog Devices Inc./Maxim Integrated
Beta
⌘K
MOTOR / MOTION / IGNITION CONTROLLERS & DRIVERS DUAL SILENT STEPPER MOTOR CDRIVER 5 TO 20V, UP TO 1.1A WITH SPI INTERFACE, 256 STEPS, SIXPOINT RAMP CONTROLLER, SPREADCYCLE AND STEALTHCHOP
| Part | Supplier Device Package | Voltage - Supply [Min] | Voltage - Supply [Max] | Step Resolution [Min] | Step Resolution [Max] | Mounting Type | Technology | Output Configuration | Operating Temperature [Min] | Operating Temperature [Max] | Applications | Package / Case | Function | Current - Output | Voltage - Load [Min] | Voltage - Load [Max] | Interface | Motor Type - Stepper | Supplied Contents | Utilized IC / Part | Contents | Type | Embedded | Embedded | Primary Attributes | Secondary Attributes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices Inc./Maxim Integrated | 48-QFN (7x7) | 5.5 V | 26 V | 1 | 0.00390625 | Surface Mount | Power MOSFET | Half Bridge (8) | -40 C | 125 °C | General Purpose | 48-VFQFN Exposed Pad | Driver - Fully Integrated Control and Power Stage | 1.1 A | 5.5 V | 26 V | SPI Step/Direction | Bipolar | ||||||||
 Analog Devices Inc./Maxim Integrated | 48-QFN (7x7) | 3 V | 5.25 V | 1 | 0.00390625 | Surface Mount | Power MOSFET | Half Bridge (8) | -40 C | 125 °C | General Purpose | 48-VFQFN Exposed Pad | Driver - Fully Integrated Control and Power Stage | 1.5 A | 5.5 V | 26 V | SPI UART | Bipolar | ||||||||

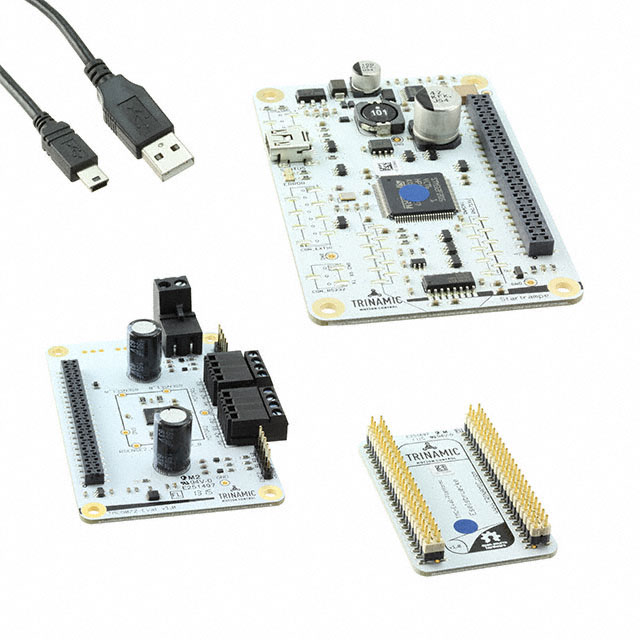

 Analog Devices Inc./Maxim Integrated | Board(s) | TMC5072 | Board(s) | Power Management | 32-Bit MCU | |||||||||||||||||||||

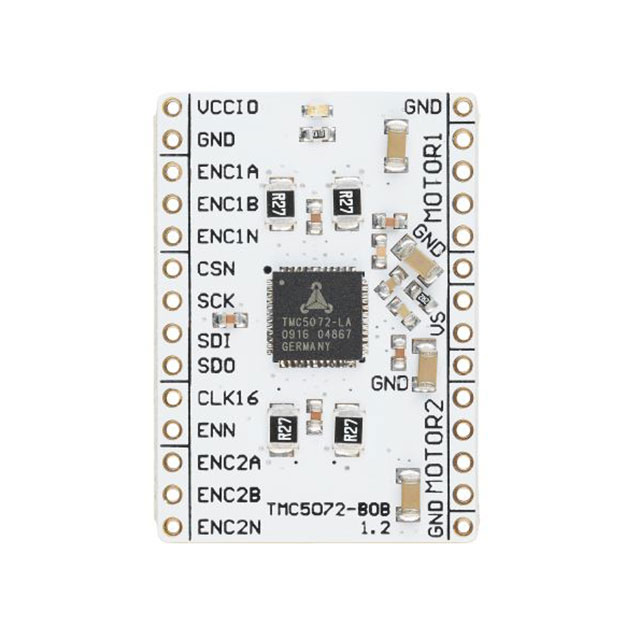

 Analog Devices Inc./Maxim Integrated | Board(s) | TMC5072 | Board(s) | Power Management | Motors (Stepper) | SPI Interface(s) |
