7936A Series
Manufacturer: Belden Inc.
Beta
⌘K

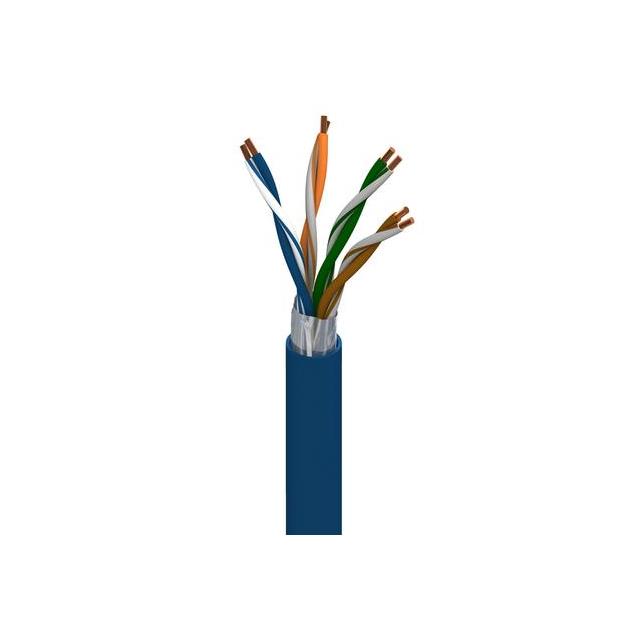

WIRE; F/UTP; 4X2X24AWG; INDUSTRIAL ETHERNET,OUTDOOR; 5E; WIRE; CU
| Part | Shield Coverage | Shield Material | Wire Gauge | Jacket Color | Number of Conductors | Voltage | Conductor Material | Conductor Strand | Features | Conductor Insulation | Conductor Insulation | Jacket (Insulation) Material | Operating Temperature [Max] | Operating Temperature [Min] | Cable Type | Usage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length | Length | Shield Type | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | 24 AWG | Black | 8 | 300 VDC | Copper Bare | Solid | Drain Wire UV Resistant | Polyolefin | PO | Low Smoke Zero Halogen (LSZH) | 75 ░C | -10 °C | Multi-Pair Cat5e | Industrial Network | 6.73 mm | 0.265 in | 304.8 m | 1000 ft | Foil | ||
Belden Inc. | 100 % | Aluminum | 24 AWG | Black | 8 | 300 VDC | Copper Bare | Solid | Drain Wire UV Resistant | Polyolefin | PO | Low Smoke Zero Halogen (LSZH) | 75 ░C | -10 °C | Multi-Pair Cat5e | Industrial Network | 6.73 mm | 0.265 in | Foil | 2000 ft | 609.6 m |
