845-092 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 92POS 0.100

...

Part	Termination Rows [custom]	Material - Insulation	Number of Rows [custom]	Mounting Type	Contact Type	Card Thickness [Max]	Card Thickness [Min]	Gender	Number of Positions	Pitch	Pitch	Termination	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Color	Card Type	Read Out	Number of Positions/Bay/Row	Operating Temperature [Max]	Operating Temperature [Min]	Features	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 845-092-560-808	2	Diallyl Phthalate (DAP)	2	Board Edge Straddle Mount	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	92	0.1 "	2.54 mm	Solder	Copper Alloy	0.25 Ám	10 Áin	Gold	Green	Non Specified - Dual Edge	Dual	46	125 °C	-40 C	Card Extender	4-40 Threaded Insert Top Mount Opening
EDAC Inc. 845-092-544-808	2	Diallyl Phthalate (DAP)	2	Through Hole	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	92	0.1 "	2.54 mm	Wire Wrap	Copper Alloy	0.25 Ám	10 Áin	Gold	Green	Non Specified - Dual Edge	Dual	46	125 °C	-40 C		4-40 Threaded Insert Top Mount Opening
EDAC Inc. 845-092-541-507	2	Diallyl Phthalate (DAP)	2	Through Hole	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	92	0.1 "	2.54 mm	Wire Wrap	Copper Alloy	0.25 Ám	10 Áin	Gold	Green	Non Specified - Dual Edge	Dual	46	125 °C	-40 C		M3 Threaded Insert Top Mount Opening

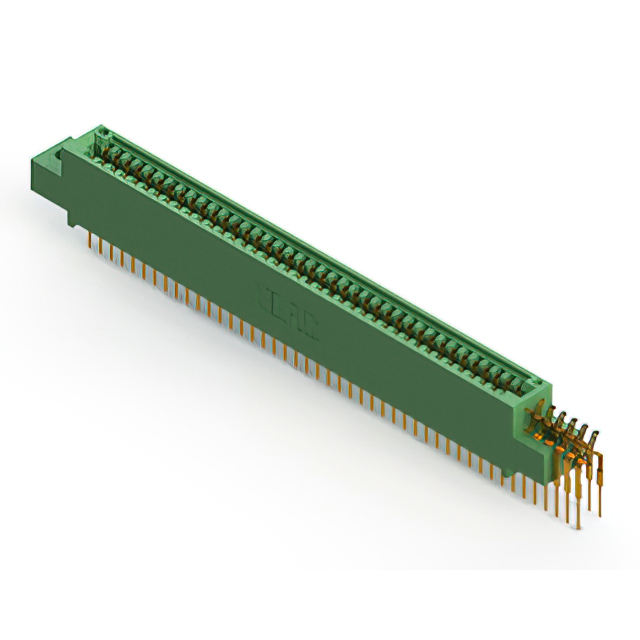

EDAC Inc. 845-092-524-502	2	Diallyl Phthalate (DAP)	2	Through Hole	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	92	0.1 "	2.54 mm	Solder	Copper Alloy	0.25 Ám	10 Áin	Gold	Green	Non Specified - Dual Edge	Dual	46	125 °C	-40 C			3.25 mm	0.128 "
EDAC Inc. 845-092-541-208	2	Diallyl Phthalate (DAP)	2	Through Hole	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	92	0.1 "	2.54 mm	Wire Wrap	Copper Alloy	0.25 Ám	10 Áin	Gold	Green	Non Specified - Dual Edge	Dual	46	125 °C	-40 C		4-40 Flush Mount Threaded Insert Top Opening

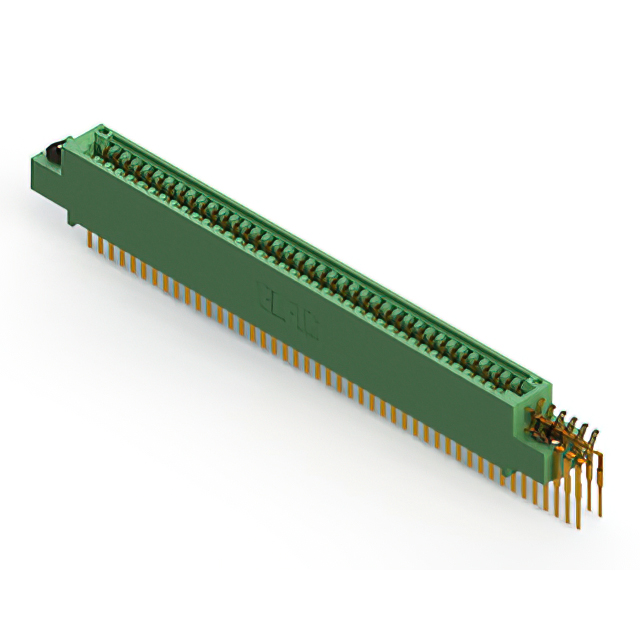

EDAC Inc. 845-092-520-503	2	Diallyl Phthalate (DAP)	2	Through Hole	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	92	0.1 "	2.54 mm	Solder	Copper Alloy	0.25 Ám	10 Áin	Gold	Green	Non Specified - Dual Edge	Dual	46	125 °C	-40 C		Floating Bobbin Top Mount Opening	2.95 mm	0.116 "

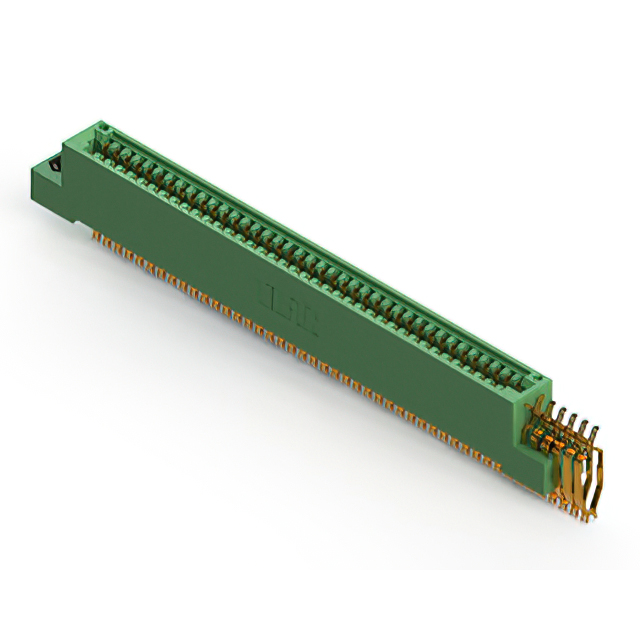

EDAC Inc. 845-092-555-207	2	Diallyl Phthalate (DAP)	2	Board Edge Straddle Mount	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	92	0.1 "	2.54 mm	Solder	Copper Alloy	0.25 Ám	10 Áin	Gold	Green	Non Specified - Dual Edge	Dual	46	125 °C	-40 C	Card Extender	Flush Mount M3 Threaded Insert Top Opening

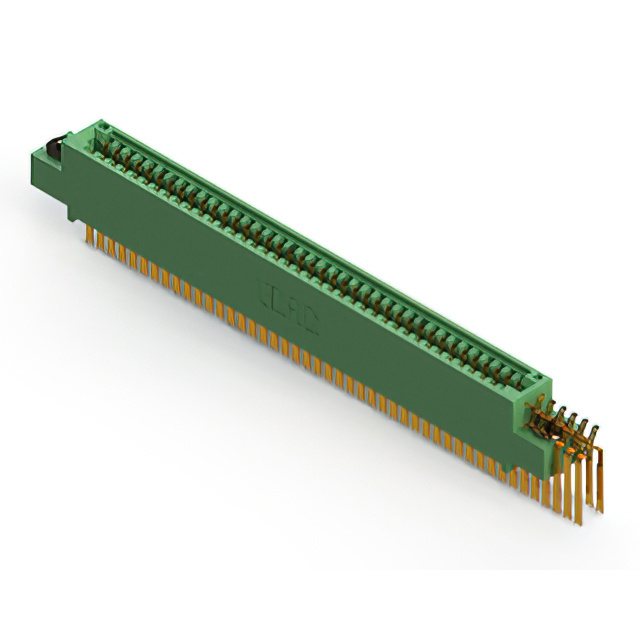

EDAC Inc. 845-092-500-503	2	Diallyl Phthalate (DAP)	2	Through Hole	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	92	0.1 "	2.54 mm	Solder Eyelet(s)	Copper Alloy	0.25 Ám	10 Áin	Gold	Green	Non Specified - Dual Edge	Dual	46	125 °C	-40 C		Floating Bobbin Top Mount Opening	2.95 mm	0.116 "
EDAC Inc. 845-092-559-503	2	Diallyl Phthalate (DAP)	2	Right Angle Through Hole	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	92	0.1 "	2.54 mm	Solder	Copper Alloy	0.25 Ám	10 Áin	Gold	Green	Non Specified - Dual Edge	Dual	46	125 °C	-40 C		Floating Bobbin Top Mount Opening	2.95 mm	0.116 "

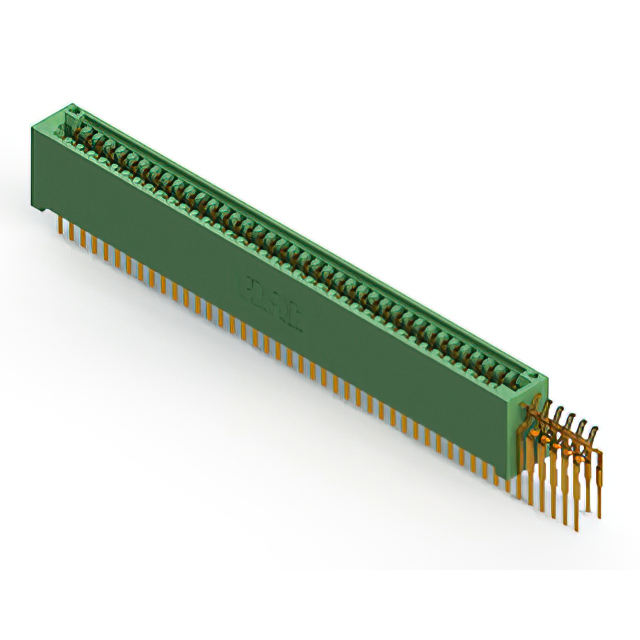

EDAC Inc. 845-092-520-201	2	Diallyl Phthalate (DAP)	2	Through Hole	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	92	0.1 "	2.54 mm	Solder	Copper Alloy	0.25 Ám	10 Áin	Gold	Green	Non Specified - Dual Edge	Dual	46	125 °C	-40 C
